Product Details:
Payment & Shipping Terms:
|
Weight: | 325kg | Certification: | CE |
---|---|---|---|
Type: | Compressor | Warranty: | 1 Year |
Application: | Refrigeration Parts | ||
Highlight: | semi hermetic reciprocating compressor,air cooled condensing unit |
1. Product introduction
Flexible
High efficiency profile outstandingly efficient thanks to
2. Product parameter(Specification)

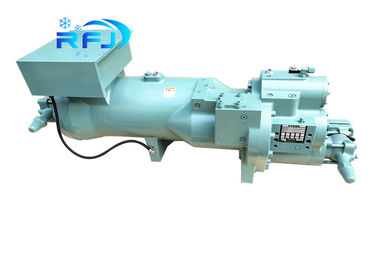

screw compressor | ||
Model | CFH Displ 60 HZ | Motor HP |
CSH6553-50 | 165 | 50 |
CSH6563-60 | 205 | 60 |
CSH7553-70 | 238 | 70 |
CSH7563-80 | 274 | 80 |
CSH7573-90 | 311 | 90 |
CSH8553-110 | 380 | 110 |
CSH8563-125 | 433 | 125 |
CSH8573-140 | 495 | 140 |
CSH9553-180 | 645 | 180 |
CSH9563-210 | 742 | 210 |
CSH9573-240 | 844 | 240 |
CSH9583-280 | 971 | 280 |
CSH9593-300 | 1098 | 300 |
3.Production details
SI | IP | |
Displacement(2900 RPM 50 HZ) | 137 m³/h | 4841 CFH |
Displacement(3500 RPM 60 HZ) | 165 m³/h | 5830 CFH |
Weight | 325 kg | 717 lb |
Max,pressure(LP/HP) | 19/28 bar | 275/400 psi |
Connection suction line | 54mm-2 1/8” | 54mm-2 1/8” |
Connection discharge line | 42mm-1 5/8” | 42mm-1 5/8” |
Motor Voltage(more on request) | 380-415V PW-3-50HZ | 440-480V PW-3-60HZ UL |
Max operating current | 86.0 A | 86.0 A |
Winding Radio | 50/50 | 50/50 |
Starting current (Rotor locked) | 218.0 A D/411.0 A DD | 218.0 A D/411.0 A DD |
4.FAQ
1). What is your MOQ?
---Our MOQ is usually 1 set.
2). What is the price?
---The price is depends on the quantity
3). What is your delievery time?
---The time of delievery is 3-10 working days after payment.
4).What is your main products?
1.Scroll:Copeland, performer,hitachi,Daikin,Sanyo
2.Piston:Maneurop MT,NTZ,MTZ series.
3.Semi-hermetic:Copeland,
4.Freezer compressor:Tecumseh
5.Rotary compressor:Toshiba,Panasonic
