| Model Number: | 4EC-4.2Y-40S,4EES-4Y-40S |
| MOQ: | 1 Piece |
| Price: | discussed |
| Delivery Time: | 5-7 Days |
| Payment Terms: | T/T,Western Union,MoneyGram |

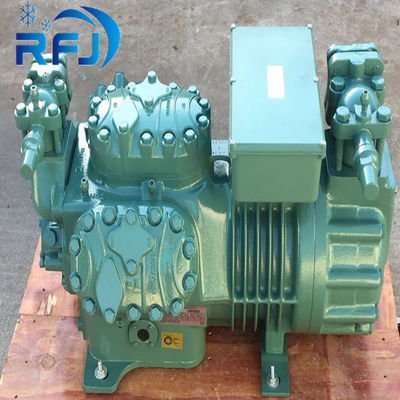

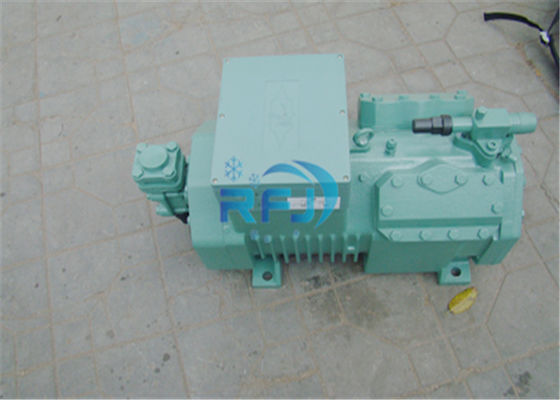

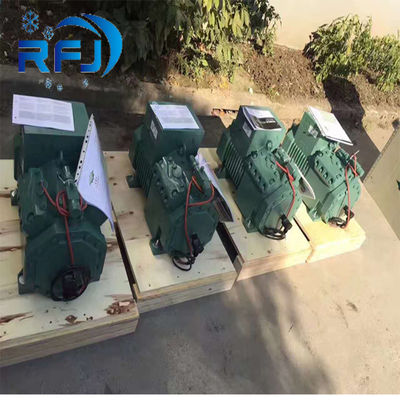

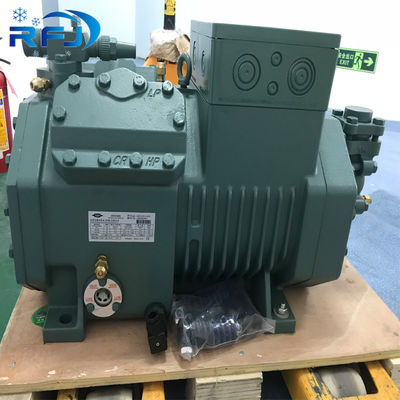

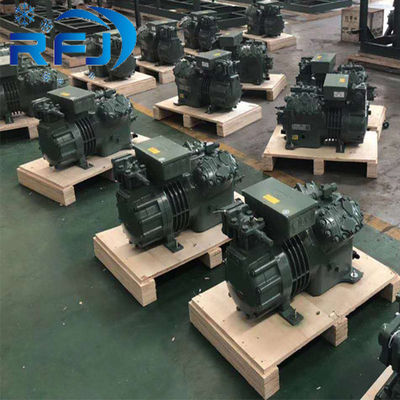

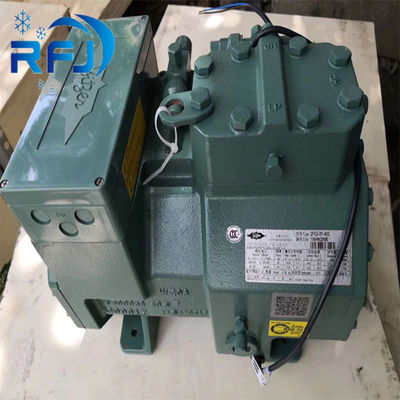

4HP High Quality Refrigeration Unit Compressor (4EC-4.2Y) / 4EES-4Y
| Parameter | SI Units | IP Units |
|---|---|---|
| Displacement (1450 RPM 50Hz) | 95.3 m³/h | 3365.5 CFH |
| Displacement (1750 RPM 60Hz) | 115.02 m³/h | 4061.9 CFH |
| No. of cylinder x bore x stroke | 6 x 65 mm x 55 mm | 6 x 2.56 inch x 2.17 inch |
| Weight | 213 kg | 470 lb |
| Max. pressure (LP/HP) | 19 / 32 bar | 275 / 464 psi |
| Connection suction line | 54 mm - 2 1/8" | 54 mm - 2 1/8" |
| Connection discharge line | 35 mm - 1 3/8" | 35 mm - 1 3/8" |
| Oil type R134a/R407C/R404A/R507A/R407A/R407F | BSE32(Standard) / R134a tc>70°C: BSE55 (Option) | BSE32(Standard) / R134a tc>155°F: BSE55 (Option) |
| Oil type R22 (R12/R502) | B5.2(Option) | B5.2(Option) |
| Component | SI Units | IP Units |
|---|---|---|
| Motor protection | SE-B2 | SE-B2 |
| Enclosure class | IP54 (Standard), IP66 (Option) | IP54 (Standard), IP66 (Option) |
| Vibration dampers | Standard | Standard |
| Oil charge | 4.75 dm³ | 167.2 fl oz |
| Parameter | SI Units | IP Units |
|---|---|---|
| Motor version | 2 | 2 |
| Motor voltage (more on request) | 380-420V PW-3-50Hz | 440-480V Y-3-60Hz UL |
| Max operating current | 46.4 A | 46.4 A |
| Winding ratio | 50/50 | 50/50 |
| Starting current (Rotor locked) | 141.0 A Y / 233.0 A YY | 245.0 A |
| Measurement | SI Units | IP Units |
|---|---|---|
| Sound power level (-10°C / 45°C) | 79.3 dB(A) @50Hz | 81.8 dB(A) @60Hz |
| Sound power level (-35°C / 40°C) | 85.0 dB(A) @50Hz | 87.5 dB(A) @60Hz |
| Sound pressure level @ 1m (-10°C / 45°C) | 71.3 dB(A) @50Hz | 73.8 dB(A) @60Hz |
| Sound pressure level @ 1m (-35°C / 40°C) | 77 dB(A) @50Hz | 79.5 dB(A) @60Hz |
| Sound power level (-10°C / 45°C) R134a | 77.3 dB(A) @50Hz | 79.8 dB(A) @60Hz |
| Sound pressure level @ 1m (-10°C / 45°C) R134a | 69.3 dB(A) @50Hz | 71.8 dB(A) @60Hz |
|
|
