Product Details:
Payment & Shipping Terms:
|
| Type: | Refrigeration Compressor | Application: | Refrigeration Parts |
|---|---|---|---|
| Certification: | ROHS, CE | Power: | 9 HP |
| Cylinder: | 4 | Weight: | 91 KG |
| Refrigerant: | R404 R407C R134A | Color: | Green |
| Warranty: | 1 Year | Power Source: | AC POWER |
| Highlight: | semi hermetic reciprocating compressor,air cooled condensing unit |
||
1. Product introduction

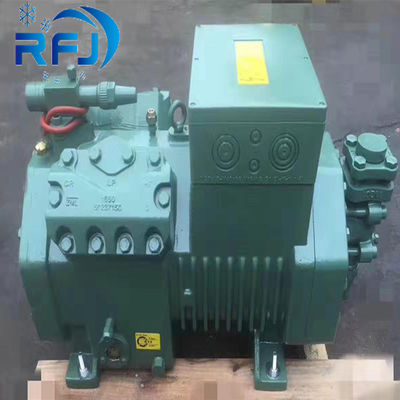

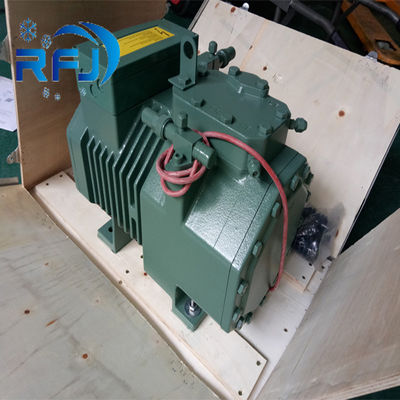

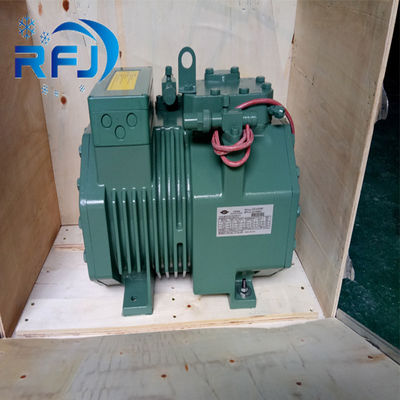

The ECOLINE 4CES-9Y is the creative advancement of the proven, robust and powerful semi-hermetic reciprocating compressor 4CC-9.2Y from .
It combines high efficiency, smooth running, a wide range of applications, flexibility in refrigerant selection, solid design and high reliability.
The ECOLINE 4CES-9Y replace its predecessor 4CC-9.2Y with the same connection sizes
2. Product parameter(Specification)
| Model | Displacement @1450r/min | Cylinders | Oil charge | Weight | Discharge line | Suction line | ||
| m³/h | D/m³ | Kg | mm | in | mm | in | ||
| 2KES-05Y | 4.06 | 2 | 1 | 43 | 12 | 1/2" | 16 | 5/8" |
| 2JES-07Y | 5.21 | 2 | 1 | 43 | 12 | 1/2" | 16 | 5/8" |
| 2HES-1Y | 6.51 | 2 | 1 | 44 | 12 | 1/2" | 16 | 5/8" |
| 2HES-2Y | 6.51 | 2 | 1 | 45 | 12 | 1/2" | 16 | 5/8" |
| 2GES-2Y | 7.58 | 2 | 1 | 45 | 12 | 1/2" | 16 | 5/8" |
| 2FES-2Y | 9.54 | 2 | 1 | 45 | 12 | 1/2" | 16 | 5/8" |
| 2FES-3Y | 9.54 | 2 | 1 | 47 | 12 | 1/2" | 16 | 5/8" |
| 4FES-3Y | 18.1 | 4 | 2 | 82 | 16 | 5/8” | 22 | 7/8” |
| 4FES-5Y | 18.1 | 4 | 2 | 86 | 16 | 5/8” | 22 | 7/8” |
| 4EES-4Y | 22.7 | 4 | 2 | 84 | 16 | 5/8” | 28 | 1 1/8” |
| 4EES-6Y | 22.7 | 4 | 2 | 86 | 16 | 5/8” | 28 | 1 1/8” |
| 4DES-5Y | 26.8 | 4 | 2 | 86 | 22 | 7/8” | 28 | 1 1/8” |
| 4DES-7Y | 26.8 | 4 | 2 | 89 | 22 | 7/8” | 28 | 1 1/8” |
| 4CES-6Y | 32.5 | 4 | 2 | 91 | 22 | 7/8” | 28 | 1 1/8” |
| 4CES-9Y | 32.5 | 4 | 2 | 91 | 22 | 7/8” | 28 | 1 1/8” |
| 4VES-6Y | 34.7 | 4 | 2.6 | 129 | 22 | 7/8” | 28 | 1 1/8” |
| 4VES-7Y | 34.7 | 4 | 2.6 | 129 | 22 | 7/8” | 28 | 1 1/8” |
| 4VES-10Y | 34.7 | 4 | 2.6 | 139 | 22 | 7/8” | 28 | 1 1/8” |
| 4TES-8Y | 41.3 | 4 | 2.6 | 134 | 28 | 1 1/8” | 35 | 1 3/8” |
| 4TES-9Y | 41.3 | 4 | 2.6 | 134 | 28 | 1 1/8” | 35 | 1 3/8” |
| 4TES-12Y | 41.3 | 4 | 2.6 | 414 | 28 | 1 1/8” | 35 | 1 3/8” |
| 4PES-10Y | 48.5 | 4 | 2.6 | 139 | 28 | 1 1/8” | 35 | 1 3/8” |
| 4PES-12Y | 48.5 | 4 | 2.6 | 139 | 28 | 1 1/8” | 35 | 1 3/8” |
| 4PES-15Y | 48.5 | 4 | 2.6 | 147 | 28 | 1 1/8” | 42 | 1 5/8” |
| 4NES-12Y | 56.2 | 4 | 2.6 | 141 | 28 | 1 1/8” | 35 | 1 3/8” |
| 4NES-14Y | 56.2 | 4 | 2.6 | 141 | 28 | 1 1/8” | 35 | 1 3/8” |
| SI | IP | |
| Displacement(1450 RPM 50 HZ) | 32.5 m³/h | CFH |
| Displacement(1750 RPM 60 HZ) | 32.5 m³/h | CFH |
| No.of cylinder * bore * stroke | 4*46mm*39.3mm | 4*1.63inch*1.55inch |
| Weight | 91 kg | 210lb |
| Max,pressure(LP/HP) | 19/32 bar | psi |
| Connection suction line | 28mm-1 1/8” | 28mm-1 1/8” |
| Connection discharge line | 22mm-7/8” | 22mm-7/8” |
| Motor version | 2 | 2 |
| Starting current(Rotor locked) | 35.1A | 35.1A |
| Motor voltage(more on request) | 380-420V Y-3-50 HZ | 440-480V Y-3-60 HZ UL |
| Max operating current | 25.2 A | 25.2 A |
