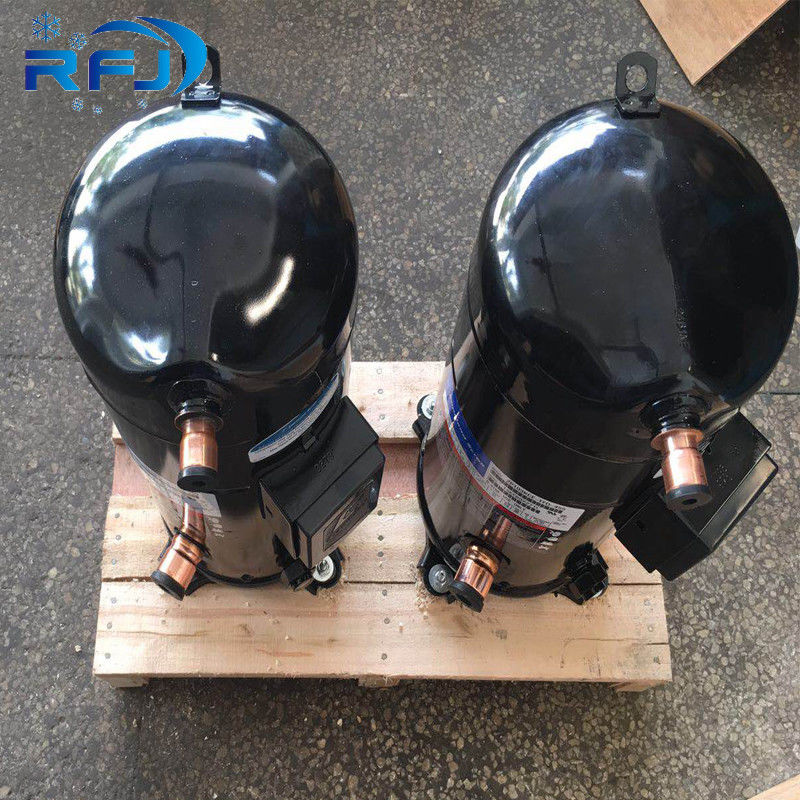

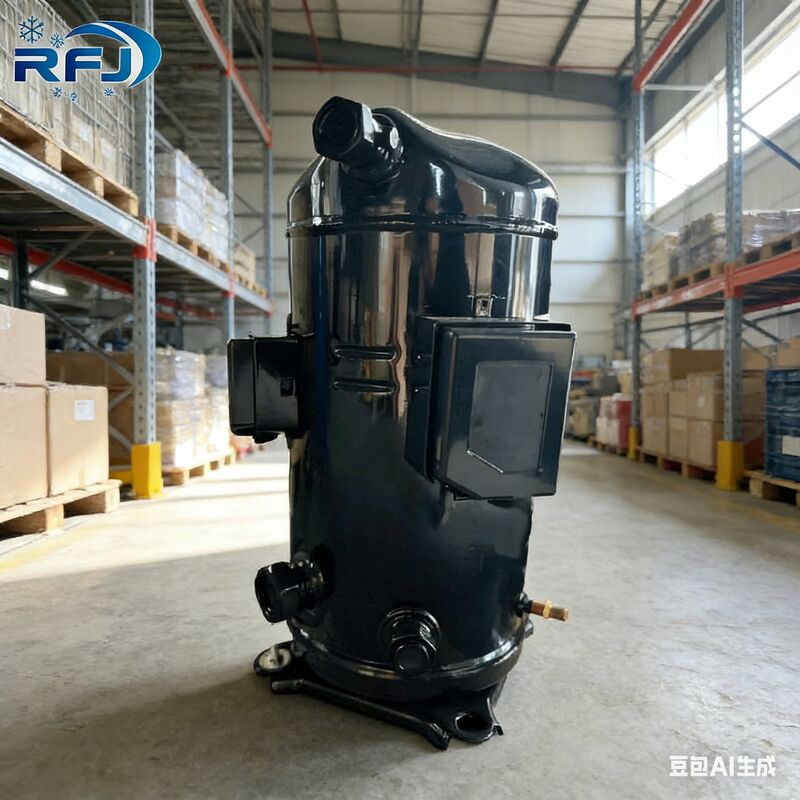

Refrigeration Freezer 5HP Copeland Scroll Compressor ZB38KQE-TFD

Refrigeration Freezer 5HP Copeland Scroll Compressor ZB38KQE-TFD
Refrigeration Freezer 5HP Copeland Scroll Compressor ZB38KQE-TFD
video play

Large Image :  Refrigeration Freezer 5HP Copeland Scroll Compressor ZB38KQE-TFD

Product Details:
Place of Origin: Thailand
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: discussed
Packaging Details: wood packaging
Delivery Time: 1-5DAYS
Payment Terms: T/T, D/A
Supply Ability: 1000PCS
Contact Now
Detailed Product Description
Brand Name: Copeland Certification: CE
Model Number: ZB38KQE-TFD Application: Refrigeration Parts
Conditions: Brand New Nominal Power: 5HP
Dimensions: 242x242x383mm Connection Code:: 558 524 Brazing / 523 559 Rotalock
Weight (NW/GW): 41KG Type: Refrigeration Compressor
High Light:

ZB38KQE-TFD

,

5HP Refrigeration Freezer Compressor

high quality 5HP Copeland scroll compressor ZB38KQE-TFD for refrigeration freeze



Brand Copeland
Model no. ZB38KQE-TFD
Production Capacity 2000 Piece/Pieces per Month
Year 2020
Certification VDE, TUV and CE
Place of origin Thailand
Nominal power(hp) 5
Air volume(m3/hr) 14.50
Nominal capacity(kw) 8.20
Refrigerant R22/R404A/R134A
Suction pipe OD 1/2
Discharge pipe OD 7/8
L 242
W 242
H 457
Foundation dimension 190*190(8.5)
N.W.(kg) 38
G.W.(kg) 41


1. Product introduction

1.For Freezer Cooling Room -18C

2.Horsepower:5HP

3.Model:ZB38KQE-TFD-558

4.Using gas:R404a

5.Voltage:380V/50HZ/3PH,460V/3PH/60HZ



2. Product parameter(Specification)

R22.50HZ

Model NO Cindensate Temperature The evaporation temperature ℃(R22/50HZ) Sets/Pallet
-12 -10 -5 0 5 10
ZB15KQ-PFJ 40 3300 3550 4350 5200 6250 7400 16
ZB21KQ-PFJ 40 4650 5050 6200 7450 8850 10500 16
ZB26KQ-PFJ 40 5100 5500 6800 8200 9850 11700 16
ZB15KQ-TFD 40 3300 3550 4350 5200 6250 7400 16
ZB21KQ-TFD 40 4650 5050 6200 7450 8850 10500 16
ZB26KQ-TFD 40 5100 5500 6800 8200 9850 14070 16
ZB29KQ-TFD 40 6230 6790 8290 9970 11800 14400 16
ZB38KQ-TFD 40 7300 8000 9950 12200 14650 17300 16
ZB45KQ-TFD 40 9400 10200 12400 14900 17800 21000 16
ZB48KQ-TFD 40 10390 11285 13700 16436 19574 23199 16
ZB50KQ-TFD 40 10600 11660 14350 17400 20800 24700 12
ZB58KQ-TFD 40 11800 12950 16100 19600 19574 28000 12
ZB66KQ-TFD 40 13950 15100 18400 22200 26500 31500 12
ZB76KQ-TFD 40 16400 17800 21700 28500 30500 35500 12
ZB88KQ-TFD 40 18800 20400 24900 30000 36000 42000 12
ZB95KQ-TFD 40 19500 21400 26500 32000 38200 45200 12
ZB114KQ-TFD 40 23200 25500 31700 38500 41600 54500 12



R404.50HZ

Model NO Cindensate Temperature The evaporation temperature ℃(R404/50HZ) Sets/Pallet
-20 -15 -10 -5 0 5
ZB15KQE-PFJ 40 2430 3000 3700 4450 5350 6350 16
ZB19KQE-PFJ 40 3050 3750 4550 5450 6500 7700 16
ZB21KQE-PFJ 40 3700 4550 5000 6600 7900 9350 16
ZB26KQE-PFJ 40 4300 5250 6350 7650 9100 10800 16
ZB15KQE-TFD 40 2430 3000 3700 4450 5350 6350 16
ZB19KQE-TFD 40 3050 3750 4550 5450 6500 7700 16
ZB21KQE-TFD 40 3700 4550 5000 6600 7900 9350 16
ZB26KQE-TFD 40 4300 5250 6350 7650 9100 10800 16
ZB29KQE-TFD 40 5040 6160 7460 8960 10680 12650 16
ZB38KQE-TFD 40 6250 7700 9300 11200 13350 15800 16
ZB45KQE-TFD 40 7400 9050 10950 13150 15700 18600 16
ZB48KQE-TFD 40 8150 9969 12074 14500 17287 20471 16
ZB50KQE-TFD 40 8250 10500 12900 1560 18600 22000 12
ZB58KQE-TFD 40 9250 11700 14400 17500 21000 24900 12
ZB66KQE-TFD 40 11100 13500 16400 19600 23400 27600 12
ZB76KQE-TFD 40 13300 16100 19400 23300 27800 33000 12



3. Product feature and applicatio

Refrigerant Freq (Hz) Phase Voltage Application

R-404A HFC 60 3 460 Medium Temperature

R-507 HFC 60 3 460

R-507 HFC 50 3 380/420



Refrigeration Freezer 5HP Copeland Scroll Compressor ZB38KQE-TFD 0

Refrigeration Freezer 5HP Copeland Scroll Compressor ZB38KQE-TFD 1Refrigeration Freezer 5HP Copeland Scroll Compressor ZB38KQE-TFD 2Refrigeration Freezer 5HP Copeland Scroll Compressor ZB38KQE-TFD 3
