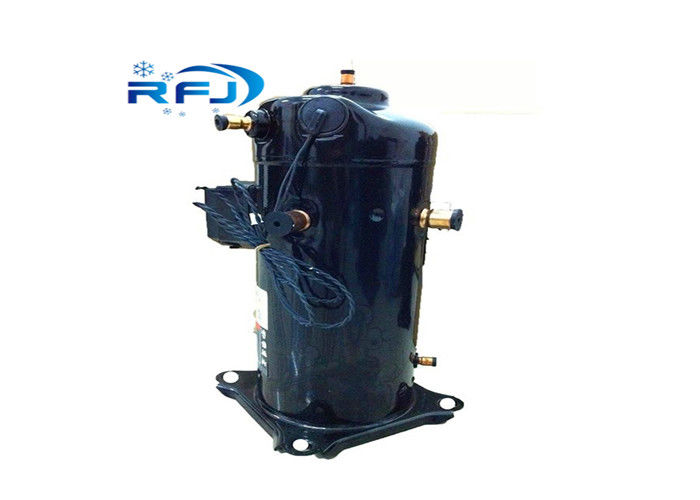

9.1KW 3.5HP Hermetic Scroll Compressor ZRD42KC-PFJ-532
Hermetic Scroll Compressor
,9.1KW Hermetic Scroll Compressor
,ZRD42KC-PFJ-532
Hermetic Scroll Digital Compressor ZRD42KC-PFJ-532
Technical data
Horse Power: 3.5HP
Cooling Capacity: 9.1KW
COP: 3.0W/W
Displacement: 6.9m3/h
Oil Quantity: 1.24L
Refrigerant: R22
Length: 243mm
Width: 243mm
Height: 4645mm
Net weight: 31kg
Gross weight: 36kg
Packing details: wooden package
HS code: 8414301900
How it Works
The digital scroll compressor unloads by taking advantage of the Scroll compressor''s axial compliance. All Scroll compressors are designed so that the compression elements can separate axially a few thousands of an inch. The ZPD34-ZPD54K5, ZPD61-ZPD83KC, ZPD91KC, ZPD104KCE, ZPD122KCE, and ZRD36-81KC compressors described in this bulletin use a lift piston mechanism to separate the scrolls during the unloaded state. When the solenoid is energized the volume on top of the piston is vented to the low side allowing the piston and fixed scroll assembly to move axial away from the orbiting scroll. When the solenoid is de-energized the piston is forced down and the scrolls are loaded axially. The ZPD103KC, ZPD120KC, ZPD137-182KC and ZRD94-125KC digital scroll compressors employ a solenoid valve that is mounted on the side of the compressor that vents the intermediate cavity to the low side of the compressor during the unloaded state.
| Product name | digital scroll compressor |
| Model |
ZRD42KC-PFJ-532 |
| Brand | |
| Application | HVAC |
| MOQ | 1 piece |
