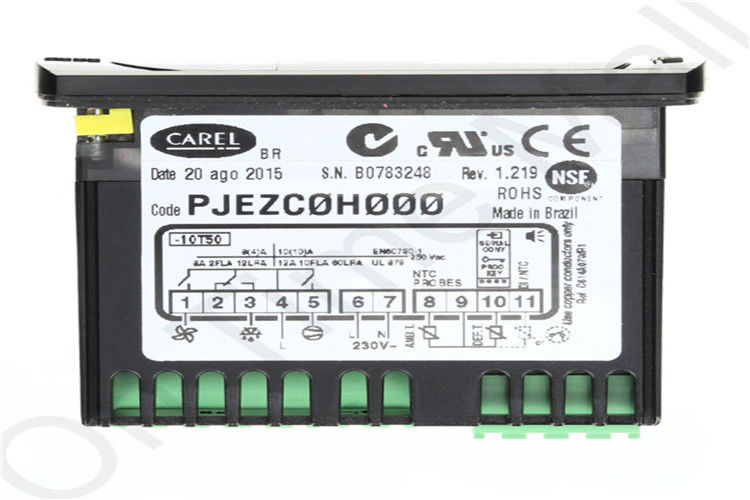

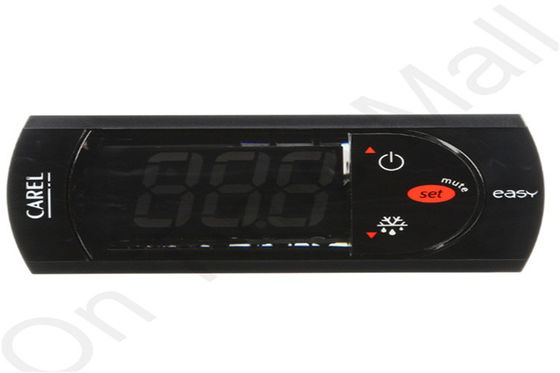

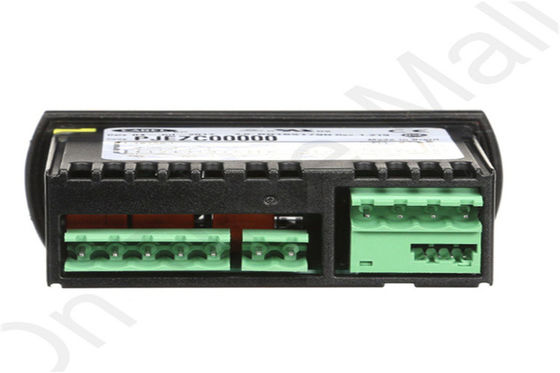

12Vac Air Conditioner Microcomputer Temperature Controller Carel PJEZC0H000

We have all kinds of Carel temperature controls for different needs


PJ general type (PJ refrigeration/heating)

12 vac power

PJ32V6EL00 12Vac, 1 output 8A, 1 PTC calibration sensor

230 vac power

PJ32V6E000 1 relay: 8A, 1 PTC control sensor

PJ32V0P000 1 relay: 16A, 2 NTC control sensors, buzzer, programming key, pluggable terminal row

PJ32V6P000 1 relay: 16A, 2 PTC control sensors, buzzer, programming key, pluggable terminal row

PJ32V0H000 1 relay: 2Hp, 2 NTC control sensors, programming keys, pluggable terminal row

PJ32W00000 2 relay: 8A, 2 NTC control sensor, programming key, pluggable terminal row

PJ32w100002 relay: 8A, 1 NTC control sensor, 1 switch quantity input, programming key, pluggable terminal row

PJ32W0H000 2 relays: 1 (5A), 1 (2Hp), 2 NTC control sensors, programming keys, pluggable terminal row

PJ32W6H000 2 relays: 1 (5A), 1 (2Hp), 2 PTC control sensors, programming keys, pluggable terminal row

PJ32Z00000 3 relays: 1 (8A), 1 (5A), 2 NTC control sensors, programming keys, pluggable terminal row

PJ32Z60000 3 relays: 1 (8A), 1 (5A), 2 NTC control sensors, programming keys, pluggable terminal row

PJ neutral zone

230 vac power

PJNZW0H000 2 relays: 1 (5A), 1 (2Hp), 2 NTC sensors, neutral zone management

PHNZ0J0005 2 relay: 1 (5A), 1 (2Hp), 2 NTC sensors, neutral zone management, PJNZW0H000 10 per pack

powerline

12Vac power supply, basic configuration

PJ32S0FL00 1 relay: compressor (2Hp), 1 NTC sensor - normal temperature

PJ32Y0FL00 2 relay: compressor (2Hp), defrost (maximum 12A), 2 NTC sensors - cryogenic static units

230Vac power supply, basic configuration

PJ32S0F000 1 relay: compressor (2Hp), 1 NTC sensor - normal temperature

PJ32Y0F000 2 relays: compressor (2Hp), defrost (5A), 2 NTC sensors, screw terminal subrow - cryogenic static units

230Vac power supply, advanced configuration

PJ32S0H000 1 relay: compressor (2Hp), 1 NTC sensor - normal temperature

PJ32S2H000 2 relay: compressor (2Hp), alarm, 1 NTC sensor, 1 switching quantity input - normal temperature

PJ32Y0H000 2 relays: compressor (2Hp), defrost (maximum 12A), 2 NTC sensors, pluggable terminal row - cryogenic static units

115Vac power supply, advanced configuration

PJ32S1P600 1 relay: compressor (16Hp), 1 NTC sensor, 1 switch quantity input, buzzer, green LED- room temperature

Pj32s2h1002 relay: compressor (2Hp), alarm, 1 NTC sensor, 1 switching quantity input - normal temperature.

PJ32Y0H100 2 relays: compressor (2Hp), defrost (12A maximum), 2 switching quantity input - normal temperature.

Note: advanced configuration features simple connection, quick installation and detachable terminals.

The 3/4hp relay is a 2Hp relay at 250Vac voltage.

230Vac power, plug-in C SPLIT tape distribution board, input/output board and terminal display screen.
