Product Details:
Payment & Shipping Terms:
|
| Piston Type: | Scroll | Power Source: | AC Power |
|---|---|---|---|
| Configuration: | Stationary | Drive Mode: | Electric |
| Horse Power: | 9HP | Temperature: | Med Temperature |
| Refrigerant: | R404A/R134a | Sightglass: | Compressor With Sightglass |
| Qty/one Pallet: | 16pcs | Color: | Black |
| Connections: | Rotolock | L*W*H: | 264*284*546 |
| Net Weight: | 59KG | Gross Weight: | 62KG |
| High Light: | Rotolock 380V Copeland Scroll Compressor,R410A 9HP Copeland Scroll Compressor,ZB66KCE-TFD-559 Commercial Fridge Compressor |
||

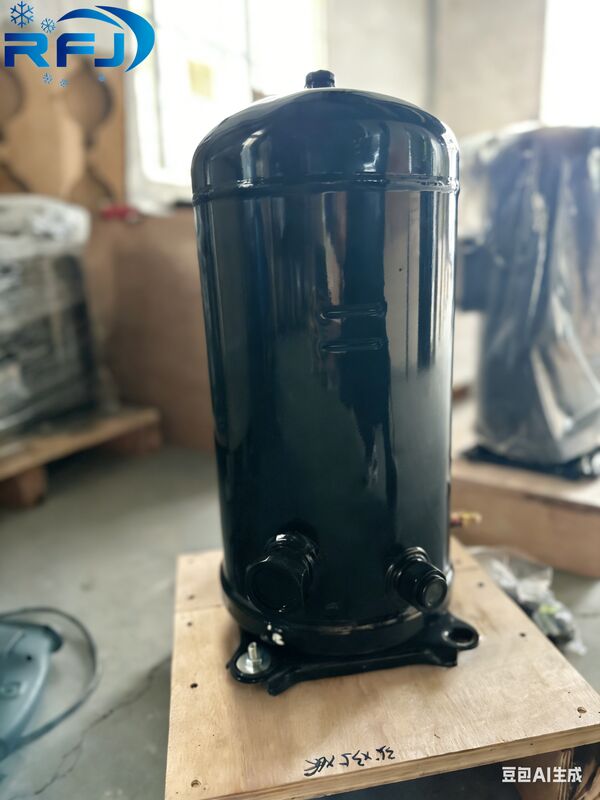

R410A 380V 9HP Brand New Copeland Scroll Compressor ZB66KCE-TFD-559
Specification:
Displacement(m³/HR): 25.7
Nominal hp: 9
Crankcase Heater(W):70
Height: 54.6cm
Oil Charge:3.25L
Phase: 3
Gross Weight: 62kg
Power Source: AC Power
Refrigerant: R410a
Application: High temperature
HS code: 8414301900
| Product name | Hermetic Scroll Compressor |
| Model | ZB66KCE-TFD-559 |
| Brand | Copeland |
| Refrigerant | R410A |
| MOQ | 1 piece |
| Application | Heat pump and Air Conditioning |
Package:
Based on the product size and weight, the package is standard wooden package.
Shipping:
By air, sea or any express, we can arrange for you.
FAQ:
1. What are your products?
Our main compressor lines are :
· Bitzer compressors,
· Copeland scroll compressors: CR,VR, ZB ,ZR, ZF,ZP SERIES
· Copeland Semi-hermetic compressors: DL,D2,D4,D6,D8 SERIES
· Performer compressors: SM, SZ, SH SERIES
· Commercial compressors: FR, SC SERIES
· Maneurop piston compressors:MT, MTZ, NTZ, MPZ SERIES
Secop compressor, Carrier (Carlyle) compressor
Hitachi compressor,Daikin compressor, Sanyo compressor
Tecumseh compressor, LG compressor, Mitsubishi compressor,
Toshiba compressor, Panasonic compressor, Embraco Aspera compressor
Please feel free to contact US if you have any inquiry about the compressor, spare part or other refrigeration equipment.
2. What’ s your product price?
Dear, our product price is low. Don’ t hesitate to contact us, and just tell me your inquiry. Let us check the price for you
Dear, the same as question 1, just contact us.
Dear, our payment are T/T and Western Union.
Not, dear, our price is EXW price and you should pay shipping costs and other fees.
But if the quantity is big, we can apply to free your local shipping fee for you.
| ZB Series Emerson Copeland Scroll Compressor For Air-conditioning | ||||||||
| Model | ZB15KQ ZB15KQE | ZB19KQ ZB19KQE | ZB21KQ ZB21KQE | ZB26KQ ZB26KQE | ZB29KQ ZB29KQE | ZB38KQ ZB38KQE | ZB45KQ ZB45KQE | ZB48KQ ZB48KQE |
| Motor type | TFD | |||||||
| PFJ | PFJ | PFJ | PFJ | PFJ | ||||
| Nominal power(HP) | 2 | 2.5 | 3 | 3.5 | 4 | 5 | 6 | 7 |
| Displacement(m³/h) | 5.9 | 6.8 | 8.6 | 9.9 | 11.4 | 14.5 | 17.2 | 18.8 |
| Starting current(LRA) (Amp.) | ||||||||
| TFD | 24.5~26 | 30~32 | 36~40 | 41~46 | 50 | 58.6~65.5 | 67~74 | 101 |
| PFJ | 53~58 | 56~61 | 75~82 | 89~97 | 113 | |||
| Rated Load Current(RLA) (Amp.) | ||||||||
| TFD | 4.30 | 4.30 | 5.70 | 7.10 | 7.90 | 8.90 | 11.50 | 12.1 |
| PFJ | 11.4 | 12.9 | 16.4 | 18.9 | 19.3 | |||
| Max. operating current (MCC) (Amp.) | ||||||||
| TFD | 6.0 | 6.0 | 8.0 | 10.0 | 11.0 | 12.5 | 16.1 | 17.0 |
| PFJ | 16 | 18 | 23 | 24 | 27 | |||
|
Operating capacitance (single-phase) |
40μF/370V | 45μF/370V | 50μF/370V | 60μF/370V | 60μF/370V | |||
| Crankcase heater power(W) | 70 | |||||||
| Adapter outer diameter(in.) | ||||||||
| Discharge Size | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 3/4 |
| Suction Size | 3/4 | 3/4 | 3/4 | 3/4 | 7/8 | 7/8 | 7/8 | 7/8 |
| Dimenson(mm.) | ||||||||
| Length(L) | 242 | 242 | 243 | 243 | 242 | 242 | 242 | 242 |
| Width(W) | 242 | 242 | 244 | 244 | 242 | 242 | 242 | 242 |
| Height(H) | 383 | 389 | 412 | 425 | 430 | 457 | 457 | 457 |
| Sole angles (aperture) | 190X190 (8.5) | |||||||
| Oil Charge(L) | 1.18 | 1.45 | 1.45 | 1.45 | 1.36 | 1.89 | 1.89 | 1.80 |
| Weight(Kg) | ||||||||
| Net Weight | 23 | 25 | 27 | 28 | 33 | 38 | 40 | 40 |
| Gross Weight | 26 | 29 | 30 | 31 | 37 | 41 | 44 | 44 |
| ZB Series Emerson Copeland Scroll Compressor For Air-conditioning | |||||
| Model | ZB66KQ ZB66KQE | ZB76KQ ZB76KQE | ZB88KQ | ZB95KQ | ZB114KQ |
| Motor type | TFD | ||||
| Nominal power(HP) | 9 | 10 | 12 | 13 | 15 |
| Displacement(m³/h) | 25.7 | 28.8 | 33.2 | 36.4 | 43.4 |
| Starting current(LRA)(Amp.) | |||||
| TFD | 100~111 | 110~118 | 110~118 | 140 | 174 |
| PFJ | |||||
| Rated Load Current(RLA)(Amp.) | |||||
| TFD | 17.3 | 19.2 | 22.1 | 22.1 | 27.1 |
| PFJ | |||||
| Max. operating current (MCC)(Amp.) | |||||
| TFD | 24.2 | 26.9 | 31 | 31 | 38 |
| PFJ | |||||
| Crankcase heater power(W) | 90 | ||||
| Adapter outer diameter(in.) | |||||
| Discharge Size | 7/8 | 7/8 | 7/8 | 7/8 | 7/8 |
| Suction Size | 1 3/8 | 1 3/8 | 1 3/8 | 1 3/8 | 1 3/8 |
| Dimenson(mm.) | |||||
| Length(L) | |||||
| Width(W) | 284 | 284 | 284 | 285 | 285 |
| Height(H) | 546 | 546 | 546 | 552 | 553 |
| Sole angles (aperture) | 190X190 (8.5) | ||||
| Oil Charge(L) | 3.25 | 3.25 | 3.25 | 3.3 | 3.3 |
| Weight(Kg) | |||||
| Net Weight | 59 | 62 | 62 | 62 | 63 |
| Gross Weight | 62 | 65 | 65 | 65 | 66 |
We can supply more ZB models as below
|
No |
Model |
Qty/Pallet |
Refrigerant |
|
1 |
ZB15KQ-PFJ-558-2HP/R22 |
16 |
R22 |
|
2 |
ZB15KQ-TFD-558-2HP/R22 |
16 |
R22 |
|
3 |
ZB21KQ-PFJ-558-3HP/R22 |
16 |
R22 |
|
4 |
ZB21KQ-TFD-558-3HP/R22 |
16 |
R22 |
|
5 |
ZB26KQ-PFJ-558-3.5HP/R22 |
16 |
R22 |
|
6 |
ZB26KQ-TFD-558-3.5HP/R22 |
16 |
R22 |
|
7 |
ZB29KQ-TFD-558-4HP/R22 |
16 |
R22 |
|
8 |
ZB38KQ-TFD-558-5HP/R22 |
16 |
R22 |
|
9 |
ZB45KQ-TFD-558-6HP/R22 |
16 |
R22 |
|
10 |
ZB48KQ-TFD-558-7HP/R22 |
16 |
R22 |
|
11 |
ZB58KQ-TFD-551-8HP/R22 |
12 |
R22 |
|
12 |
ZB66KQ-TFD-551-9HP/R22 |
12 |
R22 |
|
13 |
ZB76KQ-TFD-551-10HP/R22 |
12 |
R22 |
|
14 |
ZB88KQ-TFD-551-12HP/R22 |
12 |
R22 |
|
15 |
ZB114KQ-TFD-551-15HP/R22 |
12 |
R22 |
|
16 |
ZB15KQE-PFJ-558-2HP/R404 |
16 |
R404 |
|
17 |
ZB15KQE-TFD-558-2HP/R404 |
16 |
R404 |
|
18 |
ZB19KQE-PFJ-558-2.5HP/R404 |
16 |
R404 |
|
19 |
ZB19KQE-TFD-558-2.5HP/R404 |
16 |
R404 |
|
20 |
ZB21KQE-PFJ-558-3HP |
16 |
R404 |
|
21 |
ZB21KQE-TFD-558-3HP |
16 |
R404 |
|
22 |
ZB26KQE-TFD-558-3.5HP |
16 |
R404 |
|
23 |
ZB26KQE-PFJ-558-3.5HP |
16 |
R404 |
|
24 |
ZB29KQE-TFD-558-4HP |
16 |
R404 |
|
25 |
ZB38KQE-TFD-558-5HP |
16 |
R404 |
|
26 |
ZB45KQE-TFD-558-6HP |
16 |
R404 |
|
27 |
ZB48KQE-TFD-558-7HP |
16 |
R404 |
|
28 |
ZB58KQE-TFD-551-8HP |
12 |
R404 |
|
29 |
ZB66KQE-TFD-551-9HP |
12 |
R404 |
|
30 |
ZB76KQE-TFD-551-10HP |
12 |
R404 |
|
Model NO. |
Cindensate Temperature |
The Evaporation Temperature ° C (R22/50HZ) |
|||||
|
-12 |
-10 |
-5 |
0 |
5 |
10 |
||
|
ZB15KQ |
40 |
3300 |
3550 |
4350 |
5200 |
6250 |
7400 |
|
ZB19KQ |
40 |
3650 |
3950 |
4850 |
5850 |
7000 |
8300 |
|
ZB21KQ |
40 |
4650 |
5050 |
6200 |
7450 |
8850 |
10500 |
|
ZB26KQ |
40 |
5100 |
5500 |
6800 |
8200 |
9850 |
11700 |
|
ZB29KQ |
40 |
6230 |
6790 |
8290 |
9970 |
11800 |
14070 |
|
ZB38KQ |
40 |
7300 |
8000 |
9950 |
12200 |
14650 |
17300 |
|
ZB45KQ |
40 |
9400 |
10200 |
12400 |
14900 |
17800 |
21000 |
|
ZB48KQ |
40 |
10390 |
11285 |
13700 |
16436 |
19574 |
23199 |
|
ZB58KQ |
40 |
11800 |
12950 |
16100 |
19600 |
19574 |
28000 |
|
ZB66KQ |
40 |
13950 |
15100 |
18400 |
22200 |
26500 |
31500 |
|
ZB76KQ |
40 |
16400 |
17800 |
21700 |
28500 |
30500 |
35500 |
|
ZB88KQ |
40 |
18800 |
20400 |
24900 |
30000 |
36000 |
42000 |
|
ZB95KQ |
40 |
19500 |
21400 |
26500 |
32000 |
38200 |
45200 |
|
ZB114KQ |
40 |
23200 |
25500 |
31700 |
38500 |
41600 |
54500 |
|
Model NO. |
Cindensate Temperature |
The Evaporation Temperature ° C (R404/50HZ) |
||||||
|
-25 |
-20 |
-15 |
-10 |
-5 |
0 |
5 |
||
|
ZB15KQE |
40 |
1870 |
2430 |
3000 |
3700 |
4450 |
5350 |
6350 |
|
ZB19KQE |
40 |
2490 |
3050 |
3750 |
4550 |
5450 |
6500 |
7700 |
|
ZB21KQE |
40 |
3000 |
3700 |
4550 |
5000 |
6600 |
7900 |
9350 |
|
ZB26KQE |
40 |
3500 |
4300 |
5250 |
6350 |
7650 |
9100 |
10800 |
|
ZB29KQE |
40 |
4070 |
5040 |
6160 |
7460 |
8960 |
10680 |
12650 |
|
ZB38KQE |
40 |
5100 |
6250 |
7700 |
9300 |
11200 |
13350 |
15800 |
|
ZB45KQE |
40 |
6000 |
7400 |
9050 |
10950 |
13150 |
15700 |
18600 |
|
ZB48KQE |
40 |
6579 |
8150 |
9969 |
12074 |
14500 |
17287 |
20471 |
|
ZB58KQE |
40 |
7050 |
9250 |
11700 |
14400 |
17500 |
21000 |
24900 |
|
ZB66KQE |
40 |
8900 |
11100 |
13500 |
16400 |
19600 |
23400 |
27600 |
|
ZB76KQE |
40 |
10900 |
13300 |
16100 |
19400 |
23300 |
27800 |
33000 |
