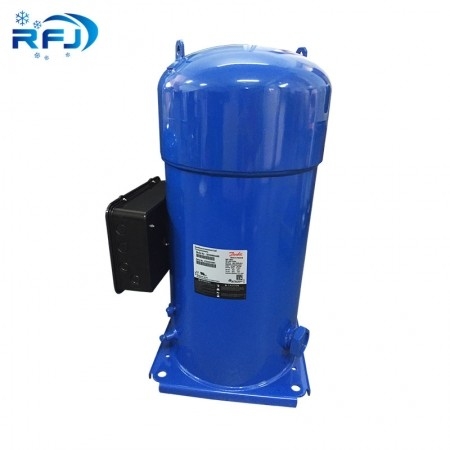

SM084S4VC 7HP Scroll Refrigeration Equipment Compressor SM084-4VM 400V 3PH 50Hz

Name: SM084S4VC 7HP Scroll Refrigeration Equipment Compressor SM084-4VM 400V 3PH 50Hz
Brand: Shenzhen Ruifujie Technology Co., Ltd.
SKU: SM084S4VC(SM084-4VM)
Price: 4,000.00 USD
Availability: InStock

Brand Name:	Danfoss
Model Number:	SM084S4VC(SM084-4VM)
MOQ:	1PCS
Price:	discussed
Delivery Time:	1-5 Days
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE UL

Color:

Blue

Apllication:

Refrigeration

Type:

Refrigeration Compressor

Product Name:

SM084-4VM

Warranty:

1 Year

Horse Power:

7HP

Net Weight:

64KG

Voltage:

400/3/50 460/3/60

Refrigerant:

R22

Product Name::

Scroll Compressor

Segment Usage:

Air Conditioning

Packaging Details:

wooden packaging

Supply Ability:

500PCS

Highlight:

Blue Scroll refrigeration equipment compressor

Blue 7HP refrigeration equipment compressor

Blue scroll compressors refrigeration

Product Description

SM084S4VC 7HP Scroll Refrigeration Equipment Compressor SM084-4VM 400V 3PH 50Hz

Product Overview

Scroll Compressor

Fixed Speed

3 Phase

R22 Refrigerant

Gross Weight	69.5 kg
Net Weight	64 kg
EAN	5702424540630

Technical Specifications

Compressor Power Supply 400/3/50 460/3/60

Nominal Cooling Capacity (50Hz) 18.4 kW

Nominal Cooling Capacity (60Hz) 24.6 kW

Rated Load Amps (RLA) 12.1 A

Locked Rotor Amps (LRA) 86 A

Maximum Operating Current 17 A

Rotational Speed (50Hz) 2900 rpm

Rotational Speed (60Hz) 3500 rpm

Oil Charge 3.25 L

Refrigerant Charge (Max) 8.5 kg

IP Protection Class IP54 (with cable gland)

Approval Standards CE, UL

Physical Dimensions & Connections

Total Height 508 mm

Diameter 254 mm

Suction Connection Size 1 1/8 in

Discharge Connection Size 3/4 in

Connection Type Brazed

Power Connections Screw 4.8 mm

Operating Parameters

High Side Max Pressure 30.2 bar

Low Side Max Pressure 25 bar

High Side Temperature Range -35°C to 150°C

Low Side Temperature Range -35°C to 63°C

Maximum Starts per Hour 12

Product Images
