Quality SM090S4VC Refrigeration Equipment Compressor SM090-4VM R22 Scroll Compressor 7.5HP factory
<
Quality SM090S4VC Refrigeration Equipment Compressor SM090-4VM R22 Scroll Compressor 7.5HP factory
>

SM090S4VC Refrigeration Equipment Compressor SM090-4VM R22 Scroll Compressor 7.5HP

SM090S4VC Refrigeration Equipment Compressor SM090-4VM R22 Scroll Compressor 7.5HP
Place of Origin:China
Brand Name:Danfoss
Certification:CE UL
Model Number:SM090S4VC(SM090-4VM)
Minimum Order Quantity:1PCS
Price:discussed
Standard Packaging:wooden packaging
Delivery Time:1-5 Days
Payment Terms:T/T,Western Union
Supply Ability:500PCS
Tags:

refrigeration compressors

scroll compressor refrigeration

screw type air compressor
Product Details
Highlight:

SM090S4VC refrigeration equipment compressor

,

Blue r22 scroll compressor

,

scroll refrigeration equipment compressor Blue
Color: Blue
Apllication: Refrigeration
Type: Refrigeration Compressor
Product Name: SM090-4VM
Warranty: 1 Year
Horse Power: 7.5HP
Net Weight: 65KG
Voltage: 400/3/50 460/3/60
Refrigerant: R22
Product Name:: Scroll Compressor
Segment Usage: Air Conditioning
Product Description
Detailed Specifications & Features
SM090S4VC Refrigeration Equipment Compressor SM090-4VM R22 Scroll Compressor 7.5HP
Product Overview

High-performance scroll compressor designed for air conditioning applications, featuring robust construction and reliable operation with R22 refrigerant.

Gross Weight 70.53 kg
Net Weight 65 kg
EAN 5702424540609
Certifications & Standards
CE UL
Technical Specifications
Compressor Technology Scroll compressor
Capacity Control Fixed speed
Power Supply 400/3/50 460/3/60
Refrigerant R22
Cooling Capacity (60Hz) 26.4 kW (90.1 kBtu/h)
Cooling Capacity (50Hz) 19.7 kW
Motor Protection Internal overload protector
IP Protection Class IP54 (with cable gland)
Phase 3
Rated Load Amps (RLA) 13.2 A
Locked Rotor Amps (LRA) 98 A
Maximum Operating Current 17 A
Physical Dimensions & Connections
Total Height 508 mm
Diameter 254 mm
Suction Connection 1 1/8 in
Discharge Connection 3/4 in
Connection Type Brazed
Oil Equalization 3/8" flare SAE
Operating Parameters
High Side Max Pressure 30.2 bar
Low Side Max Pressure 25 bar
Rotational Speed (50Hz) 2900 rpm
Rotational Speed (60Hz) 3500 rpm
Maximum Starts per Hour 12
Oil Charge 3.25 L
Oil Type Mineral (160P)
Refrigerant Charge (Max) 8.5 kg
Product Images

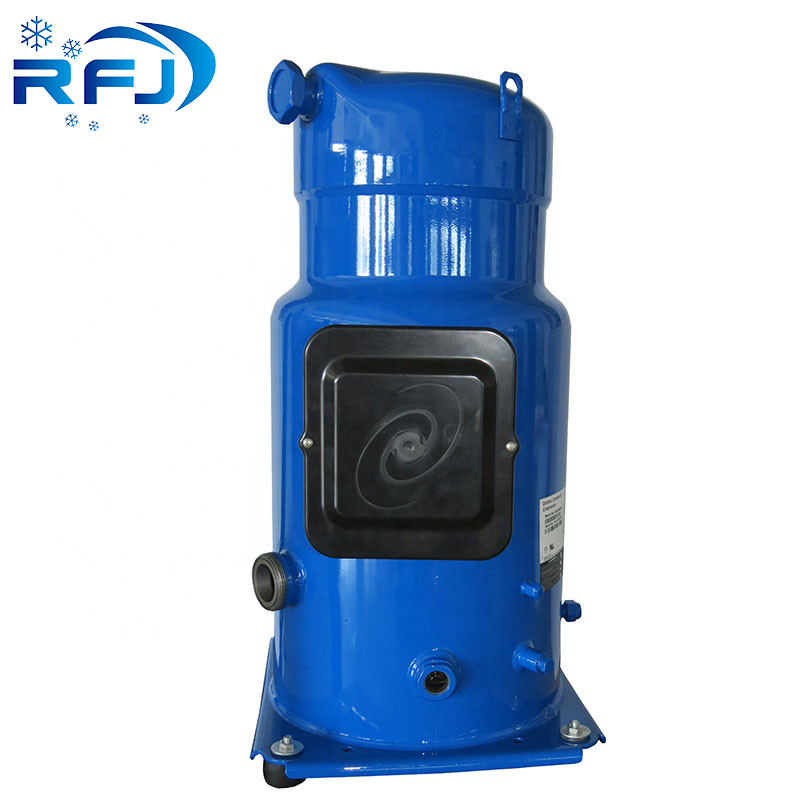

SM090S4VC Scroll Compressor front view SM090S4VC Scroll Compressor side view with connections
