SM090-4VI Refrigeration Scroll Compressor 7.5HP SM090S4VC For Air Conditioning

Name: SM090-4VI Refrigeration Scroll Compressor 7.5HP SM090S4VC For Air Conditioning
Brand: Shenzhen Ruifujie Technology Co., Ltd.
SKU: SM090S4VC(SM090-4VI)
Price: 4,000.00 USD
Availability: InStock

Place of Origin:China

Brand Name:Danfoss

Certification:CE UL

Model Number:SM090S4VC(SM090-4VI)

Minimum Order Quantity:1PCS

Price:discussed

Standard Packaging:wooden packaging

Delivery Time:1-5 Days

Payment Terms:T/T,Western Union

Supply Ability:500PCS

Tags:

refrigeration compressors

scroll compressor refrigeration

screw type air compressor

Product Details

Highlight:

Brazed Connection Refrigeration Scroll Compressor

SM090S4VC Refrigeration Scroll Compressor

7.5HP Air Conditioning Scroll Compressor

Color: Blue

Apllication: Refrigeration

Type: Refrigeration Compressor

Product Name: SM090-4VI

Warranty: 1 Year

Horse Power: 7.5HP

Net Weight: 65KG

Voltage: 230/3/50

Refrigerant: R22

Product Name:: Scroll Compressor

Segment Usage: Air Conditioning

Product Description

Detailed Specifications & Features

SM090-4VI Refrigeration Scroll Compressor 7.5HP SM090S4VC For Air Conditioning

Product Overview

High-performance SM090-4VI scroll compressor designed for air conditioning applications, featuring 7.5HP capacity and robust construction.

Key Specifications

Gross Weight	70.53 kg
Net Weight	65 kg
EAN	5702424540593
Approval Standard	CE
Brand Technique	Scroll compressor
Capacity Control	Fixed speed
Compressor Power Supply	230/3/50 V/Ph/Hz
Model Number	SM090S6VC
Refrigerant	R22
Nominal Cooling Capacity at 50Hz	19.7 kW

Technical Details

Diameter	254 mm
Total Height	508 mm
Discharge Connection Size	3/4 in
Suction Connection Size	1 1/8 in
IP Protection Class	IP54 (with cable gland)
Motor Protection	Internal overload protector
Rotational Speed at 50Hz	2900 rpm
Oil Type	Mineral
Oil Charge	3.25 L
Refrigerant Charge [Max]	8.5 kg

Electrical Specifications

Phase	3
RLA	21.4 A
LRA	165 A
MCC	30 A
Maximum Operating Current	27 A
Winding Resistance	0.5 Ohm

Pressure Ratings

High Side Max Pressure	30.2 bar
Low Side Max Pressure	25 bar
Factory HP	33 bar
Factory LP	25 bar

Product Images

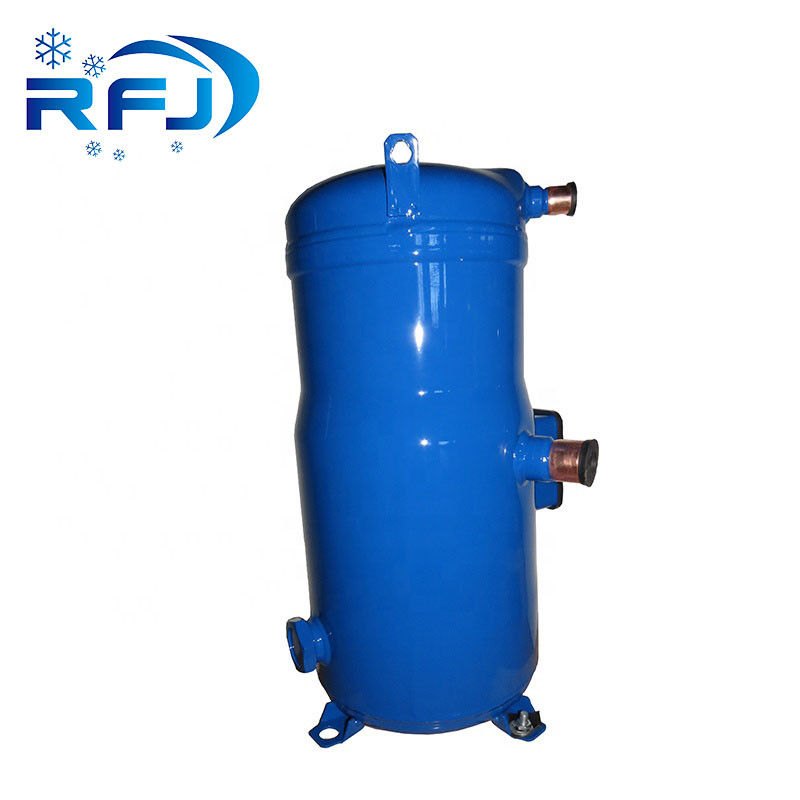

SM090-4VI Refrigeration Scroll Compressor front view

SM090-4VI Refrigeration Scroll Compressor side view
