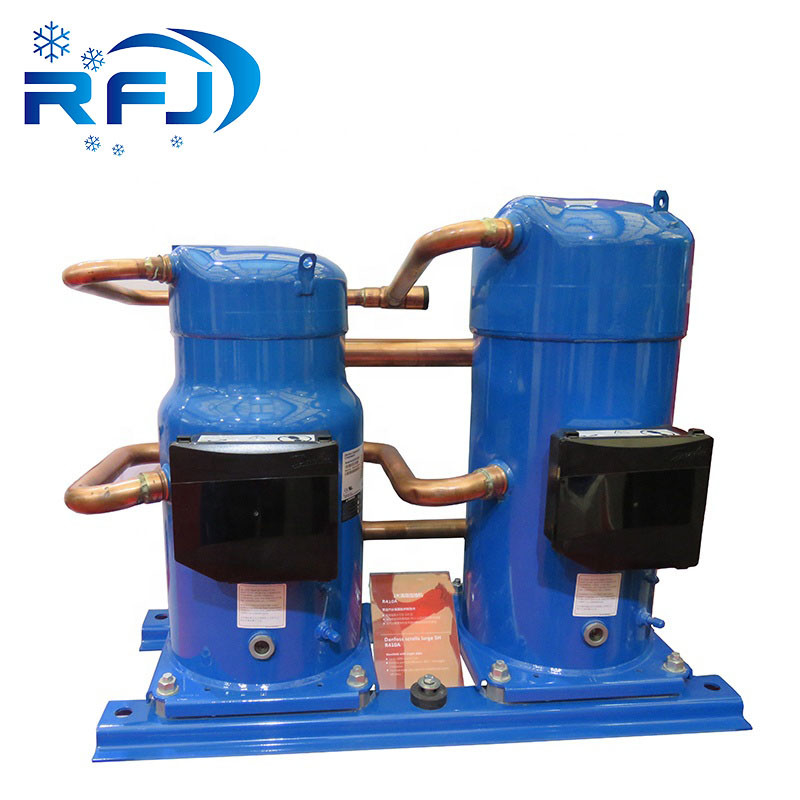

SM090-6VM Refrigeration Equipment Compressor 7.5HP Air Conditioning Scroll Compressor

SM090-6VM Refrigeration Equipment Compressor 7.5HP Air Conditioning Scroll Compressor
SM090-6VM Refrigeration Equipment Compressor 7.5HP Air Conditioning Scroll Compressor
video play

Large Image :  SM090-6VM Refrigeration Equipment Compressor 7.5HP Air Conditioning Scroll Compressor

Product Details:
Place of Origin: China
Brand Name: Danfoss
Certification: CE UL
Model Number: SM090S4VC
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: discussed
Packaging Details: wooden packaging
Delivery Time: 1-5 Days
Payment Terms: T/T, Western Union
Supply Ability: 500PCS
Detailed Product Description
Color: Blue Apllication: Refrigeration
Type: Refrigeration Compressor Product Name: SM090-6VM
Warranty: 1 Year Horse Power: 7.5HP
Net Weight: 65KG Voltage: 230/3/50
Refrigerant: R22 Product Name:: Scroll Compressor
Segment Usage: Air Conditioning
High Light:

SM090-6VM refrigeration equipment compressor

,

refrigeration equipment compressor 7.5HP

,

Brazed Connection Air conditioning Scroll compressor

Product details

Gross weight 70.53 kg



Net weight 65 kg



Approval standard CE
Brand technique Scroll compressor
Capacity control Fixed speed
Colour Blue
Compressor power supply [V/Ph/Hz] 230/3/50
Configuration code Single
Connection type Brazed
Description SM090-6
Diameter [mm] 254 mm
Discharge connection height [mm] 465 mm
Discharge connection pipe size [in] 3/4 in
Discharge connection size [in] 3/4 in
Drawing number 8552036b
Economizer No
Factory HP [bar] 33 bar
Factory LP [bar] 25 bar
Fitting standard ODF
Frequency [Hz] 50
Gauge port HP None
Gauge port LP Schrader
Generation code C
Glass mounting Threaded
Glass torque [Nm] 50 Nm
GP LP torque [Nm] 15 Nm
High side max pressure (Ps) 30.2 bar
High Side TS Max 150 °C
High Side TS Min -35 °C
High Side Volume 1.1 L
High value of nominal voltage at 50Hz [V] 230 V
High value of nominal voltage at 60Hz [V] 0 V
High value of voltage range at 50Hz [V] 253 V
High value of voltage range at 60Hz [V] 0 V
IP protection class IP54 (with cable gland)
Low side max pressure (Ps) 25 bar
Low Side TS Max 63 °C
Low Side TS Min -35 °C
Low Side Volume 13 L
Low value of nominal voltage at 50Hz [V] 230 V
Low value of nominal voltage at 60Hz [V] 0 V
Low value of voltage range at 50Hz [V] 207 V
Low value of voltage range at 60Hz [V] 0 V
LRA 165 A
Maximum Operating Current [MOC] 27 A
MCC 30 A



Model number SM090S6VC
Motor protection Internal overload protector
Mounting torque [Nm] 21 Nm
Nominal cooling capacity at 50Hz 19.7 kW
Number of starts per hour [Max] 12
Oil charge [L] 3.25 L
Oil equalization 3/8'' flare SAE
Oil equalization torque [Nm] 48 Nm
Oil reference 160P
Oil type Mineral
Packaging height [mm] 707 mm
Packaging length [mm] 1140 mm
Packaging weight [Kg] 566 kg
Packaging width [mm] 950 mm
Packing format Industrial pack
Packing quantity 8
Phase 3
Power connections Screw 4.8 mm
Refrigerant R22
Refrigerant charge [kg] [Max] 8.5 kg
Relief valve None
RLA 21.4 A
Rotational speed at 50Hz [rpm] 2900 rpm
Rotational speed at 60Hz [rpm] 0 rpm
Segment usage Air conditioning
Shipped instructions Installation instructions
Shipped mounting Mounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oil Initial oil charge
Suction connection height [mm] 142 mm
Suction connection pipe size [in] 1 1/8 in
Suction connection size [in] 1 1/8 in
Swept volume [cm3] 120.5 cm³
Technology Scroll
Test dif [bar] [Max] 24 bar
Test HP [bar] [Max] 32 bar
Test LP [bar] [Max] 25 bar
Torque earth [Nm] 2 Nm
Torque power [Nm] 3 Nm
Total height [mm] 508 mm
Type SM
Type designation Compressor
Viscosity [cP] 32 cP
Winding resistance for three-phase compressors with identical windings [Ohm] 0.5 Ohm


SM090-6VM Refrigeration Equipment Compressor 7.5HP Air Conditioning Scroll Compressor 0SM090-6VM Refrigeration Equipment Compressor 7.5HP Air Conditioning Scroll Compressor 1
