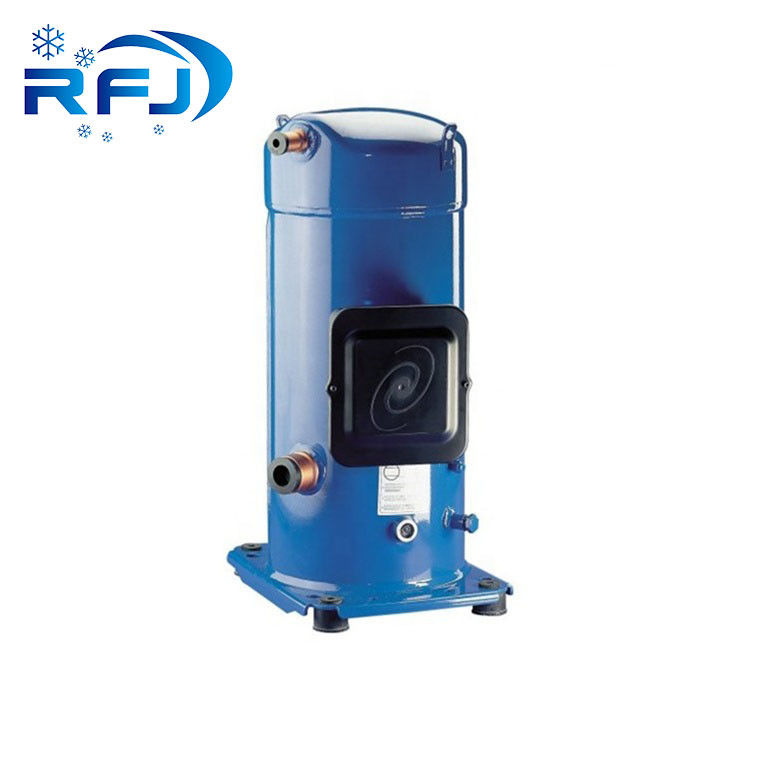

SM090-4VM Refrigeration Scroll Compressor 7.5HP SM090S4VC For Air Conditioning

Name: SM090-4VM Refrigeration Scroll Compressor 7.5HP SM090S4VC For Air Conditioning
Brand: Shenzhen Ruifujie Technology Co., Ltd.
SKU: SM090S4VC(SM090-4VM)
Price: 4,000.00 USD
Availability: InStock

Brand Name:	Danfoss
Model Number:	SM090S4VC(SM090-4VM)
MOQ:	1PCS
Price:	discussed
Delivery Time:	1-5 Days
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE UL

Color:

Blue

Apllication:

Refrigeration

Type:

Refrigeration Compressor

Product Name:

SM090-4VM

Warranty:

1 Year

Horse Power:

7.5HP

Net Weight:

65KG

Voltage:

380/3/60

Refrigerant:

R22

Product Name::

Scroll Compressor

Segment Usage:

Air Conditioning

Packaging Details:

wooden packaging

Supply Ability:

500PCS

Highlight:

SM090-9VM Refrigeration Scroll Compressor

Refrigeration Scroll Compressor Brazed Connection

Blue Color scroll compressors refrigeration

Product Description

SM090-4VM Refrigeration Scroll Compressor 7.5HP SM090S4VC For Air Conditioning

Product Overview

The SM090-9VM is a high-performance scroll compressor designed for air conditioning applications, featuring 7.5HP capacity and robust construction for reliable operation.

Gross Weight	70.53 kg
Net Weight	65 kg
EAN	5702424053406

Certifications & Standards

Approval Standard CE, UL

Brand Technique Scroll Compressor

IP Protection Class IP54 (with cable gland)

Technical Specifications

Compressor Power Supply 380/3/60 V/Ph/Hz

Nominal Cooling Capacity 90.1 kBtu/h (26.4 kW)

Capacity Control Fixed Speed

Refrigerant R22

RLA 15.7 A

LRA 113 A

Rotational Speed at 60Hz 3500 rpm

Swept Volume 120.5 cm³

Oil Charge 3.25 L

Oil Type Mineral (160P)

Physical Dimensions & Connections

Total Height 508 mm

Diameter 254 mm

Suction Connection 1 1/8 in

Discharge Connection 3/4 in

Connection Type Brazed

Operating Parameters

High Side Max Pressure 30.2 bar

Low Side Max Pressure 25 bar

High Side Temperature Range -35°C to 150°C

Low Side Temperature Range -35°C to 63°C

Maximum Starts per Hour 12

Included Components

Shipped Instructions Installation Instructions

Shipped Mounting Mounting Kit with Grommets, Bolts, Nuts, Sleeves and Washers

Shipped Oil Initial Oil Charge

Product Images
