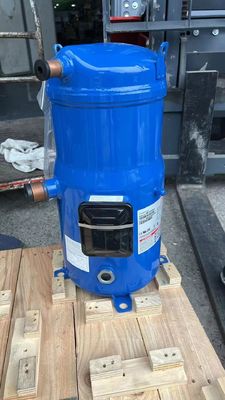

7HP 69600 BTU R22 Refrigeration Scroll Compressor SM084S4VC SM084-4VI Reefer Compressor
SGS Refrigeration Scroll Compressor
,380V Refrigeration Scroll Compressor
,SM084S4VC Reefer Compressor
| Brand: | Performer |
| Connection: | Rotalock |
| Model Number: | SM084S4VC |
| Package: | Wooden case |
| Warranty: | 1 Year |
| Electric Supply: | 380-400V / 50Hz / 3ph |
| Displacement: | 19.2m³/h |
| Oil change [dm³]: | 3.30 |
| Phase: | Three Phase |
| Refrigerant Suitability: | R22 |
| COP: | 3.33W/W |
| EER: | 11.4Btu/W |
| Cooling capacity: | 69600BTU |
| Horse Power: | 7 |
- Patent design: Gas circulation, motor cooling and oil lubrication are all improved through the new patented design of the motor hood.
- Air inlet design: Air intake design increases resistance to liquid attack and the new PTFE elastic seal reduces leakage.
- Increased service life: Protection and assembly of components reduce internal leakage and increase service life.
- Low noise: Improvements in component isolation have greatly reduced noise. The heat shield reduces heat transfer and noise between exhaust and inhalation.
The company develops and produces scroll, piston and screw compressors that are exported worldwide. We have strong technical strength and experience in cold storage, freezing, quick freezing, and flake ice machine, block ice machine production and sales.
In recent years, the company has participated in the Belt and Road initiative, constantly tackling difficulties in overseas markets, developing rapidly, and building numerous engineering projects with modern significance.
The company has achieved breakthrough development in after-sales service, design, installation, maintenance and technical consulting, and has established long-term close cooperation with many countries around the world.
Based on the tenet of "Devotion, Integrity, Innovation, Dedication", we continue to provide highest quality products for new and existing customers.
- Semi-hermetic compressors
- Scroll compressors: CR, VR, ZB, ZR, ZF, ZP SERIES
- Semi-hermetic compressors: DL, D2, D4, D6, D8 SERIES
- Performer compressors: SM, SZ, SH SERIES
- Commercial compressors: FR, SC SERIES
- Maneurop piston compressors: MT, MTZ, NTZ, MPZ SERIES
- Secop compressor, Carrier (Carlyle) compressor
- Hitachi compressor, Daikin compressor, Sanyo compressor
- Tecumseh compressor, LG compressor, Mitsubishi compressor
- Toshiba compressor, Embraco Aspera compressor
- Also Carel, Dixell original valves, controls and selected parts
- TE, TDE, TGE, PHT SERIES TERMOSTATIC EXPANSION VALVES
- ETS SERIES EXPANSION VALVES
- EVR SERIES EXPANSION VALVES
- KP1, KP5, KP15 SERIES PRESSURE CONTROLS
- DCL DML LIQUID LINE FILTER DRIERS
