XR60CX-5N1C1 Dixell Digital Temperature Controller 230V 3.5VA Max

Name: XR60CX-5N1C1 Dixell Digital Temperature Controller 230V 3.5VA Max
Brand: Shenzhen Ruifujie Technology Co., Ltd.
SKU: XR60CX-5N1C1
Price: 100.00 USD
Availability: InStock

Brand Name:	Dixell
Model Number:	XR60CX-5N1C1
MOQ:	1
Price:	1-200
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Italy/CN

Certification:

CE etc.

Type:

Dixell

Controller Type:

Temperature Controller

Power:

3.5VA Max

Voltage:

230V

Hz:

50-60

Warranty:

1 Year

Packaging Details:

Carton

Supply Ability:

5000/Month

Highlight:

230V Dixell Digital Temperature Controller

XR60CX-5N1C1 Dixell Temperature Controller

Product Description

Dixell XR60CX-5N1C1 Digital Temperature Controller.

Specification

XR60CX-5N1C1 Dixell Digital Temperature Controller 230V 3.5VA Max 0

XR60CX-5N1C1 Dixell Digital Temperature Controller 230V 3.5VA Max 1

XR60CX-5N1C1 Dixell Digital Temperature Controller 230V 3.5VA Max 2

XR60CX-5N1C1 Dixell Digital Temperature Controller 230V 3.5VA Max 3

Product Description:

XR60CX-5N1C1 Dixell Digital Temperature Controller 230V 3.5VA Max 4

XR60CX-5N1C1 Dixell Digital Temperature Controller 230V 3.5VA Max 5

Features:

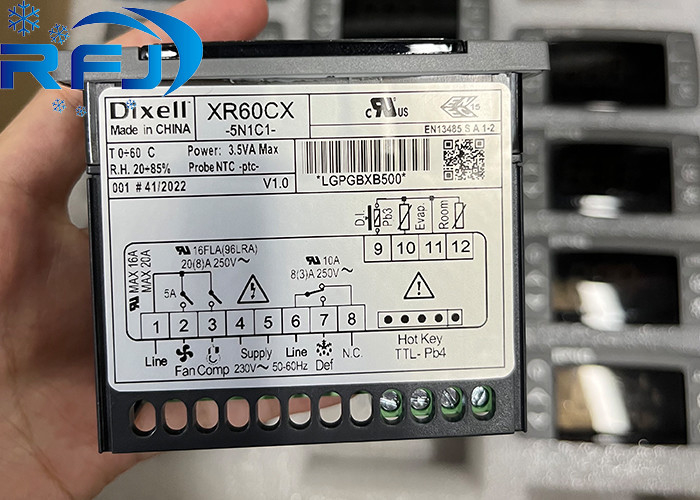

Model XR60CX, format 32 x 74 mm, is microprocessor based controller, suitable for applications on

medium or low temperature ventilated refrigerating units. It has three relay outputs to control

compressor, fan, and defrost, which can be either electrical or reverse cycle (hot gas). It is also

provided with three NTC or PTC probe inputs, the first one for temperature control, the second one,

to be located onto the evaporator, to control the defrost termination temperature and to managed the

fan, the third one, optional, to connect to the HOT KEY terminals to signal the condenser

temperature alarm or to display a temperature. The digital input can operate as fourth temperature

probe.

The HOT KEY output allows to connect the unit, by means of the external module XJ485-CX, to a

network line ModBUS-RTU compatible such as the Dixell monitoring units of X-WEB family. It allows

to program the controller by means the HOT KEY programming keyboard.

The instrument is fully configurable through special parameters that can be easily programmed

through the keyboard.

FAQ
Q: What is your delivery time?
A: The time of delivery is 3-10 working days after payment.

Q: What is your main brands?
A: Copeland, Danfoss, Bitzer, Bock, Bristol, Carel, Carrier, Daikin, Embraco, Emerson, Frascold, Fusheng, GMCC, LG, Hanbell, Misubishi, Refcomp, Panasonic, Secop, Sporlan, Saginomiya

Q: What is the price?
A: Pls contact me get the best price.
