| Model Number: | 4VES-10-40P |
| MOQ: | 1pcs |
| Price: | discussed |
| Delivery Time: | 7-10 working days after received your payment |
| Payment Terms: | T/T or western Union |

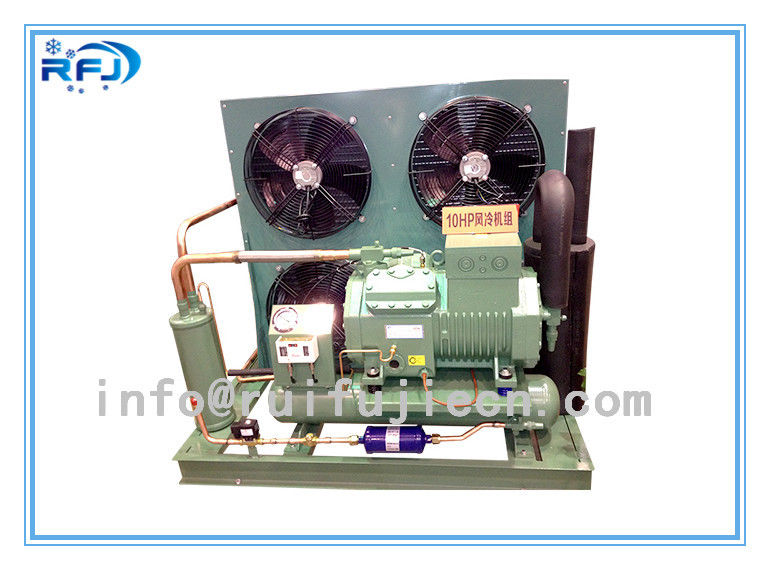

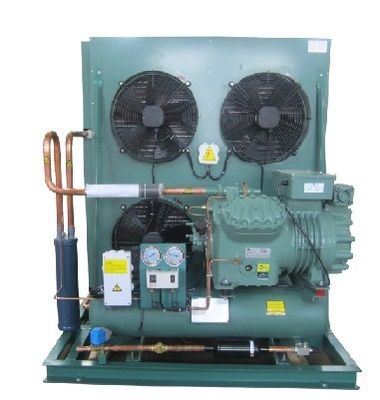

R22 10HP Original air cooled condensing unit designed for cold room applications, fishing boats, and various industrial refrigeration needs.
Compressor condensing unit is widely used for different temperature ranges, applicable in cold storage, chiller room, freezer room, and similar environments.
| New Model Number | Old Model Number | Horse Power |
|---|---|---|
| 2HES-1 | 2HC-1.2 | 1HP |
| 2HES-2 | 2HC-2.2 | 2HP |
| 2GES-2 | 2GC-2.2 | 2HP |
| 2FES-2 | 2FC-2.2 | 2HP |
| 2FES-3 | 2FC-3.2 | 3HP |
| 2EES-2 | 2EC-2.2 | 2HP |
| 2EES-3 | 2EC-3.2 | 3HP |
| 2DES-2 | 2DC-2.2 | 2HP |
| 2DES-3 | 2DC-3.2 | 3HP |
| 2CES-3 | 2CC-3.2 | 3HP |
| 2CES-4 | 2CC-4.2 | 4HP |
| 4FES-3 | 4FC-3.2 | 3HP |
| 4FES-5 | 4FC-5.2 | 5HP |
| 4EES-4 | 4EC-4.2 | 4HP |
| 4EES-6 | 4EC-6.2 | 6HP |
| 4DES-5 | 4DC-5.2 | 5HP |
| 4DES-7 | 4DC-7.2 | 7HP |
| 4CES-6 | 4CC-6.2 | 6HP |
| 4CES-9 | 4CC-9.2 | 9HP |
| 4VES-7 | 4VCS-6.2 | 6HP |
| 4VES-10 | 4VCS-10.2 | 10HP |
| 4TES-9 | 4TCS-8.2 | 8HP |
| 4TES-12 | 4TCS-12.2 | 12HP |
| 4PES-12 | 4PCS-10.2 | 10HP |
| 4PES-15 | 4PCS-15.2 | 15HP |
| 4NES-14 | 4NCS-12.2 | 12HP |
| 4NES-20 | 4NCS-20.2 | 20HP |
| 4JE-15 | 4J-13.2* | 13HP |
| 4JE-22 | 4J-22.2* | 22HP |
| 4HE-18 | 4H-15.2* | 15HP |
| 4HE-25 | 4H-25.2* | 25HP |
| 4GE-23 | 4G-20.2* | 20HP |
| 4GE-30 | 4G-30.2* | 30HP |
| 6JE-25 | 6J-22.2* | 20HP |
| 6JE-33 | 6J-33.2* | 33HP |
| 6HE-28 | 6H-25.2* | 25HP |
| 6HE-35 | 6H-35.2* | 35HP |
| 6GE-34 | 6G-30.2* | 30HP |
| 6GE-40 | 6G-40.2* | 40HP |
| 6FE-44 | 6F-40.2* | 40HP |
| 6FE-50 | 6F-50.2* | 50HP |
| Model | Horse Power | Displacement (50Hz) m³/h | Qty of Cylinder*Diameter*Stroke (mm) |
|---|---|---|---|
| 2DC-2.2 | 2 | 13.5 | 2*50*39.3 |
| 2DC-3.2 | 3 | 13.5 | 2*50*39.3 |
| 2CC-3.2 | 3 | 16.2 | 2*55*39.3 |
| 2CC-4.2 | 4 | 16.2 | 2*55*39.3 |
| 4DC-5.2 | 5 | 26.84 | 4*50*39.3 |
| 4DC-7.2 | 7 | 26.84 | 4*50*39.3 |
| 4CC-6.2 | 6 | 32.48 | 4*55*39.3 |
| 4CC-9.2 | 9 | 32.48 | 4*55*39.3 |
| 4TCS-8.2 | 8 | 41.33 | 4*60*42 |
| 4TCS-12.2 | 12 | 41.33 | 4*60*42 |
| 4PCS-10.2 | 10 | 48.5 | 4*65*42 |
| 4PCS-15.2 | 15 | 48.5 | 4*65*42 |
| 4NCS-12.2 | 12 | 56.25 | 4*70*42 |
| 4NCS-20.2 | 20 | 56.25 | 4*70*42 |
| 4H-15.2 | 15 | 73.6 | 4*70*55 |
| 4H-25.2 | 25 | 73.6 | 4*70*55 |
| 4G-20.2 | 20 | 84.5 | 4*75*55 |
| 4G-30.2 | 30 | 84.5 | 4*75*55 |
| 6H-25.2 | 25 | 110.5 | 6*70*55 |
| 6H-35.2 | 35 | 110.5 | 6*70*55 |
| 6G-30.2 | 30 | 126.8 | 6*75*55 |
| 6G-40.2 | 40 | 126.8 | 6*75*55 |
| 6F-40.2 | 40 | 151.6 | 6*82*55 |
| 6F-50.2 | 50 | 151.6 | 6*82*55 |
| S6H-20.2 | 20 | 36.8 | 6*70*55 |
| S6G-25.2 | 25 | 42.3 | 6*75*55 |
| S6F-30.2 | 30 | 50.5 | 6*82*55 |
|
|
