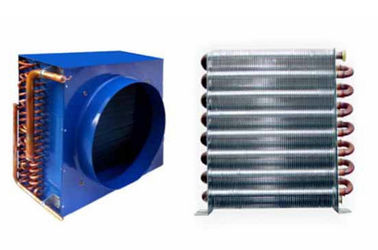

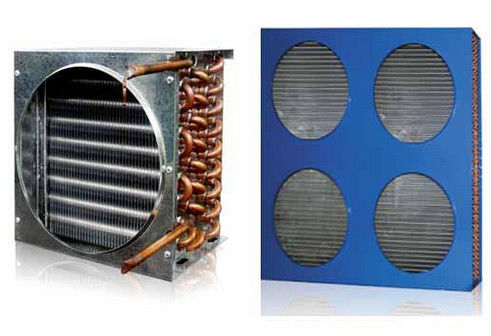

Custom 5HP small double fans freezer Air Cooled Condenser FNF-9.0/42

Custom 5HP small double fans freezer Air Cooled Condenser FNF-9.0/42
Custom 5HP small double fans freezer Air Cooled Condenser FNF-9.0/42 Custom 5HP small double fans freezer Air Cooled Condenser FNF-9.0/42

Large Image :  Custom 5HP small double fans freezer Air Cooled Condenser FNF-9.0/42

Product Details:
Place of Origin: China
Brand Name: XMK
Certification: CE, CCC, RoHS, UL
Model Number: FNF-9.0/42
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: discussed
Packaging Details: Carton box
Delivery Time: 7-10 working days after received your payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5,000pcs per month
Detailed Product Description
Power Supply: Electric Condensation Forms: Air-Cooled
Application: Cold Storage Material: Aluminum
Voltage: 220/380v Frequency: 50/60hz
Heat Transfer Area: 42㎡ Dimension(L*W*H): 950*200*590mm
Diameter Of Fans: 400mm Fan Air Volume: 2*3000m³/h
Fan Motor Power: 2*120W Normial Capacity: 10800W
Specification: 5HP Small
High Light:

air cooled condenser unit

,

air cooled condensing unit

5HP small double fans freezer condenser coil condenser FNF-9.0/42  for condensing unit



Specifications:



Features



1. Customer make for you
2. Superior cooling performance
3. Good quality

4. Various model for choosing



Description:



  • Fin spacing: 1.8-3.5mm
  • Aluminum foil: Hydrophilic or bare
  • Copper tube diameter: 9.52mm, thickness: 0.31mm
  • Cooling area: 1.0 to 9.0 m2
  • Aluminum or galvanized steel casing & anti -corrosive surface
  • Black, white, blue, green painting available
  • CE & ISO9001 Certificate
  • Pass 2.8MPa nitrogen pressure leak test
  • Used in refrigeration or cold storage

Product Description



1. Due to quality copper tube and alumlum fin used, it achieves a high heat transfer coefficient. After treatment of oil removal, rust removal, phosphating, passivation, spray coating and drying, the casing enjoys excellent corrosion-proof performance.



2. Reasonable design of product stucture and strengthening treatment of all suported and boards contribute to duration and simple installation.



3. Automatic molding process ensures dry and clean interior of the copper tube. Close conjunction of aluminum fin and copper tube achieves a good effect of heat transfer.



4. Loop design prevents pressure loss as possible. Multi-loop cross-spread contributes to better heat dispersion effect.



5. Famous branded fan at stable quality adopted endow excellent heat dispersion and low noise(V-shaped condenser).



6. Having passed 2.6mpa air tightness test, the coil satisfies the requirements for tightness.



7. Full rang of product specifications satisfies heat dispersion requirements from compressors with various powers.



8. Customized service(specific material, space) is available, the product is widely used in refrigeration unit, cold storage unit and industrial refrigeration unit.



Please check more models as below:



Model    Specification
FNA-0.25/1.0 2x 8 small
FNA-0.25/1.1 2x 8 midumn
FNA-0.25/1.2 2x  8 big
FNA-0.25/1.3 2x  8 extra big
FNA-0.8/3.4 1/4 hp
FNA-1.0/4.4 1/2hp
FNA-1.2/5.4 3/4hp
FNA-1.6/8.4 1hp
FNF-1.8/9.8  1.5hp small
FNF-2.5/11.3 1.5HP big
FNF-2.8/13 2HP
FNF-4.4/16.5 2.5HP
FNF-5.5/20 3HP small
FNF-6.0/22 3HP big
FNF-7.2/26 3HP double fan
FNF-8.8/30 4HP
FNF-9.0/42 5HP small
FNF-10.2/50 5HP big
FNF-15.2/53 6.5HP
FNF-19.0/63 7.5HP
FNF-21.5/75 8.5HP
FNF-24.2/88 10HP
FNF-36.0/130 15HP
FNF-42.0/150 20HP
FNF-50.0/180 25HP
FNF-60.0/210 30HP



Model Rated heat released
(w)
Area of heat exchange
(m2)
Dimension
(L*W*H)
Power Matching
(HP)
Rackpipe
FNF-0.8/3.0 800 3 285×110×275   3/8 3×9
FNF-0.9/3.4 900 3.4 300×100×275   7/8 3×10
FNF-2.2/8.3 2200 8.3 445×130×320  1 4×12
FNF-2.7/10 2700 10 515×130×410  1.5 3×16
FNF-3.6/13.3 3600 13.3 515×150×410  2 4×16
FNF-4.0/15 4000 15 515×150×460  2.5 4×18
FNF-5.0/18.5 5000 18.5 565×150×530  3 4×20
FNF-6.0/21 6000 21 615×170×530  3.5 4×20
FNF-5.5/20 5500 20 860×170×490  3.5 3×18
FNF-8.8/30 8800 30 1000×180×615  4 3×23
FNF-10.8/39 10800 39 1000×180×580  5 4×22
FNF-14.0/49 14000 49 1000×200×580  6.5 5×22
FNF-15.2/53 15200 53 1000×200×630  7.5 5×24
FNF-19.0/63 19000 63 1000×220×630  8.5 6×24
FNF-24.2/88 24200 88 1000×220×1030  10 5×40
FNF-28.8/105 28800 105 1000×220×1030  12 6×40
FNF-36.0/130 36000 130 1230×220×1030  15 6×40
FNF-42.0/156 42000 156 1230×220×1230  20 6×48
FNF-49.0/170 49000 170 1330×260×1230    6×48
FNF-52.0/182 52000 182 1430×260×1230    6×48
FNF-58.0/200 58000 200 1430×260×1330    6×52
FNF-60.9/210 60900 210 1500×260×1330    6×52
FNF-69.6/242 69600 242 1500×280×1330    7×52



MODEL Specification Normial Capacity W(Kcal/h) Heat transfer area(square meter)

Dimension  (Lenghth*Width

*Height)mm

  Fan
Installation Quantity Diameter of fans(mm)

Air volume

(m³/h)

Power(W) Voltage(V)
FNA-0.25/1.0 2*4(S) 360 1.0 175*45*210 190*0 1 150 300 16 220
FNA-0.25/1.1 2*4(M) 370 1.1 195*45*210 210*0 1 150 300 16 220
FNA-0.25/1.2 2*4(L) 380 1.2 205*45*210 220*0 1 150 300 16 220
FNA-0.25/1.3 2*4(XL) 390 1.3 225*45*210 240*0 1 150 300 16 220
FNA-0.8/3.4 3*4 800 3.4 250*120*235 275*80 1 200 500 40 220
FNA-0.9/4.0 3*4(L) 900 4.0 300*120*235 325*80 1 200 500 40 220
FNA-1.0/4.4 3*5 1000 4.4 320*130*280 345*90 1 250 800 40 220
FNA-1.1/5.0 3*5(L) 1100 5.0 380*130*280 405*90 1 250 800 40 220
FNA-1.15/5.2 3*5.5 1125 5.2 400*130*280 425*90 1 250 800 40 220
FNA-1.2/5.4 3*6 1150 5.4 360*150*330 385*100 1 300 1250 60 220
FNA-1.6/8.4 3*6(L) 1600 8.4 450*150*330 475*100 1 300 1250 75 220
FNA-1.7/9.0 4*5.5 1750 9.0 400*130*280 425*90 1 250 800 40 220
FNF-1.8/9.8 1.5HP(S) 1850 9.8 350*170*330 380*100 1 300 1250 75 220/380
FNF-2.5/11.3 1.5HP(L) 2500 11.3 440*150*420 435*100 1 350 1800 120 220/380
FNF-2.8/13 2HP 3000 13.0 440*170*420 435*100 1 350 1800 120 220/380
FNF-4.4/16.5 2.5HP 4400 16.5 460*170*460 455*100 1 350 1800 120 220/380
FNF-5.5/20 3HP(S) 5500 20 520*190*530 505*125 1 400 3000 120 220/380
FNF-6.0/22 3HP(L) 6500 22 550*200*530 505*160 1 400 3000 120 220/380
FNF-7.2/26 3HP 7800 26 820*165*430 800*120 1 350 2*1800 2*120 220/380
FNF-8.830 4HP 8800 30 950*180*610 930*120 2 400 2*3000 2*120 220/380
FNF-9.0/42 5HP(S) 10800 42 980*200*590 960*140 2 400 2*3000 2*120 220/380
FNF-10.2/50 5HP(L) 14000 50 950*200*530 930*140 2 350 2*3000 2*120 220/380
FNF-15.2/53 6.5HP 15200 53 980*200*590 960*140 2 400 2*3000 2*120 220/380
FNF-19.2/63 7.5HP 19000 63 960*200*630 940*140 2 400 2*3000 2*120 220/380
FNF-21.5/75 8.5HP 22000 75 960*220*630 940*160 2 400 2*3000 2*120 220/380
FNF-24.2/88 10HP 24200 88 960*200*1030 940*140 4 400 4*3000 4*120 220/380
FNF-36/130 15HP 36000 130 1180*200*1030 1160*140 4 400 4*3000 4*120 220/380
FNF-42/150 20HP 42000 150 1140*200*1230 1120*140 4 400 4*3000 4*120 220/380
FNF-50/180 25P 50000 180 1390*200*1330 1370*140 4 500 4*3000 4*250 220/380
FNF-60/210 30HP 60000 210 1390*200*1330 1370*160 4 500 4*3000 4*250 220/380
