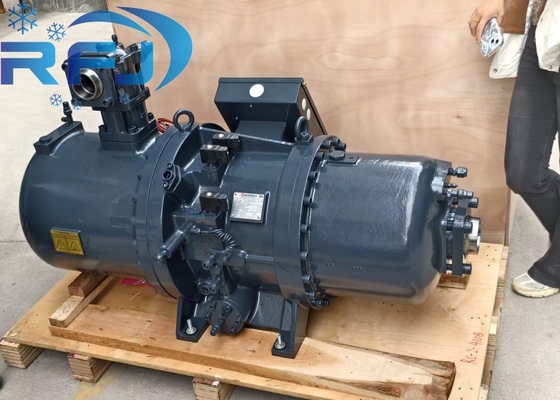

RC-2-410B Hanbell Screw Compressor 121HP Horsepower
Product Paramenters
| Type | Screw Compressor |
| Model | RC-2-410B |
|
Displacement (m3/h) |
407 |
| Horsepower | 121HP |
| Power Supply | 380/420 V-50 Hz-3 ph (208/230 V-380/575 V-60 Hz-3 ph) Y-Δ PWS DOL |
| Weight | 740KG |
| Packing | Playwood Case |
| MOQ | 1 Pcs |
Specifications
Product Features
● The displacement of RC2-E series compressor ranges from 300m³/ h to 930m³/ h. There are 13 types, which can meet the needs of different displacement.
● The motor of RC2 series compressors ensures that the compressor can achieve extremely high operating efficiency under any load within its operating range.
● The motor housing of RC2-E series compressor is specially designed to adapt to the operation of R134a refrigerant under water cooling condition.
● The latest design of the compressor motor is the most suitable motor designed according to R134a refrigerant operating conditions. The low loss silicon steel core and motor cooling channel design can meet the low condensation conditions such as water cooling.
● According to R134a refrigerant characteristics and water cooling conditions, the bearing of RC2-E compressor is re-optimized.
● RC2-E standard new INT69 HBY Diagnose protection module with the functions of reverse phase, lack of equal protection, and a fault indicator to indicate the type of fault
● The lubricating oil forRC2-E is HBR-B08. If customers have special oil requirements, please contact Hanbell.
Company Information
Shenzhen Ruifujie Technology Co., Ltd. specializes in producing and exporting compressors,condensing unit, ice block machine ,spare parts,air-cooler,cold room,etc...for more than 20 years.The brands we supply are Copeland,Danfoss, Bitzer,Carrier,Tecumseh, Hanbell, Hitachi, Daikin, GMCC, LG...
The company has achieved breakthrough development in after-sales service, design, installation, maintenance and technical consulting, and has established long-term close cooperation with many countries around the world.
Based on the tenet of “Devotion, Integrity, Innovation, Dedication”, We will continue to provide Highest quality products for new and old customers.
FAQ
Q: What is your delivery time?
A: The time of delivery is 3-10 working days after payment.
Q: What is your main brands?
A: Copeland, Danfoss, Bitzer, Bock, Bristol, Carel, Carrier, Daikin, Embraco, Emerson, Frascold, Fusheng, GMCC, LG, Hanbell, Misubishi, Refcomp, Panasonic, Secop, Sporlan, Saginomiya.
Q: What is the price?
A: Pls contact me get the best price.
|
|
