| Brand Name: | Ruifujie |
| Model Number: | FNH2-50 |
| MOQ: | 1 |
| Price: | Discussed |
| Delivery Time: | 1 Month |
| Payment Terms: | T/T,Western Union |

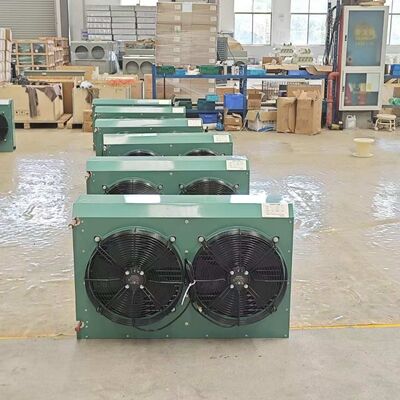

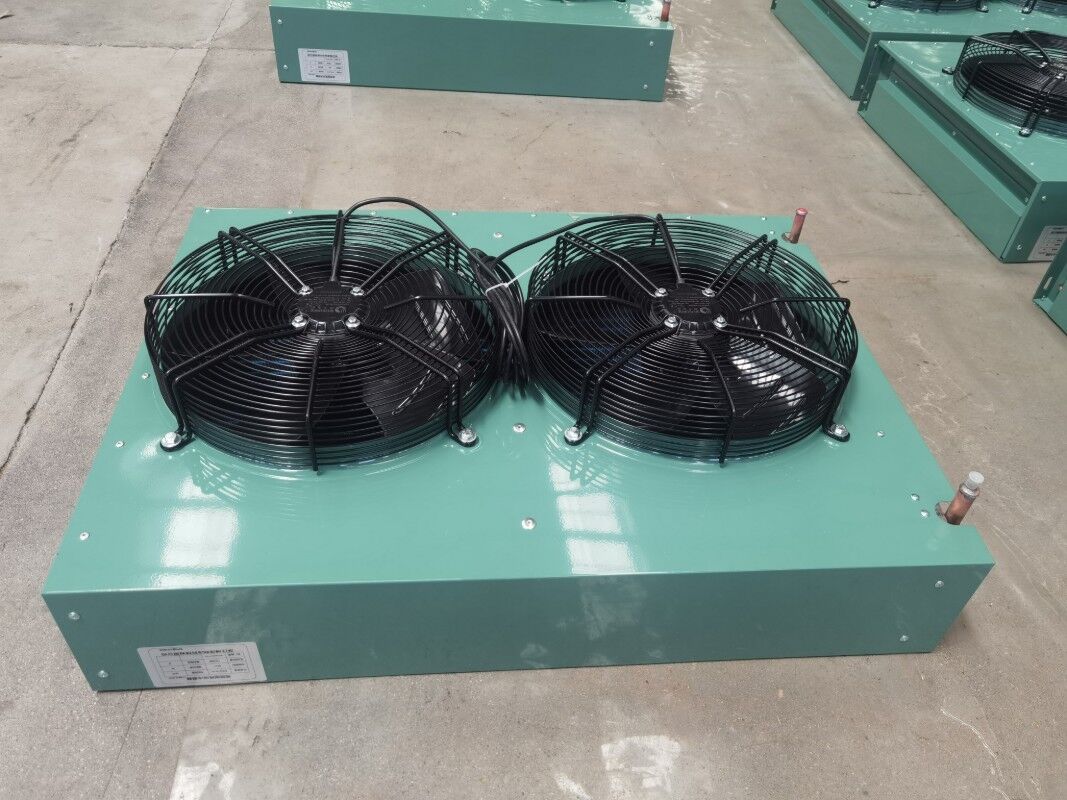

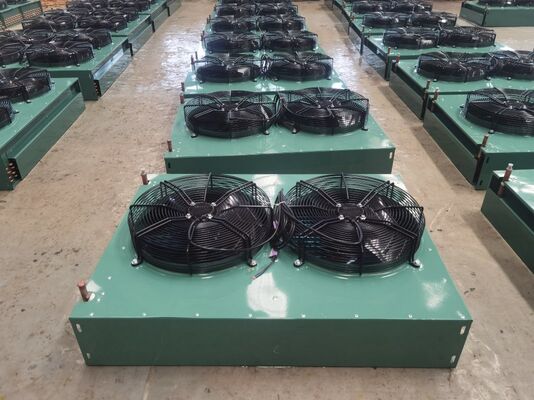

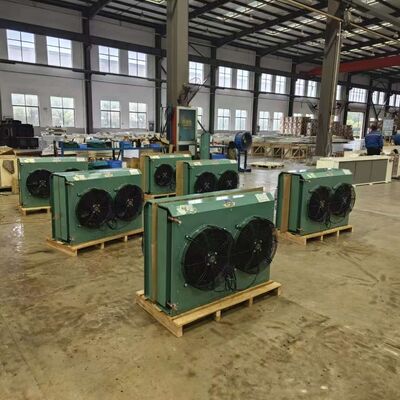

The FNH2-50 R410a condenser is engineered for medium-to-large commercial cold storage, process cooling, and condensing unit assemblies. With a rated heat rejection capacity of 16.5 kW across a 50 m² heat exchange surface, it effectively resolves thermal overload in high-demand refrigeration circuits, maintaining stable operating temperatures during continuous cooling cycles.
Designed to overcome challenges in severe summer ambient conditions that cause elevated head pressure and compressor stress, this high-efficiency R410a condenser features twin 180W axial fans producing 2×3400 m³/h airflow. Combined with strict 3.0 MPa pneumatic gas tightness testing, it guarantees zero refrigerant leakage and maintains continuous pressure control.
Constructed with inner-grooved copper tubes and corrugated aluminum fins in a 5×12 circuit layout, this robust R410a condenser optimizes heat transfer rates while minimizing internal airflow resistance. The powder-coated protective casing shields internal components against atmospheric corrosion in outdoor installations.
| Parameter | Value |
|---|---|
| Model | FNH2-50 |
| Heat Exchange Capacity | 16.5 kW |
| Ring Number | 5×12 |
| Heat Exchange Area | 50 m² |
| Fan Power | 2×180 W |
| Air Volume | 2×3400 m³/h |
| Intake Inlet / Liquid Outlet | 19 / 16mm |
Ruifujie brings over 20 years of expertise to the global refrigeration market as a specialized equipment manufacturer. The company designs and produces scroll, reciprocating, rotary, semi-hermetic, and screw compressor units, as well as integrated systems for cold rooms, quick-freezing, and commercial ice production. Supporting full OEM/ODM customized orders, Ruifujie exports to international clients across the US, UK, and UAE, establishing a strong reputation through technical excellence and dependable cost efficiency.
The 5×12 staggered tube circuit arrangement expands the internal refrigerant flow paths within the 50 m² coil, maximizing heat exchange contact and lowering discharge temperatures under heavy thermal loads.
Yes, the unit is engineered with high-strength copper tubing and tested under 3.0 MPa pneumatic pressure to ensure structural integrity and leak-free performance under elevated working pressures.
The dual 180W axial fan motors generate a strong airflow of 2×3400 m³/h across the fin coils, rapidly removing heat from the system and preventing head pressure spikes in high-temperature environments.
Ruifujie provides a formal quotation within 8 hours after receiving complete project parameters, including required cooling capacity, operating voltage, refrigerant type, and working conditions.
Ruifujie provides a standard 1-year warranty across all product lines.
Supported by more than 20 years of manufacturing experience, Ruifujie offers engineering consultations and precise unit matching for your R410a condenser requirements. We analyze your system thermal loads, compressor specifications, and operating conditions to recommend the most efficient condensing configuration. Send us your project parameters, required quantity, and technical details today to receive an official proposal and quote within 8 hours.
|
|
