| Brand Name: | Ruifujie |
| Model Number: | FNH2-65 |
| MOQ: | 1 |
| Price: | Discussed |
| Delivery Time: | 1 Month |
| Payment Terms: | T/T,Western Union |

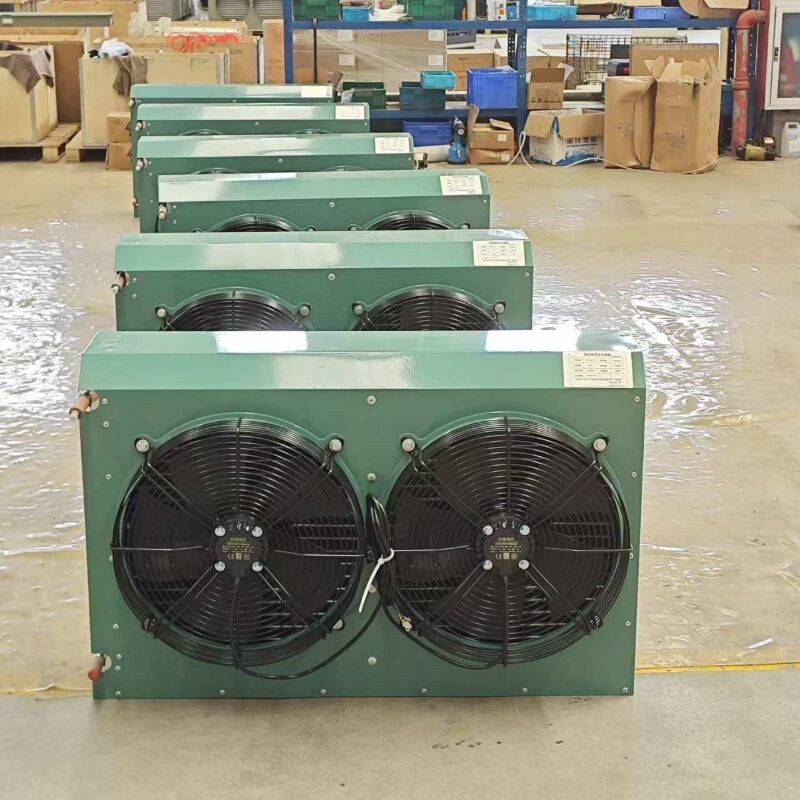

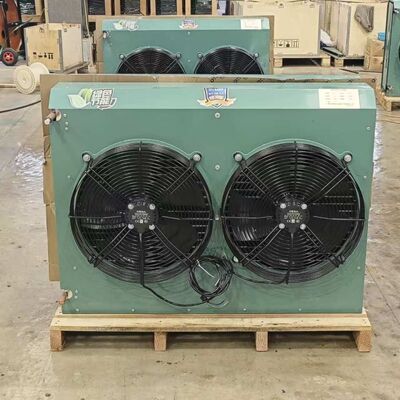

The FNH2-65 condenser for freezer systems is engineered for low-temperature blast freezers, commercial cold chain processing plants, and multi-compressor freezing racks. Delivering a powerful 21.4 kW heat exchange capacity over a 65 m² surface area, this unit rapidly dissipates intense thermal loads during rapid pull-down freezing cycles to maintain steady freezer temperatures.

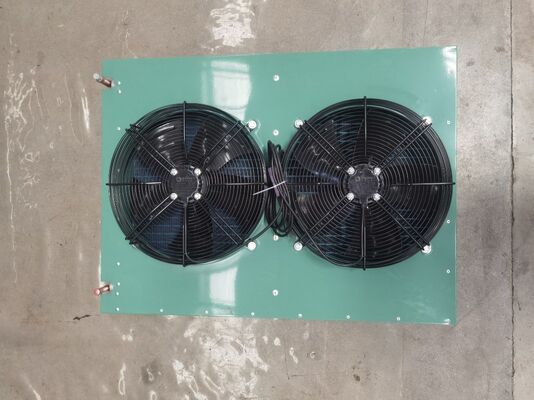

During peak summer operations or heavy pull-down cycles, high heat buildup can cause compressor discharge pressure spikes. To prevent thermal trips and maintain continuous cooling, this high-performance condenser for freezer uses two 450mm axial fans driven by 2×250W motors, producing a massive 2×4800 m³/h forced airflow. Every unit undergoes rigorous 3.0 MPa pneumatic gas tightness testing to guarantee zero leaks.
Designed with inner-grooved copper tubes expanded into corrugated aluminum fins in a 4×16 row pattern, this heavy-duty condenser for freezer optimizes heat exchange efficiency while minimizing internal resistance. Equipped with 22mm intake and 19mm liquid outlet connections and a powder-coated steel housing, it ensures long-term corrosion resistance in harsh outdoor environments.
| Parameter | Value |
|---|---|
| Model | FNH2-65 |
| Heat Exchange Capacity | 21.4 kW |
| Ring Number | 4x16 |
| Heat Exchange Area | 65 m² |
| Fan Power | 2×250 W |
| Air Volume | 2×4800 m³/h |
| Intake Inlet / Liquid Outlet | 22 / 19mm |
With over 20 years of manufacturing excellence, Ruifujie is a trusted supplier of commercial and industrial refrigeration equipment. Our product lines encompass scroll, piston, rotary, semi-hermetic, and screw compressors, alongside integrated cold storage rooms, blast freezers, and ice machines. Supporting full OEM/ODM customization, Ruifujie exports to major international markets including the US, UK, and UAE, earning widespread customer trust through premium quality and reliable technical support.
A1: With a high heat rejection capacity of 21.4 kW and a large 65 m² coil surface, the FNH2-65 handles high thermal pull-down loads typical of low-temperature blast freezers and quick-freezing rooms without risk of pressure overload.
A2: The dual 450mm fan setup delivers a forced air output of 2×4800 m³/h across the 4×16 coil rows, swiftly discharging heat and maintaining stable condensing pressure even during intense summer operating cycles.
A3: Every FNH2-65 unit is subjected to 3.0 MPa pneumatic pressure testing before leaving the factory to ensure structural seam integrity and prevent refrigerant leaks.
A4: Yes, Ruifujie offers optional hydrophilic or epoxy-coated aluminum fins, customized fan voltages, and anti-corrosive cabinet finishes for coastal or chemically demanding environments.
A5: Standard production orders are shipped within 10 to 15 working days. All units are packaged in export-compliant reinforced wooden cases to ensure safe transport via ocean or air freight.
Leveraging more than two decades of industrial cooling experience, Ruifujie provides technical sizing and system integration services to match each condenser for freezer setup to your exact refrigeration requirements. Send us your target freezer room volume, required pull-down speed, and operating conditions today to receive a complete engineering proposal and formal quotation within 8 hours.
|
|
