| Brand Name: | Ruifujie |
| Model Number: | FNH2-70 |
| MOQ: | 1 |
| Price: | Discussed |
| Delivery Time: | 1 Month |
| Payment Terms: | T/T,Western Union |

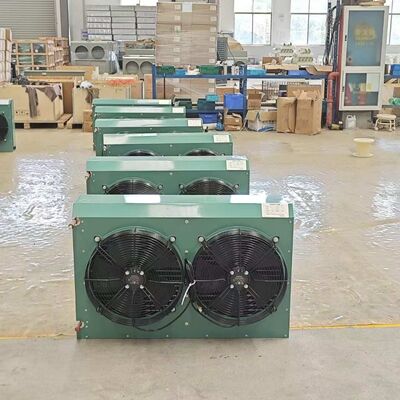

The FNH2-70 deep freezer condenser is engineered for industrial deep freezing tunnels, commercial cold storage facilities, and multi-compressor freezing racks. Featuring a 23.1 kW heat rejection capacity across a 70 m² heat exchange surface, this heavy-duty unit efficiently handles extreme thermal pull-down loads in sub-zero applications, maintaining stable internal temperatures during continuous freezing cycles.
In continuous low-temperature operations, rapid heat accumulation can trigger elevated condensing pressure and compressor safety trips. To resolve these operational challenges, this high-efficiency deep freezer condenser utilizes twin 450mm axial fans driven by 2×250W motors, delivering a powerful 2×4800 m³/h airflow. Every unit undergoes strict 3.0 MPa pneumatic gas tightness testing to guarantee zero gas leakage and reliable pressure stability.
Built with seamless inner-grooved copper tubes mechanically bonded to corrugated aluminum fins in a dense 5×14 circuit configuration, this reliable deep freezer condenser optimizes heat exchange efficiency while minimizing air resistance. Equipped with 22mm intake and 19mm liquid outlet connections and a powder-coated steel outer casing, it ensures long-term corrosion resistance in demanding commercial environments.
| Parameter | Value |
|---|---|
| Model | FNH2-70 |
| Heat Exchange Capacity | 23.1 kW |
| Ring Number | 5x14 |
| Heat Exchange Area | 70 m² |
| Fan Power | 2×250 W |
| Air Volume | 2×4800 m³/h |
| Intake Inlet / Liquid Outlet | 22 / 19mm |
Ruifujie brings over 20 years of manufacturing excellence as a modern refrigeration equipment supplier. The enterprise produces scroll, piston, rotary, semi-hermetic, and screw compressor lines, along with integrated cold storage, blast freezer, and commercial ice equipment. Supporting full OEM/ODM customization, Ruifujie exports products worldwide to key markets across the US, UK, UAE, and Saudi Arabia, winning long-term global customer trust through reliable engineering and competitive value.
The 5-row deep coil structure increases the thermal contact surface to 70 m² within a compact footprint, allowing the condenser to rapidly remove heat during initial pull-down and sub-zero freezing stages.
Driven by 2×250W motors producing a combined 2×4800 m³/h airflow, the fans rapidly clear accumulated heat from the coil, preventing head pressure spikes even in elevated ambient temperatures.
Every FNH2-70 unit is tested under 3.0 MPa pneumatic pressure to verify tube joint integrity, guaranteeing leak-free operation with synthetic refrigerants such as R404A and R507A.
Yes, Ruifujie offers optional hydrophilic or epoxy-coated aluminum fins, customized motor voltages, and special sheet metal finishes to meet unique project specifications.
Standard mass production orders are ready for shipment in 10 to 15 working days, with transit times varying from 15 to 30 days depending on the destination port.
Supported by more than 20 years of thermal engineering expertise, Ruifujie provides technical consultations and tailored unit selection for your deep freezer condenser projects. We evaluate your system cooling capacity, compressor specifications, and ambient operating conditions to deliver an optimized equipment solution.
Contact us today with your target temperature, room dimensions, and order volume to receive a detailed technical package and official quotation within 8 hours.
|
|
