| Brand Name: | Ruifujie |
| Model Number: | FNH4-70 |
| MOQ: | 1 |
| Price: | Discussed |
| Delivery Time: | 1 Month |
| Payment Terms: | T/T,Western Union |

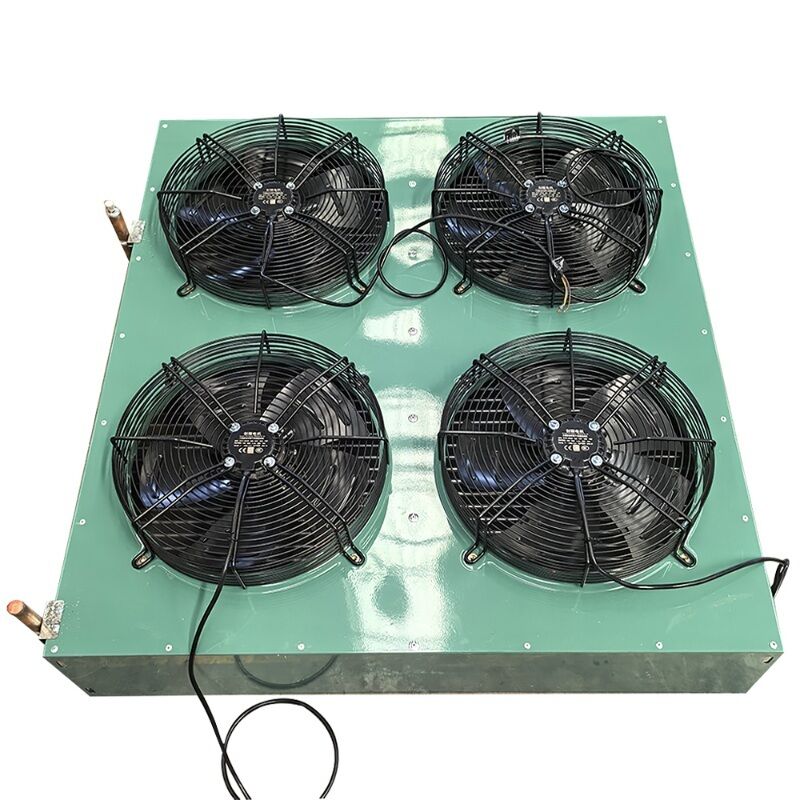

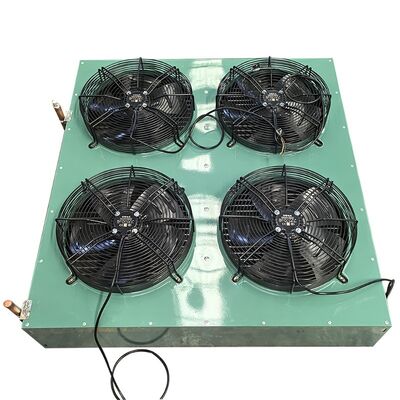

The FNH4-70 AC condenser for sale is engineered for medium-to-large cold storage systems, commercial HVAC chilling plants, and multi-compressor rack configurations. Featuring a 23.1 kW heat exchange capacity and a 70 m² heat exchange area, this unit efficiently dissipates large thermal loads, maintaining system thermal equilibrium and preventing pressure spikes during heavy cooling cycles.
During high-load operation in peak ambient temperatures, insufficient heat removal can lead to elevated condensing pressure and frequent system shutoffs. To overcome these field challenges, this high-performance AC condenser utilizes four 400mm axial fans delivering a total air volume of 4×3400 m³/h, backed by factory 3.0 MPa pneumatic tightness testing to guarantee pressure stability and leak-free performance.
Built with seamless inner-grooved copper tubes expanded into durable aluminum fins in a 4×18 row arrangement, this reliable AC condenser maximizes heat transfer efficiency while offering low airflow resistance. Equipped with 25mm intake and 22mm liquid outlet connections and a powder-coated protective casing, it integrates easily with various commercial compressor brands.
| Parameter | Value |
|---|---|
| Model | FNH4-70 |
| Heat Exchange Capacity | 23.1 kW |
| Ring Number | 4x18 |
| Heat Exchange Area | 70 m² |
| Fan Power | 4×180 W |
| Air Volume | 4×3400 m³/h |
| Intake Inlet / Liquid Outlet | 25 / 22mm |
Backed by more than two decades of industrial leadership, Ruifujie stands as a premier global manufacturer of advanced refrigeration and thermal equipment. Our state-of-the-art product range covers scroll, reciprocating, rotary, semi-hermetic, and screw compressor units, complemented by complete cold room, quick-freezing, and ice-making machinery. With versatile OEM/ODM capabilities and a robust export network spanning North America, Europe, and the Middle East, Ruifujie delivers engineered reliability and outstanding economic efficiency to clients worldwide.
The four-fan setup distributes airflow evenly across the wide 4×18 tube array, delivering a total forced air volume of 4×3400 m³/h to swiftly remove heat from the 70 m² surface area even during high ambient conditions.
With its 25mm intake and 22mm liquid outlet pipe dimensions, the FNH4-70 connects smoothly with scroll, reciprocating, and semi-hermetic compressor racks used in commercial air conditioning and cold room projects.
Each unit undergoes comprehensive 3.0 MPa pneumatic tightness testing to ensure leak-free performance and pressure stability under demanding operating conditions.
Ruifujie offers ocean freight, air freight, and express courier shipping. Products are securely packaged in export-standard wooden cases to ensure safe transit to global ports.
Yes, Ruifujie provides full OEM/ODM customization, including customized casing colors, and multi-language nameplates.
As a direct manufacturer with over 20 years of industry experience, Ruifujie offers competitive factory pricing and flexible order terms for every AC condenser for sale. Whether you require single replacement units or containerized bulk supplies for engineering projects, our team provides full technical assistance and fast logistics coordination. Send us your required quantity, target parameters, and destination details to receive a factory quote within 8 hours.
|
|
