| Brand Name: | Ruifujie |
| Model Number: | FNH4-80 |
| MOQ: | 1 |
| Price: | Discussed |
| Delivery Time: | 1 Month |
| Payment Terms: | T/T,Western Union |

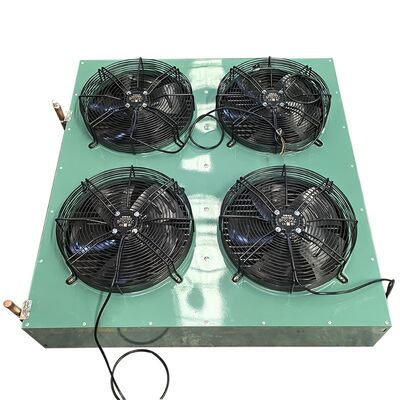

The FNH4-80 cooler condenser is engineered for large commercial cold storage rooms, agricultural processing plants, and central fluid chilling assemblies. Delivering a powerful 26.4 kW thermal dissipation capacity across an expansive 80 m² coil surface, this unit balances system thermal loads during continuous high-load refrigeration cycles.
In high ambient environments, inadequate airflow can lead to elevated condensing pressures and compressor safety cut-offs. To ensure continuous operational reliability, this high-efficiency cooler condenser utilizes four 400mm axial fans powered by 4×180W motors, generating a massive total air volume of 4×3400 m³/h. Every assembly undergoes rigorous 3.0 MPa pneumatic pressure testing before leaving the factory.
Built with seamless inner-grooved copper tubes expanded into corrugated aluminum fins in a dense 4×20 circuit arrangement, this heavy-duty cooler condenser maximizes heat transfer efficiency. Equipped with 25mm intake and 22mm liquid outlet pipe connections along with a powder-coated steel outer casing, it delivers long-term corrosion resistance in harsh outdoor installations.
| Parameter | Value |
|---|---|
| Model | FNH4-80 |
| Heat Exchange Capacity | 26.4 kW |
| Ring Number | 4x20 |
| Heat Exchange Area | 80 m² |
| Fan Power | 4×180 W |
| Air Volume | 4×3400 m³/h |
| Intake Inlet / Liquid Outlet | 25 / 22mm |
Ruifujie is an industry-leading HVAC and commercial cooling equipment manufacturer with a 20-year legacy of manufacturing precision. We design and build comprehensive thermal solutions, including multi-brand compatible scroll, piston, semi-hermetic, and screw compressor systems, alongside commercial cold storage and blast freezing units. Offering complete tailored OEM/ODM manufacturing, Ruifujie serves global distributors and contractors across over 30 countries with uncompromised quality assurance and factory-direct value.
Backed by two decades of refrigeration manufacturing expertise, Ruifujie provides factory-direct bulk supply and custom integration for your cooler condenser project requirements. Whether you need exact unit matching for commercial cold rooms or tailored OEM specifications, our technical team is ready to assist. Contact us today with your cooling capacity requirements and order volume to receive a formal technical proposal and factory quotation within 8 hours.
|
|
