The FNH4-100 industrial condensers are engineered for large-scale cold storage complexes, food processing centers, and multi-compressor industrial refrigeration racks. Delivering a rated heat rejection capacity of 33.1 kW across an expansive 100 m² exchange surface, this unit balances system thermal loads during continuous high-demand operational cycles.

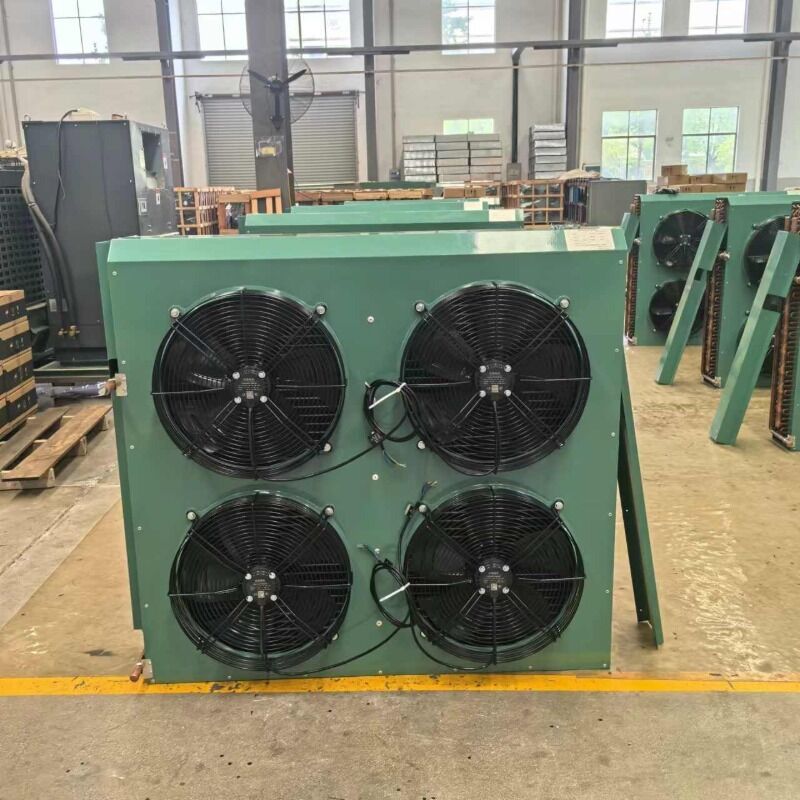

In continuous industrial cooling operations, high summer ambient temperatures can cause discharge pressure surges and system cut-offs. To overcome these operational challenges, these high-performance industrial condensers incorporate four 400mm axial fans driven by 4×180W motors, producing a combined air volume of 4×3400 m³/h. Every unit undergoes strict 3.0 MPa pneumatic pressure testing to guarantee zero refrigerant leakage.

Constructed with seamless inner-grooved copper tubes expanded into corrugated aluminum fins in a dense 4×24 circuit configuration, these heavy-duty industrial condensers maximize heat transfer efficiency. Equipped with 25mm intake and 22mm liquid outlet pipe connections along with a protective powder-coated steel outer frame, they ensure long-term durability in outdoor commercial and industrial installations.

With over 20 years of continuous innovation in commercial cooling technology, Ruifujie delivers end-to-end refrigeration machinery to international markets. Our specialized portfolio encompasses high-performance scroll, rotary, reciprocating, and screw compressors, as well as integrated cold chain storage and commercial ice systems. By combining flexible OEM/ODM design flexibility with rigorous quality standards, Ruifujie has established long-standing partnerships across the US, UK, UAE, and beyond.

A1: The four-fan assembly generates a total forced air output of 4×3400 m³/h, ensuring uniform face velocity across the entire fin package to quickly remove heat during peak load operations.

A2: Yes, the copper tube circuits and 3.0 MPa pressure rating ensure full compatibility with synthetic refrigerants such as R134a, R404A, R507A, and R407C.

A3: Every unit is subjected to 3.0 MPa pneumatic gas tightness testing and circuit inspection at the factory to ensure total seam integrity and pressure retention.

A4: Ruifujie provides options for custom casing colors, and private label nameplates.

A5: Sample orders are dispatched in 3 to 5 working days, while mass production orders complete in 10 to 15 working days. All units are shipped in reinforced, export-standard wooden crates.

With two decades of manufacturing excellence, Ruifujie delivers specialized technical support and complete unit matching for your industrial condensers. We analyze your system thermal loads, compressor specifications, and operating environment to provide an optimal heat rejection package. Contact us today with your technical parameters and project requirements to receive a complete solution and factory quote within 8 hours.
