| Brand Name: | Ruifujie |
| Model Number: | FNH4-160 |
| MOQ: | 1 |
| Price: | Discussed |
| Delivery Time: | 1 Month |
| Payment Terms: | T/T,Western Union |

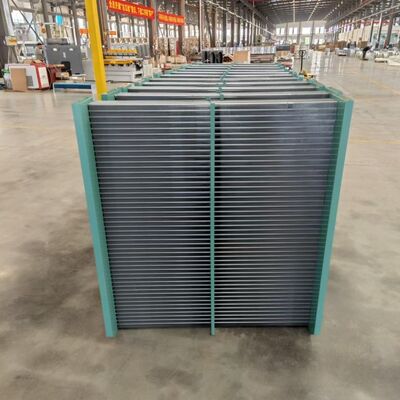

The FNH4-160 deep freezer condenser and performance package features a compact H-type flat-flow structural frame, designed specifically for narrow equipment passages and side-wall bracket installations while maintaining the standard clearance required for proper air intake.
Built with high component interchangeability, it connects effortlessly with single compressor units or multi-compressor racks servicing indoor deep freezing and cold storage spaces up to 160 m². It offers complete compatibility with R134a, R404A, R507A, and R407C refrigerants.
To satisfy demanding industrial applications—such as blast freezing, food processing, agricultural preservation, and chemical cooling—this high-efficiency air-cooled unit offers both window-type and cellular-type aluminum fin options.
Engineers can customize the fin pitch between 1.7mm and 3.0mm, allowing facilities to prevent frost bridging during low-temperature deep freezer pull-down cycles, minimize dust accumulation, and optimize airflow passages.
Designed to withstand the intense head pressures typical of heavy-duty deep freezing systems, every condenser unit undergoes rigorous 3.0 MPa pneumatic gas tightness testing before factory dispatch to guarantee leak-free reliability.
Outfitted with four axial fans powered by optional low-noise external rotor motors, the assembly ensures powerful forced-air thermal dissipation while maintaining quiet operation in noise-sensitive commercial environments.
| Parameter | Value |
|---|---|
| Model | FNH4-160 |
| Heat Exchange Capacity | 52.8 kW |
| Ring Number | 6x24 |
| Heat Exchange Area | 160 m² |
| Fan Power | 4×250 W |
| Air Volume | 4×4800 m³/h |
| Intake Inlet / Liquid Outlet | 25 / 22mm |
With over 20 years of expertise in refrigeration engineering and global supply, Shenzhen Ruifujie Technology Co., Ltd. specializes in R&D, production, and technical consulting for modern commercial cooling systems.
Our comprehensive portfolio spans hermetic scroll, semi-hermetic piston, and screw compressors to air-cooled condensers, condensing units, and turnkey cold storage installations. Backed by strong technical capabilities and international project experience, Ruifujie delivers reliable, energy-efficient equipment engineered for complex thermal demands worldwide.
Whether you are evaluating the deep freezer condenser price for a new industrial cold storage construction or seeking an OEM heat exchanger supplier for commercial refrigeration racks, Ruifujie provides factory-direct quotes and dedicated technical matching. Send us your required cooling capacity, operating voltage, refrigerant choice, and operating temperature conditions today to receive a complete technical proposal and formal quotation within 8 hours.
|
|
