| Brand Name: | Ruifujie |
| Model Number: | FNH4-180 |
| MOQ: | 1 |
| Price: | Discussed |
| Delivery Time: | 1 Month |
| Payment Terms: | T/T,Western Union |
The FNH4-180 low temp condenser features a space-saving H-type flat-flow structural design, engineered for narrow walkways or side-wall bracket mounting while maintaining the required standard clearance from walls for unrestricted air intake. Built with high scientific interchangeability, it connects seamlessly with single compressor units (scroll, piston, semi-hermetic, and screw) servicing low-temperature freezing spaces up to 180 m². It provides full refrigerant compatibility with R134a, R404A, R507A, and R407C.
To address the operational challenges of low-temperature freezer storage, food processing, agricultural preservation, and chemical plants, this high-efficiency unit offers both window-type and cellular-type aluminum fin options. Engineers can customize the fin pitch between 1.7mm and 3.0mm, allowing low-temperature refrigeration systems to slow down frost bridging, reduce dust clogging, and maintain smooth airflow passages during deep pull-down cycles.

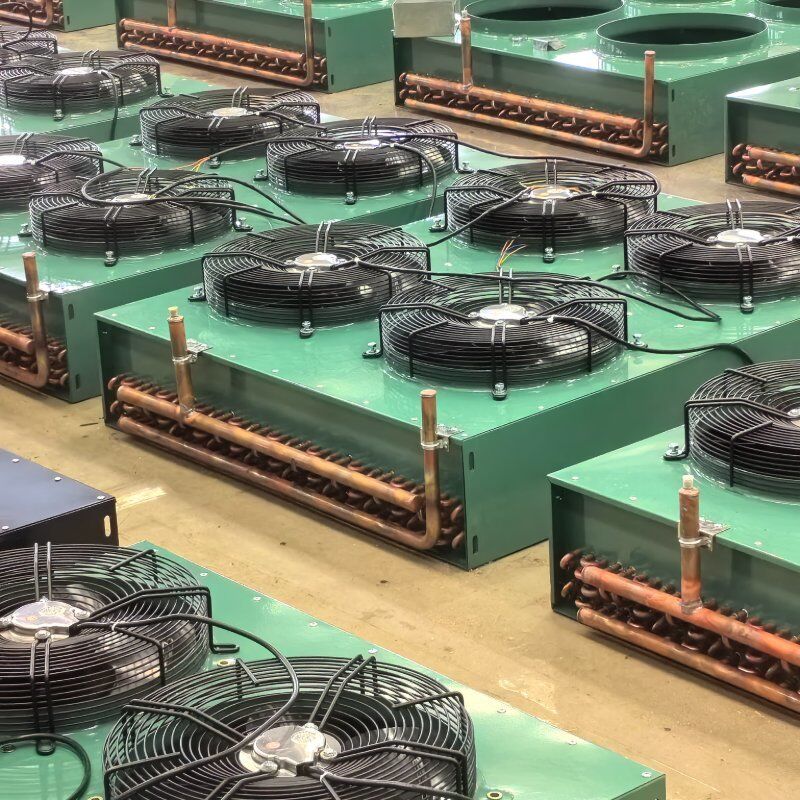

Built to sustain high operating discharge pressures in continuous low-temperature duty, every low temp condenser undergoes strict 3.0 MPa pneumatic gas tightness testing before leaving the factory to ensure leak-free quality. Outfitted with four axial fans powered by low-noise external rotor motors, the assembly delivers high air volume heat dissipation while keeping motor noise compliant with commercial standards.
| Parameter | Value |
|---|---|
| Model | FNH4-180 |
| Heat Exchange Capacity | 59.4 kW |
| Ring Number | 6x24 |
| Heat Exchange Area | 160 m² |
| Fan Power | 4×250 W |
| Air Volume | 4×4800 m³/h |
| Intake Inlet / Liquid Outlet | 28 / 25mm |
Shenzhen Ruifujie Technology Co., Ltd. is a modern enterprise dedicated to high-efficiency thermal management and cold chain equipment engineering. With over two decades of technical expertise, our product matrix includes hermetic scroll, semi-hermetic piston, rotary, and screw compressor units alongside commercial air coolers and custom condensers. Supported by rigorous quality inspection and responsive technical guidance, Ruifujie delivers engineered reliability and competitive direct supply to commercial refrigeration contractors across more than 30 countries.
Whether you are upgrading an existing multi-compressor rack or sourcing a factory-direct low temp condenser for a new commercial cold room facility, Ruifujie provides dedicated technical unit matching and direct supply. Send us your target cooling capacity, operating voltage, refrigerant selection, and working conditions today to receive a complete technical proposal and official quote within 8 hours.
|
|
