FNV-100 Split V-Type Air Cooled R407C Condenser

Name: FNV-100 Split V-Type Air Cooled R407C Condenser
Brand: Shenzhen Ruifujie Technology Co., Ltd.
SKU: FNV-100
Price: 1.00 USD
Availability: InStock

Brand Name:	Ruifujie
Model Number:	FNV-100
MOQ:	1
Price:	Discussed
Delivery Time:	1 Month
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

MOQ:

1Sets

Heat Exchange Area:

100㎡

Fan Power:

2x250W

Heat Exchange Capacity:

33.1KW

Model:

FNV-100

Application:

Cold Room,Freezer, HVAC System

Warranty:

1year

Packing:

Woodcase Packing

Packaging Details:

WOODEN CASE

Supply Ability:

100PC

Highlight:

V-Type air cooled condenser

R407C refrigerant condenser

split air cooled condenser

Product Description

FNV-100 Split V-Type Air Cooled R407C Condenser

Product Advantages

Reliable Thermal Management for R407C Systems

The FNV-100 is a vertical V-type air-cooled condenser engineered for commercial refrigeration condensing units, medium-sized cold room facilities, and industrial air conditioning mainframes. Specifically optimized for R407C refrigerant applications (as well as R134a, R404A, and R507A), this unit delivers a nominal heat exchange capacity of 33.1 kW, ensuring stable condensing pressure and preventing thermal overloading in high-ambient environments.

High-Efficiency Airflow and Heat Dissipation

In commercial cooling operations, inadequate heat dissipation leads to elevated discharge pressure, severe energy waste, and frequent compressor trips. The FNV-100 addresses these performance bottlenecks through a 100 m² high-density heat exchange coil, a 3×14 multi-circuit tube arrangement, and two φ450 mm axial fan motors generating a combined air volume of 9,600 m³/h (2×4,800 m³/h). This optimized airflow layout accelerates heat removal while keeping total fan power consumption to a low 2×250 W.

Heavy-Duty Construction and Leak-Free Testing

Constructed with seamless copper tubes and corrugated aluminum fins, the FNV-100 offers superior heat transfer efficiency and long-term operating durability. Every unit undergoes rigorous pneumatic pressure tightness testing at 3.0 MPa under water to guarantee zero refrigerant leakage before leaving the factory. Its compact footprint (1450 × 870 × 1550 mm) and corrosion-resistant coated housing make it ideal for demanding outdoor installations.

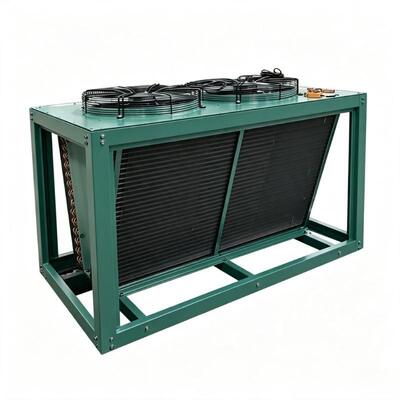

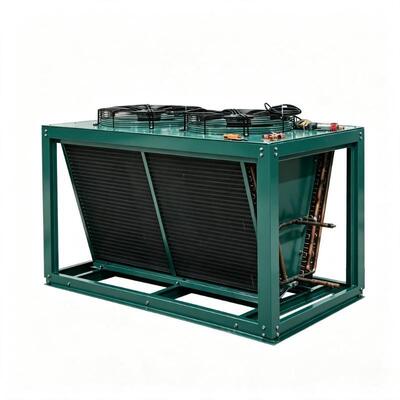

Product Images

Technical Specifications

Parameter	Value
Model	FNV-100
Heat Exchange Capacity	33.1 kW
Heat Exchange Area	100 m²
Ring Number	3x14
Fan Power	2×250 W
Air Volume	2×4800 m³/h
Intake Inlet / Liquid Outlet	25 / 19mm

Company Profile

Ruifujie is a professional refrigeration machinery manufacturer backed by over 20 years of industry experience. We specialize in producing scroll, piston, rotary, semi-hermetic, and screw compressors, alongside cold storage installations, freezing systems, and commercial ice machines. Supporting worldwide B2B buyers, Ruifujie provides flexible OEM/ODM customization services. Our products are exported across the globe to regions including North America, Europe, the Middle East, Russia, and Saudi Arabia, maintaining an outstanding reputation for quality performance and excellent cost efficiency.

Packaging and Shipping

Frequently Asked Questions

Q1: What thermal dissipation capacity does the FNV-100 air-cooled condenser provide?

A1: The FNV-100 yields a nominal heat exchange capacity of 33.1 kW across a 100 m² heat transfer area, making it suitable for commercial chilling units and cold room mainframes.

Q2: What fan setup is used on the FNV-100 to ensure effective cooling performance?

A2: The unit is equipped with two φ450 mm external rotor fans drawing 2×250 W power, delivering a total airflow of 9,600 m³/h for effective heat dissipation.

Q3: How does the FNV-100 ensure reliable sealing under continuous high operating pressure?

A3: Every FNV-100 condenser undergoes 3.0 MPa pneumatic pressure tightness testing in water tanks during quality control to confirm zero refrigerant leaks.

Q4: What is the minimum order quantity (MOQ) and production lead time for Ruifujie condensers?

A4: There is no MOQ requirement for in-stock items, while volume production orders are open for negotiation. In-stock samples ship within 3 days, and complete batch orders require 10 to 15 working days.

Q5: What warranty terms and payment methods are available for overseas transactions?

A5: All Ruifujie products carry a 1-year full warranty. Payments are accepted in USD via T/T or Western Union under standard FOB Shenzhen or EXW trade terms.

Technical Selection Support

Backed by two decades of industrial manufacturing experience, Ruifujie assists international trade clients with specialized equipment selection for any cooling facility project. Share your system details with us—including required heat dissipation capacity, operating refrigerant, ambient temperature, and order quantity—and our engineering specialists will provide detailed sizing advice and a complete quote within 8 hours.
