FNV-130 42.9KW R134a Cold Room Refrigeration Commercial Freezer Condenser

Name: FNV-130 42.9KW R134a Cold Room Refrigeration Commercial Freezer Condenser
Brand: Shenzhen Ruifujie Technology Co., Ltd.
SKU: FNV-130
Price: 1.00 USD
Availability: InStock

Brand Name:	Ruifujie
Model Number:	FNV-130
MOQ:	1
Price:	Discussed
Delivery Time:	1 Month
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

MOQ:

1Sets

Heat Exchange Area:

130㎡

Fan Power:

2x414W

Heat Exchange Capacity:

42.9KW

Refrigerant:

R134a, R404A, R507A, R407C

Application:

Cold Room,Freezer, HVAC System

Warranty:

1year

Packing:

Woodcase Packing

Packaging Details:

WOODEN CASE

Supply Ability:

100PC

Highlight:

42.9KW R134a commercial freezer condenser

FNV-130 cold room refrigeration condenser

air cooled condenser with R134a refrigerant

Product Description

FNV-130 42.9KW R134a Cold Room Refrigeration Commercial Freezer Condenser

High-Performance Commercial Freezing Solutions

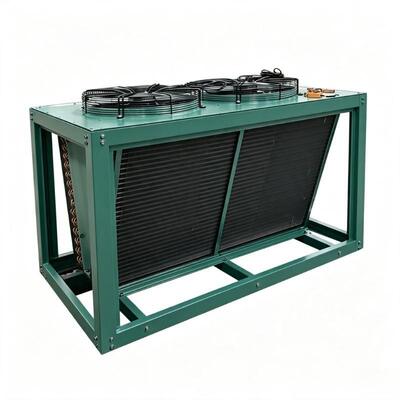

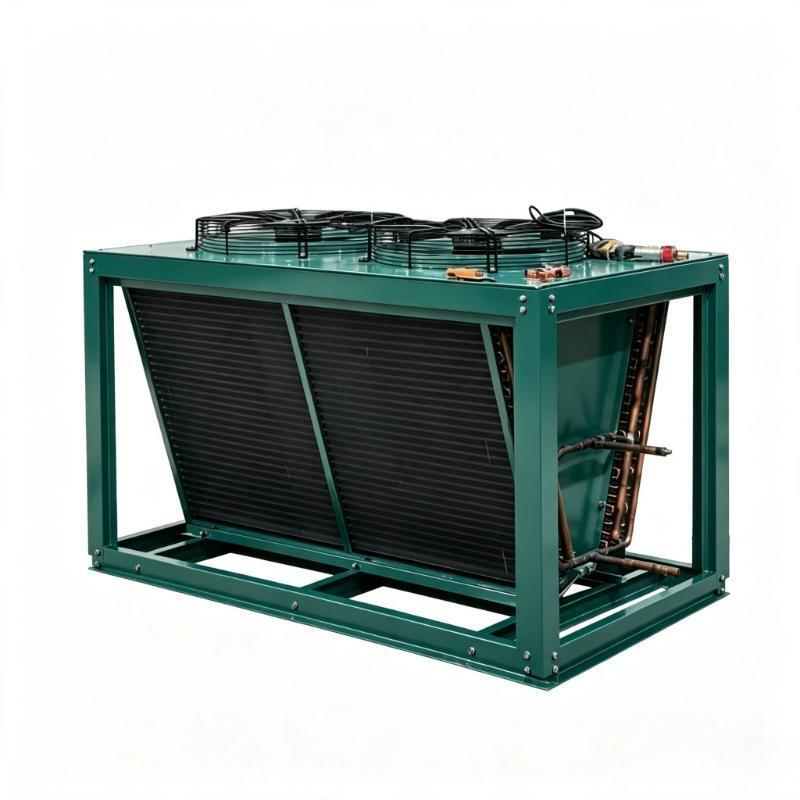

The FNV-130 is a V-type split air-cooled commercial freezer condenser designed for large commercial cold rooms, food freezing plants, and walk-in freezer systems. Delivering a nominal 42.9 kW heat exchange capacity across a 130 m² heat transfer surface, it ensures rapid condensing of refrigerants such as R404A, R507A, R134a, and R22, effectively stabilizing operating pressure during continuous freezing cycles.

Efficient Thermal Transfer and Power Conservation

Commercial freezer installations frequently face high system condensing temperatures, elevated power bills, and system efficiency loss under high ambient loads. The FNV-130 addresses these operational issues through a 4×12 multi-circuit copper tube layout paired with two φ500 mm axial fans producing a massive 13,000 m³/h air volume (2×6,500 m³/h). This engineered airflow design accelerates heat rejection while maintaining low total fan power consumption at 2×414 W, cutting overall system operating expenses.

Durable Build and Certified Leak Prevention

Engineered with high-grade copper tubes mechanically expanded into corrugated aluminum fins, the FNV-130 offers outstanding thermal conductivity and extended operational life. Each unit undergoes strict 3.0 MPa pneumatic pressure tightness testing in water tanks prior to factory dispatch, ensuring absolute leak-free safety under demanding head pressure. Its powder-coated protective casing resists corrosion and rust, making it suitable for tough commercial environments.

Product Images

Technical Specifications

Parameter	Value
Model	FNV-130
Heat Exchange Capacity	42.9 kW
Heat Exchange Area	130 m²
Ring Number	4x12
Fan Power	2×414 W
Air Volume	2×6500 m³/h
Intake Inlet / Liquid Outlet	25 / 19mm

Company Profile

Ruifujie is an industry-leading refrigeration machinery supplier with over 20 years of expertise. Our diverse product lineup includes scroll, reciprocating, rotary, semi-hermetic, and screw refrigeration compressors, alongside full cold storage facilities, quick-freezing equipment, and commercial ice machines. Serving B2B clients worldwide, Ruifujie offers full OEM/ODM manufacturing customization. Our equipment is exported to key international markets including the United States, Russia, the United Kingdom, UAE, and Saudi Arabia, recognized for dependable quality and competitive pricing.

Packaging and Shipping

Frequently Asked Questions

Q1: What heat dissipation capacity does the commercial freezer condenser provide?

A1: The FNV-130 delivers a nominal heat exchange capacity of 42.9 kW with a 130 m² exchange surface, ideal for commercial freezers and cold storage condensing units.

Q2: What fan setup and airflow rating are featured on the FNV-130?

A2: The unit is equipped with two φ500 mm axial fans operating at 2×414 W power, supplying a total airflow of 13,000 m³/h for optimal heat dissipation.

Q3: What factory pressure testing procedure does the condenser undergo?

A3: Every condenser undergoes a 3.0 MPa pneumatic pressure tightness test under water to guarantee zero leakage under high system operating pressures.

Q4: What are the MOQ and lead time policies for Ruifujie commercial equipment?

A4: There is no MOQ requirement for standard in-stock inventory, while bulk production quantities can be negotiated. Sample items ship within 3 days, and batch orders take 10 to 15 working days.

Q5: What warranty terms and payment methods are supported for international orders?

A5: All Ruifujie products carry a 1-year warranty. Payments are accepted in USD via T/T or Western Union under FOB Shenzhen or EXW trade terms.

Distributor Partnership

Backed by over two decades of manufacturing leadership, Ruifujie delivers reliable commercial freezer condensers engineered for long-term performance. Share your purchasing requirements, including required cooling capacity, refrigerant preferences, and target order quantity, and our technical team will respond with a tailored cooperation proposal within 8 hours.
