FNV-180 V-Type Commercial Air Cooled Refrigeration AC Condenser on Roof

Name: FNV-180 V-Type Commercial Air Cooled Refrigeration AC Condenser on Roof
Brand: Shenzhen Ruifujie Technology Co., Ltd.
SKU: FNV-180
Price: 1.00 USD
Availability: InStock

Brand Name:	Ruifujie
Model Number:	FNV-180
MOQ:	1
Price:	Discussed
Delivery Time:	1 Month
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

MOQ:

1Sets

Heat Exchange Area:

180㎡

Fan Power:

2x600W

Heat Exchange Capacity:

59.4KW

Refrigerant:

R134a, R404A, R507A, R407C

Application:

Cold Room,Freezer, HVAC System

Warranty:

1year

Packing:

Woodcase Packing

Packaging Details:

WOODEN CASE

Supply Ability:

100PC

Highlight:

V-Type commercial air cooled condenser

Roof-mounted refrigeration AC condenser

FNV-180 air cooled condenser

Product Description

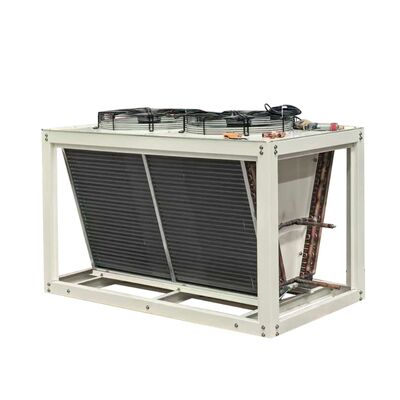

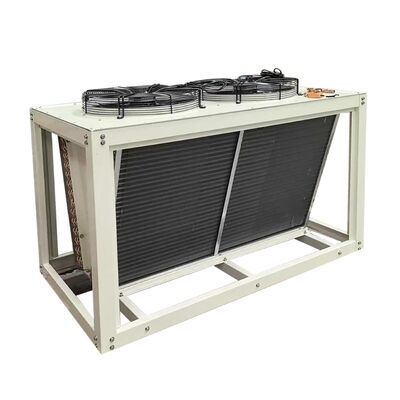

FNV-180 V-Type Commercial Air Cooled Refrigeration AC Condenser on Roof

High-Capacity Outdoor Rooftop Thermal Solution

The FNV-180 is a heavy-duty V-type split air-cooled condenser engineered specifically for rooftop installations on commercial buildings, industrial plants, and medium-to-large cold storage units. Functioning as an efficient outdoor AC condenser on roof platforms, it delivers a 59.4 kW nominal heat dissipation capacity across a 180 m² heat transfer surface, maintaining stable condensing pressures for R407C, R404A, R507A, R134a, and R22 systems under continuous thermal loads.

Optimized Airflow Dynamics and Thermal Clearance

Rooftop cooling equipment frequently encounters harsh operational conditions, including high solar radiation, severe ambient heat, and airflow resistance that cause high discharge pressure and compressor overheating. The FNV-180 resolves these environmental challenges through a 4×14 multi-circuit copper tube geometry and two φ550 mm axial fans producing a total air volume of 2×8,300 m³/h. Operating at 2×600 W, these fans deliver rapid heat ejection to prevent unexpected high-pressure trips and reduce energy consumption.

Corrosion-Resistant Build for Outdoor Protection

Constructed with inner-grooved seamless copper tubes mechanically expanded into corrugated aluminum fins, the FNV-180 ensures high thermal conductivity and long service life. Every unit undergoes strict 3.0 MPa pneumatic pressure tightness testing in water tanks prior to shipment to ensure zero refrigerant leakage under high operating pressures. Its outer casing is protected by electrostatic powder coating to withstand weather elements, UV exposure, and industrial atmospheric corrosion.

Technical Specifications

Parameter	Value
Model	FNV-180
Heat Exchange Capacity	59.4 kW
Heat Exchange Area	180 m²
Ring Number	4x14
Fan Power	2×600 W
Air Volume	2×8300 m³/h
Intake Inlet / Liquid Outlet	25 / 19mm

Company Profile

With over 20 years of continuous innovation in commercial and industrial refrigeration equipment, Ruifujie stands as a trusted manufacturing partner for global buyers. Our comprehensive portfolio includes scroll, piston, rotary, semi-hermetic, and screw refrigeration compressors, together with modular cold storage units, quick-freezers, and commercial ice machines. Supporting global B2B procurement, Ruifujie offers full OEM/ODM manufacturing customization. Our systems are exported worldwide to major markets across the United States, Russia, the United Kingdom, Saudi Arabia, and the UAE, earning high customer approval for engineering reliability and competitive value.

Packaging and Shipping

Frequently Asked Questions

Q1: What thermal capacity does the FNV-180 rooftop AC condenser deliver?

A1: The FNV-180 provides a nominal heat dissipation capacity of 59.4 kW across a 180 m² heat exchange surface, ideal for commercial HVAC rooftop installations and medium-to-large cold storage condensing units.

Q2: How does the FNV-180 maintain cooling performance under harsh outdoor rooftop conditions?

A2: Equipped with two heavy-duty φ550 mm axial fans delivering a combined airflow of 16,600 m³/h at 2×600 W power, the unit rapidly dissipates thermal load even under direct solar exposure and high ambient temperatures.

Q3: What factory leak-testing standards are conducted on the FNV-180 coil assembly?

A3: Every FNV-180 condenser undergoes 3.0 MPa pneumatic air pressure tightness testing in water tanks during quality inspection to ensure total structural sealing.

Q4: What is the MOQ policy and delivery schedule for Ruifujie commercial equipment?

A4: In-stock inventory has no minimum order requirement, while customized volume orders can be negotiated. Sample orders ship within 3 days, and complete production orders are fulfilled in 10 to 15 working days.

Q5: What payment methods and warranty terms are available for international orders?

A5: All Ruifujie equipment includes a 1-year full warranty. We accept USD payments via T/T and Western Union under FOB Shenzhen or EXW trade terms.

Long-Term Cooperation Terms

Backed by 20 years of manufacturing expertise, Ruifujie provides dependable rooftop condenser configurations tailored for international distributors and engineering contractors. Send us your project requirements—including cooling load, operating refrigerant, ambient conditions, and purchase quantity—and our engineering team will deliver a comprehensive proposal and quote within 8 hours.
