| Brand Name: | Ruifujie |
| Model Number: | FNV-260 |
| MOQ: | 1 |
| Price: | Discussed |
| Delivery Time: | 1 Month |
| Payment Terms: | T/T,Western Union |

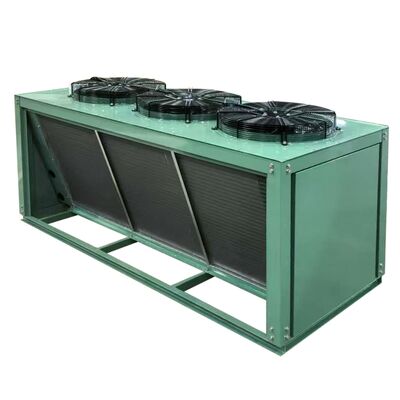

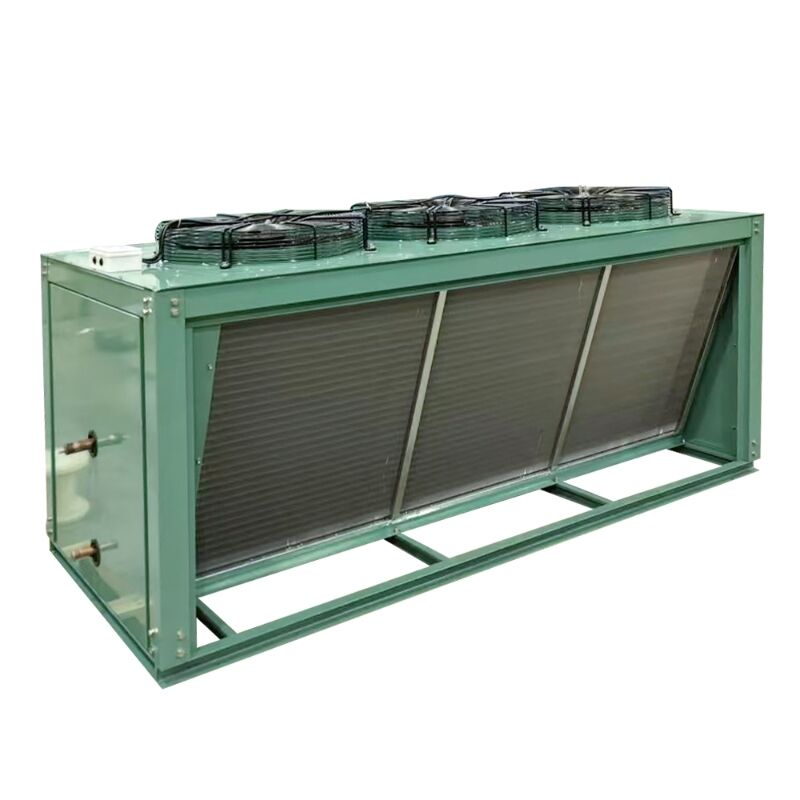

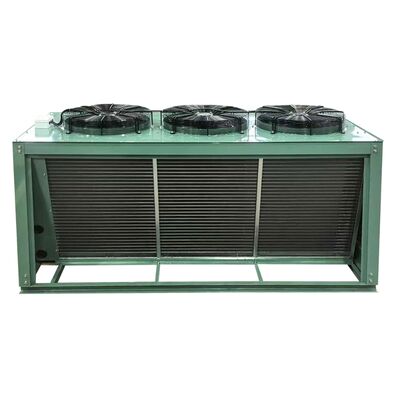

The FNV-260 is a heavy-duty V-type split air-cooled condenser engineered for commercial central air conditioner systems, industrial chillers, and large-scale cold room facilities. Delivering a nominal 85.8 kW heat exchange capacity across an extensive 260 m² surface area, this unit maintains optimal condensing pressure for systems operating with R407C, R404A, R507A, R134a, and R22 refrigerants under demanding cooling loads.
Large air conditioner mainframes frequently face severe heat buildup, elevated discharge head pressure, and high electricity costs during peak summer temperatures. The FNV-260 resolves these cooling challenges through a 4×16 multi-circuit copper coil geometry and three φ550 mm axial fans producing a massive total air volume of 24,900 m³/h. Operating at 3×600 W motor power, this system ensures rapid heat dissipation while optimizing overall energy efficiency.
Constructed with inner-grooved seamless copper tubing mechanically expanded into corrugated aluminum fins, the FNV-260 guarantees high thermal conductivity and extended operational life in outdoor environments. Every unit undergoes strict 3.0 MPa pneumatic pressure tightness testing in water tanks prior to shipment to ensure absolute leak-free safety. Its electrostatic powder-coated protective casing effectively resists weather exposure, UV radiation, and atmospheric corrosion.
| Parameter | Value |
|---|---|
| Model | FNV-260 |
| Heat Exchange Capacity | 85.8kW |
| Heat Exchange Area | 260 m² |
| Ring Number | 4x16 |
| Fan Power | 3×600 W |
| Air Volume | 3×8300 m³/h |
| Intake Inlet / Liquid Outlet | 28 / 22mm |
Ruifujie is an established refrigeration machinery manufacturer with over two decades of engineering expertise. Our comprehensive portfolio includes scroll, reciprocating, rotary, semi-hermetic, and screw refrigeration compressors, together with modular cold storage packages, quick-freezing systems, and commercial ice machines. Serving global B2B procurement partners, Ruifujie provides adaptable OEM/ODM manufacturing options. Our equipment is exported worldwide to major markets across North America, Europe, the Middle East, Russia, and Saudi Arabia, earning strong customer trust for engineering reliability and competitive value.
A1: The three φ550 mm fan motors are built with IP55 moisture-proof protection and F-class thermal insulation, ensuring stable heat dissipation even when exposed to direct ambient temperatures above 45°C.
A2: The unit utilizes a reinforced V-frame steel casing with low-center-of-gravity side mounting brackets and an electrostatic powder coating that protects the structure against high wind forces, vibrations, and weather degradation.
A3: The balanced multi-circuit flow paths lower refrigerant-side pressure drop while extending heat contact time, promoting thorough liquid subcooling and preventing gas flash in the liquid line.
A4: There is no MOQ for standard in-stock inventory, while bulk production quantities can be negotiated. Standard sample items ship within 3 days, and complete batch orders are fulfilled in 10 to 15 working days.
A5: All Ruifujie equipment includes a 1-year full warranty. Payments are accepted in USD via T/T or Western Union under standard FOB Shenzhen or EXW trade terms.
Backed by 20 years of manufacturing leadership, Ruifujie provides custom air-cooled condenser configurations tailored to your specific air conditioning and refrigeration facility needs. Send us your project parameters--including required heat dissipation capacity, target refrigerant, ambient operating temperature, and order quantity--and our engineering specialists will issue a comprehensive solution and quote within 8 hours.
|
|
