| Brand Name: | Ruifujie |
| Model Number: | FNV-280 |
| MOQ: | 1 |
| Price: | Discussed |
| Delivery Time: | 1 Month |
| Payment Terms: | T/T,Western Union |

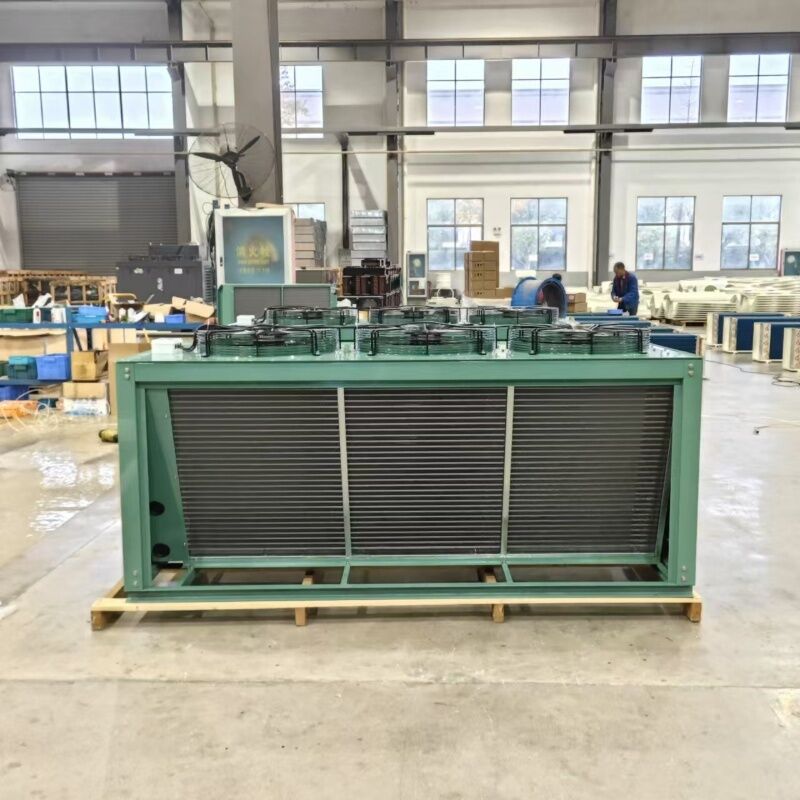

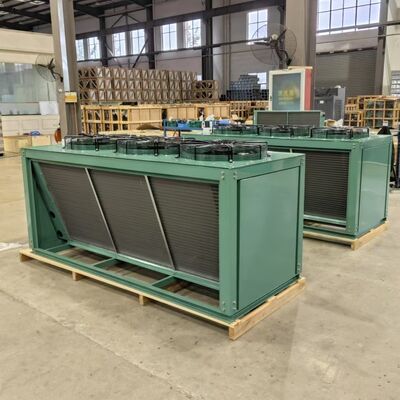

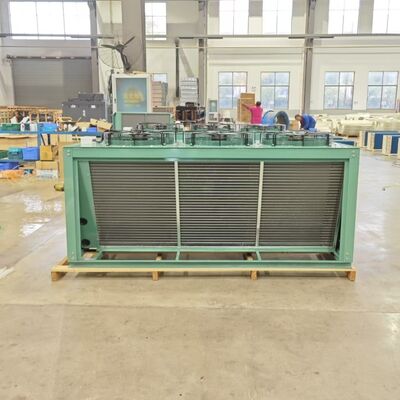

The FNV-280 is a heavy-duty V-type split air-cooled condenser engineered specifically for commercial heat pump air conditioner mainframes, large industrial water chillers, and district cooling/heating installations. Delivering a nominal 92.4 kW heat exchange capacity across an expansive 280 m² surface area, it provides robust condensing stability across multi-season thermal demands when operating with R407C, R404A, R507A, R134a, and R22 refrigerants.
Large-scale heat pump and air conditioning systems often face severe head pressure spikes and excessive electrical consumption during extreme outdoor ambient conditions. The FNV-280 solves these operational challenges with its 4×16 multi-circuit copper tube geometry and three heavy-duty φ600 mm axial fan motors. Delivering a massive total air volume of 29,400 m³/h at 3×780 W motor power, it ensures rapid heat rejection while keeping total system energy consumption optimized.
Constructed with inner-grooved copper tubes mechanically expanded into high-efficiency aluminum fins, the FNV-280 guarantees exceptional thermal conductivity and long service life. Every coil assembly undergoes 3.0 MPa pneumatic pressure tightness testing in water tanks to ensure complete leak-free safety under continuous load cycling. Featuring large-diameter refrigerant connection pipes and an electrostatic powder-coated casing, it resists harsh weather, UV rays, and outdoor industrial environments.
| Parameter | Value |
|---|---|
| Model | FNV-280 |
| Heat Exchange Capacity | 92.4kW |
| Heat Exchange Area | 280 m² |
| Ring Number | 4x16 |
| Fan Power | 3×780 W |
| Air Volume | 3×9800 m³/h |
| Intake Inlet / Liquid Outlet | 35 / 25mm |
Ruifujie is an established refrigeration machinery manufacturer with over two decades of technical expertise. We produce scroll, reciprocating, rotary, semi-hermetic, and screw refrigeration compressors, together with modular cold storage packages, quick-freezing equipment, and commercial ice machines. Supporting global B2B procurement, Ruifujie offers full OEM/ODM manufacturing customization. Our equipment is exported across key international markets including North America, Europe, the Middle East, Russia, and Saudi Arabia, recognized for robust build quality and outstanding cost efficiency.
Backed by 20 years of commercial refrigeration manufacturing, Ruifujie assists global engineering contractors and equipment distributors with custom condenser selection. Share your project parameters with us--including required heat dissipation capacity, target refrigerant, ambient operating temperature, and order quantity--and our technical team will deliver an integrated system recommendation and direct quote within 8 hours.
|
|
| Brand Name: | Ruifujie |
| Model Number: | FNV-280 |
| MOQ: | 1 |
| Price: | Discussed |
| Packaging Details: | WOODEN CASE |
| Payment Terms: | T/T,Western Union |
The FNV-280 is a heavy-duty V-type split air-cooled condenser engineered specifically for commercial heat pump air conditioner mainframes, large industrial water chillers, and district cooling/heating installations. Delivering a nominal 92.4 kW heat exchange capacity across an expansive 280 m² surface area, it provides robust condensing stability across multi-season thermal demands when operating with R407C, R404A, R507A, R134a, and R22 refrigerants.
Large-scale heat pump and air conditioning systems often face severe head pressure spikes and excessive electrical consumption during extreme outdoor ambient conditions. The FNV-280 solves these operational challenges with its 4×16 multi-circuit copper tube geometry and three heavy-duty φ600 mm axial fan motors. Delivering a massive total air volume of 29,400 m³/h at 3×780 W motor power, it ensures rapid heat rejection while keeping total system energy consumption optimized.
Constructed with inner-grooved copper tubes mechanically expanded into high-efficiency aluminum fins, the FNV-280 guarantees exceptional thermal conductivity and long service life. Every coil assembly undergoes 3.0 MPa pneumatic pressure tightness testing in water tanks to ensure complete leak-free safety under continuous load cycling. Featuring large-diameter refrigerant connection pipes and an electrostatic powder-coated casing, it resists harsh weather, UV rays, and outdoor industrial environments.
| Parameter | Value |
|---|---|
| Model | FNV-280 |
| Heat Exchange Capacity | 92.4kW |
| Heat Exchange Area | 280 m² |
| Ring Number | 4x16 |
| Fan Power | 3×780 W |
| Air Volume | 3×9800 m³/h |
| Intake Inlet / Liquid Outlet | 35 / 25mm |
Ruifujie is an established refrigeration machinery manufacturer with over two decades of technical expertise. We produce scroll, reciprocating, rotary, semi-hermetic, and screw refrigeration compressors, together with modular cold storage packages, quick-freezing equipment, and commercial ice machines. Supporting global B2B procurement, Ruifujie offers full OEM/ODM manufacturing customization. Our equipment is exported across key international markets including North America, Europe, the Middle East, Russia, and Saudi Arabia, recognized for robust build quality and outstanding cost efficiency.
Backed by 20 years of commercial refrigeration manufacturing, Ruifujie assists global engineering contractors and equipment distributors with custom condenser selection. Share your project parameters with us--including required heat dissipation capacity, target refrigerant, ambient operating temperature, and order quantity--and our technical team will deliver an integrated system recommendation and direct quote within 8 hours.
