FNV-300 99KW Heavy-Duty Low Temperature Air Cooled Reefer Condenser

Name: FNV-300 99KW Heavy-Duty Low Temperature Air Cooled Reefer Condenser
Brand: Shenzhen Ruifujie Technology Co., Ltd.
SKU: FNV-300
Price: 1.00 USD
Availability: InStock

Brand Name:	Ruifujie
Model Number:	FNV-300
MOQ:	1
Price:	Discussed
Delivery Time:	1 Month
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Packing:

Woodcase Packing

Warranty:

1year

Fan Power:

3x780W

Application:

Cold Room,Freezer, HVAC System

Heat Exchange Area:

300㎡

Refrigerant:

R134a, R404A, R507A, R407C

Heat Exchange Capacity:

99KW

MOQ:

1Sets

Packaging Details:

WOODEN CASE

Supply Ability:

100PC

Highlight:

heavy-duty air cooled reefer condenser

low temperature air cooled condenser

99KW air cooled condenser

Product Description

FNV-300 99KW Heavy-Duty Low Temperature Air Cooled Reefer Condenser

Product Advantages

High-Capacity Reefer & Cold Chain Performance

The FNV-300 is a heavy-duty V-type split air-cooled condenser engineered specifically for commercial reefer systems, marine container refrigeration, and large cold storage distribution centers. Delivering a nominal 99 kW heat dissipation capacity across an expansive 300 m² heat transfer surface, this reefer condenser maintains stable condensing pressure and protects compressors from head pressure overload when operating with R404A, R507A, R134a, R407C, and R22 refrigerants under continuous freezing cycles.

Advanced 3-Fan Airflow Dynamics & Power Savings

Reefer units and low-temperature cold rooms frequently operate under heavy thermal loads, where inadequate airflow leads to high discharge temperatures and excessive electricity bills. The FNV-300 resolves these severe operating conditions with its 4×16 multi-circuit copper coil layout and three φ600 mm axial fan motors, delivering a massive total air volume of 29,400 m³/h. Drawing 3×780 W of motor power, it accelerates heat removal while optimizing overall system energy efficiency.

Rugged Build and Certified Leak Prevention

Manufactured with inner-grooved seamless copper tubing mechanically expanded into high-density corrugated aluminum fins, the FNV-300 provides exceptional thermal conductivity and extended operational life. Every unit undergoes strict 3.0 MPa pneumatic pressure tightness testing in water tanks to ensure zero refrigerant leakage before factory delivery. Featuring large-diameter connection pipes and a weather-resistant powder-coated frame, it reliably resists harsh outdoor and marine logistics environments.

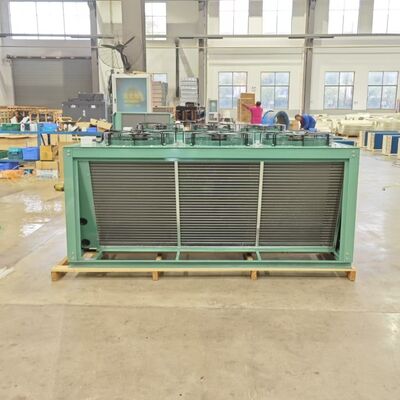

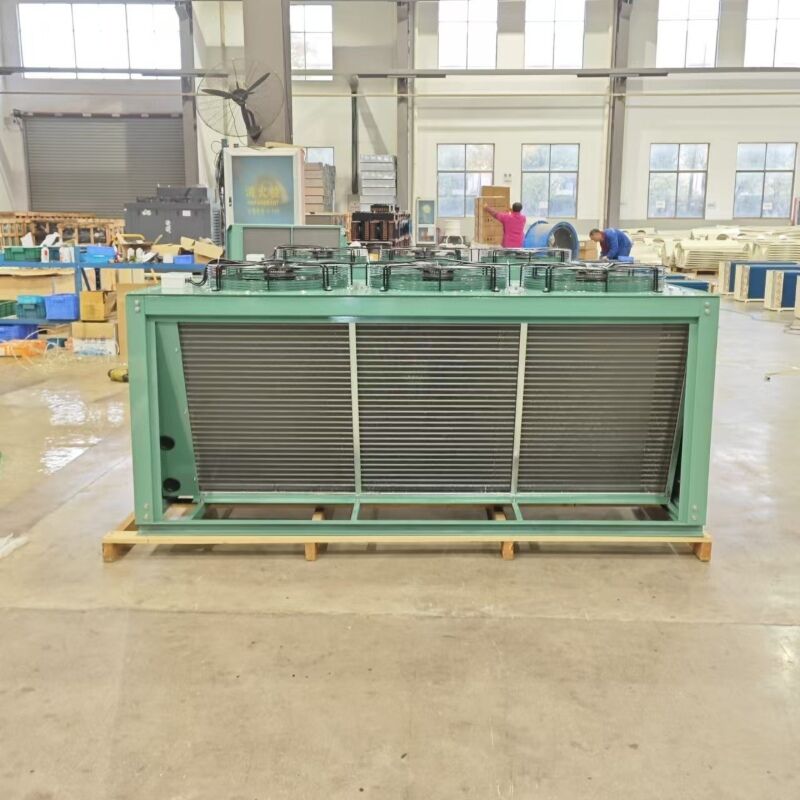

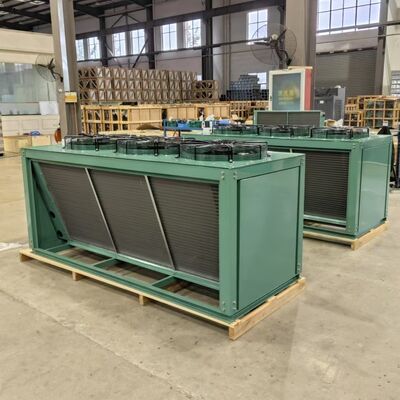

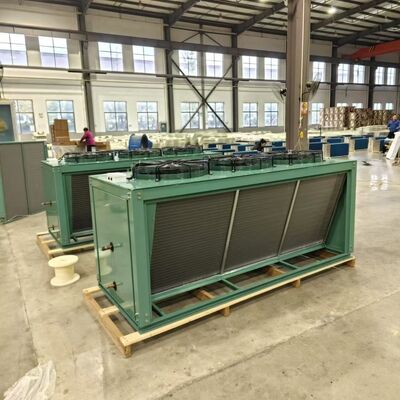

Product Images

Technical Specifications

Parameter	Value
Model	FNV-300
Heat Exchange Capacity	99kW
Heat Exchange Area	300 m²
Ring Number	4x16
Fan Power	3×780 W
Air Volume	3×9800 m³/h
Intake Inlet / Liquid Outlet	35 / 25mm

Company Profile

Ruifujie is an established refrigeration machinery manufacturer with over two decades of technical expertise. We produce scroll, reciprocating, rotary, semi-hermetic, and screw refrigeration compressors, together with modular cold storage packages, quick-freezing equipment, and commercial ice machines. Supporting global B2B procurement, Ruifujie offers full OEM/ODM manufacturing customization. Our equipment is exported across key international markets including North America, Europe, the Middle East, Russia, and Saudi Arabia, recognized for robust build quality and outstanding cost efficiency.

Packaging and Shipping

Frequently Asked Questions

Q1: How does this condenser protect reefer compressors from high head pressure during extreme summer heat?

A1: The unit combines a 300 m² exchange surface with three φ600 mm fans driving 29,400 m³/h total airflow, rapidly expelling thermal load to maintain safe operating head pressure even when ambient temperatures exceed 45°C.

Q2: What design elements ensure long-term corrosion resistance in marine or port logistics environments?

A2: The heat exchanger utilizes seamless copper tubes and aluminum fins housed within a heavy-duty steel frame protected by electrostatic powder coating to prevent salt-spray oxidation and atmospheric degradation.

Q3: Why is a 4 ×16 multi-circuit coil design crucial for high-capacity reefer applications?

A3: The 4-row by 16-circuit geometry provides balanced internal fluid distribution, reducing refrigerant-side pressure drop for high-density refrigerants like R404A and R507A during continuous freezing operations.

Q4: How do the large φ35 mm intake and φ25 mm liquid outlet connections benefit high-flow reefer circuits?

A4: The oversized connection pipe diameters minimize internal flow restriction for high mass-flow systems, facilitating rapid vapor condensation and smooth liquid return without backpressure buildup.

Q5: What international payment methods and trade terms are supported for overseas purchases?

A5: We accept USD payments via T/T (Telegraphic Transfer) and Western Union under standard FOB Shenzhen or EXW trade terms, providing secure and flexible payment options for global partners.

Reefer System Quotation

Backed by 20 years of manufacturing excellence, Ruifujie provides high-efficiency air-cooled condensers tailored for reefer transport, cold logistics, and industrial cooling plants. Send us your project parameters—including required heat dissipation capacity, target refrigerant, operating ambient conditions, and order volume—and our technical team will deliver a comprehensive solution and competitive quote within 8 hours.
