| Brand Name: | Ruifujie |
| Model Number: | FNV-100 |
| MOQ: | 1 |
| Price: | Discussed |
| Delivery Time: | 1 Month |
| Payment Terms: | T/T,Western Union |

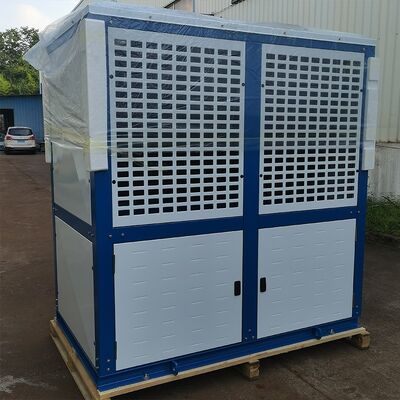

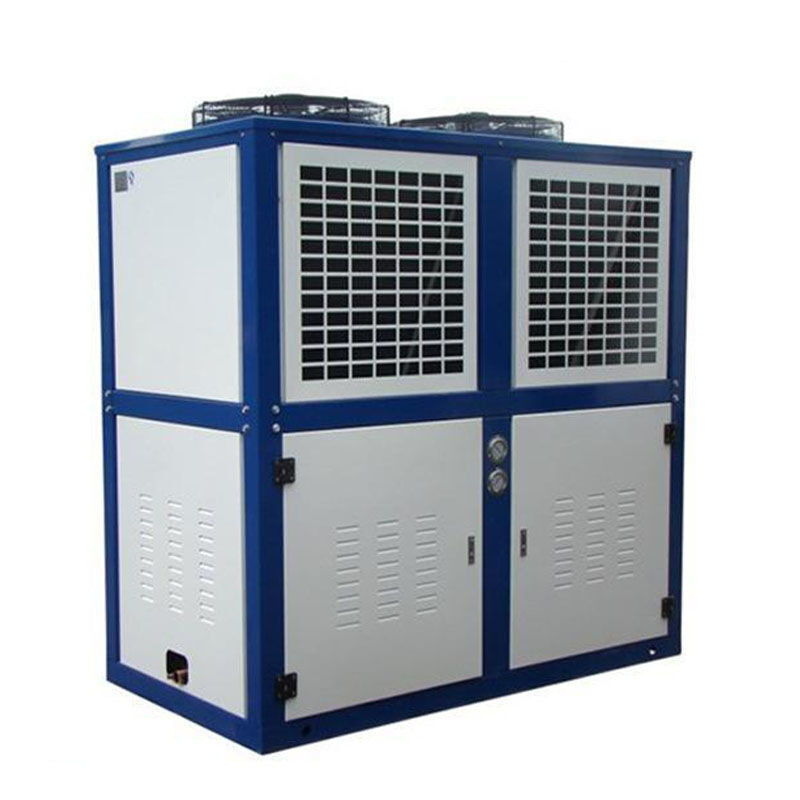

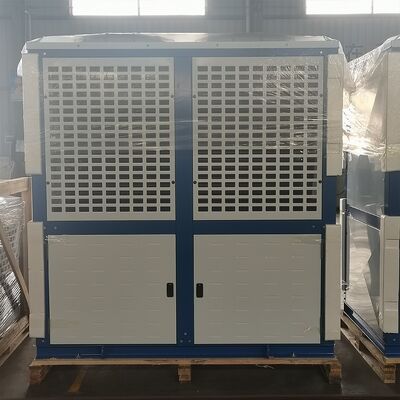

The FNV-100 features an intelligent double-layer structure tailored for cold storage condensing units. The upper tier serves as an efficient V-type heat dissipation section, while the elevated lower base provides dedicated internal space for housing compressors and auxiliary piping components. This all-in-one footprint significantly simplifies field unit assembly and optimizes engine room space.
Engineered for medium-and-small cold room applications, the FNV-100 delivers a nominal heat exchange capacity of 33.1 kW across a 100 m² surface area. It is equipped with two φ450 mm external rotor axial fans that deliver a total air volume of 9,600 m³/h. Drawing only 2×250 W of fan motor power, the unit provides smooth, low-noise ventilation while keeping electricity costs minimal.
Constructed with inner-grooved seamless copper tubes mechanically expanded into high-grade alloy aluminum fins, the coil achieves maximum thermal contact and efficiency. Every unit undergoes 3.0 MPa pneumatic underwater pressure tightness testing before factory departure to guarantee zero refrigerant leakage. Its sturdy steel housing is treated with high-temperature electrostatic powder coating for superior outdoor corrosion resistance.
| Parameter | Value |
|---|---|
| Model | FNV-100 |
| Heat Exchange Capacity | 33.1 kW |
| Heat Exchange Area | 100 m² |
| Ring Number | 3x14 |
| Fan Power | 2×250 W |
| Air Volume | 2×4800 m³/h |
| Intake Inlet / Liquid Outlet | 25 / 19 mm |
Ruifujie is an established refrigeration machinery manufacturer with over two decades of technical expertise. We produce scroll, reciprocating, rotary, semi-hermetic, and screw refrigeration compressors, together with modular cold storage packages, quick-freezing equipment, and commercial ice machines. Supporting global B2B procurement, Ruifujie offers full OEM/ODM manufacturing customization. Our equipment is exported across key international markets including North America, Europe, the Middle East, Russia, and Saudi Arabia, recognized for robust build quality and outstanding cost efficiency.
Backed by 20 years of commercial refrigeration manufacturing excellence, Ruifujie provides double-layer air-cooled condensers engineered for space-saving cold room unit assemblies. Send us your project parameters—including target cooling load, compressor brand preference, operating refrigerant, and required order volume—and our technical engineers will deliver a complete configuration and quotation within 8 hours.
|
|
