FNV-120 39.6KW Double-Layer Commercial R407C Heat Pump Condenser
FNV-120 39.6KW Double-Layer Commercial R407C Heat Pump Condenser
Place of Origin:China
Brand Name:Ruifujie
Model Number:FNV-120
Minimum Order Quantity:1
Price:Discussed
Standard Packaging:WOODEN CASE
Delivery Time:1 Month
Payment Terms:T/T,Western Union
Supply Ability:100PC
Product Details
Highlight:
Double-Layer Commercial R407C Heat Pump
,39.6KW Air Cooled Condenser
,FNV-120 Heat Pump Condenser
Packing:
Woodcase Packing
Warranty:
1 Year
Fan Power:
2x414W
Application:
Cold Room, Freezer, HVAC System
Heat Exchange Area:
120㎡
Refrigerant:
R134a, R404A, R507A, R407C
Heat Exchange Capacity:
39.6KW
MOQ:
1 Sets
Product Description
Detailed Specifications & Features
FNV-120 39.6KW Double-Layer Commercial R407C Heat Pump Condenser
Product Advantages
Compact Double-Layer Heat Pump Layout
The FNV-120 features a double-layer vertical structure optimized for commercial R407C heat pump air conditioning and water chiller setups. Its upper tier houses an efficient V-type heat dissipation coil delivering 39.6 kW nominal heat exchange capacity across 120 m² of surface area, while the elevated lower base offers dedicated space for mounting compressors and refrigeration components, significantly reducing overall equipment room footprint.
Low-Noise Fan Engineering & R407C Circuit Optimization
To ensure quiet operation in commercial HVAC environments, the unit is equipped with two φ500 mm external rotor axial fans producing a total air volume of 13,000 m³/h at 2×414 W motor power. The 4×12 tube geometry is engineered to provide balanced fluid distribution and maintain stable condensing pressures.
Weatherproof Casing & Certified Leak Protection
Constructed with inner-grooved seamless copper tubing mechanically expanded into corrugated aluminum fins, the FNV-120 delivers high heat conductivity and extended service life. Every coil undergoes mandatory 3.0 MPa pneumatic underwater pressure testing to guarantee absolute zero-leak safety under high operating pressures. Protected by high-temperature electrostatic powder coating, the heavy-duty casing stands up against harsh outdoor ambient exposure.

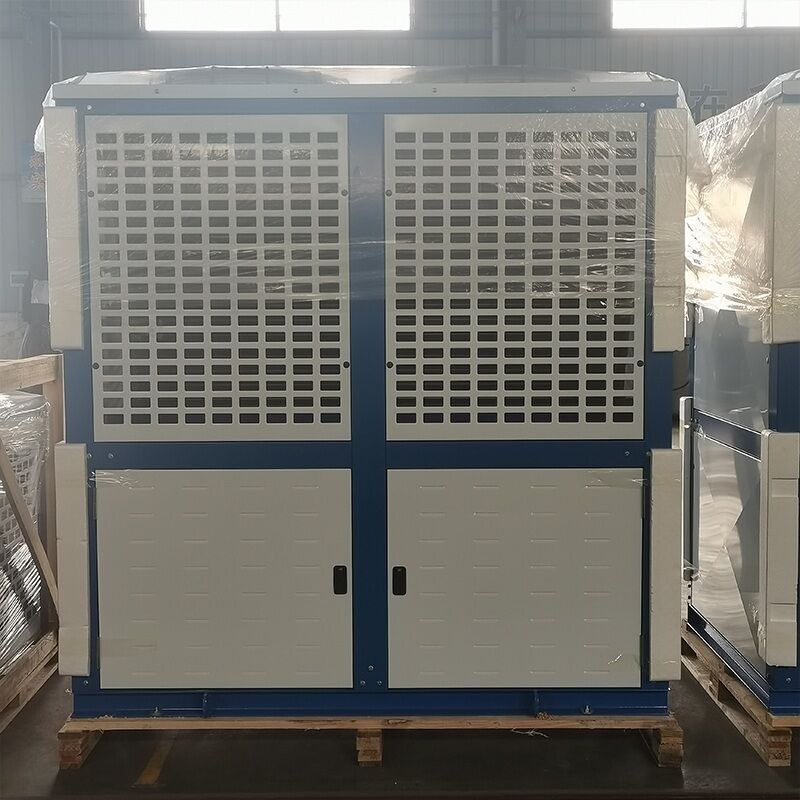

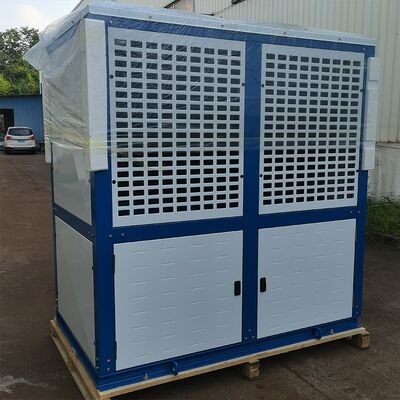

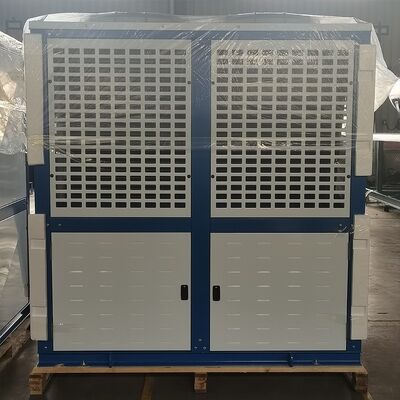

Product Images
Technical Specifications
| Parameter | Value |
|---|---|
| Model | FNV-120 |
| Heat Exchange Capacity | 39.6 kW |
| Heat Exchange Area | 120 m² |
| Ring Number | 4x12 |
| Fan Power | 2×414 W |
| Air Volume | 2×6500 m³/h |
| Intake Inlet / Liquid Outlet | 25 / 19 mm |
Company Profile
Ruifujie is an established refrigeration machinery manufacturer with over two decades of technical expertise. We produce scroll, reciprocating, rotary, semi-hermetic, and screw refrigeration compressors, together with modular cold storage packages, quick-freezing equipment, and commercial ice machines. Supporting global B2B procurement, Ruifujie offers full OEM/ODM manufacturing customization. Our equipment is exported across key international markets including North America, Europe, the Middle East, Russia, and Saudi Arabia, recognized for robust build quality and outstanding cost efficiency.
Packaging and Shipping
Frequently Asked Questions
Q1: How does the multi-circuit coil arrangement handle the temperature glide of R407C in heat pump setups?
A1: The 4×12 circuit design optimizes internal flow velocity and phase change distribution, accommodating R407C temperature glide without localized pressure drops to ensure uniform coil heat rejection.
Q2: How does the lower base frame isolate compressor operational vibration from the upper heat exchanger?
A2: The elevated base frame is engineered with heavy-gauge structural steel rails and pre-drilled anti-vibration pad mounts, preventing compressor operating harmonics from transferring to the copper coil joints.
Q3: What electrical and environmental protection ratings apply to the external rotor fans?
A3: The dual φ500 mm axial fans feature IP54/IP55 weather protection and F-class insulation, allowing continuous outdoor operation under direct sun, rain, and fluctuating ambient conditions.
Q4: What international commercial trade terms can be supported for shipment?
A4: Orders can be executed under standard FOB Shenzhen, EXW, or CIF terms based on customer shipping preferences.
Q5: Is sample ordering supported for prototype testing prior to placing bulk contracts?
A5: Sample units are fully available for testing and evaluation, with standard in-stock sample configurations dispatched within 3 working days.
Heat Pump System Consultation
Backed by 20 years of commercial refrigeration and HVAC manufacturing expertise, Ruifujie provides custom double-layer air-cooled condensers for integrated heat pump unit assemblies. Send us your project parameters—including target cooling load, operating refrigerant, ambient temperature conditions, and estimated order quantity—and our technical team will deliver a comprehensive proposal and quote within 8 hours.
