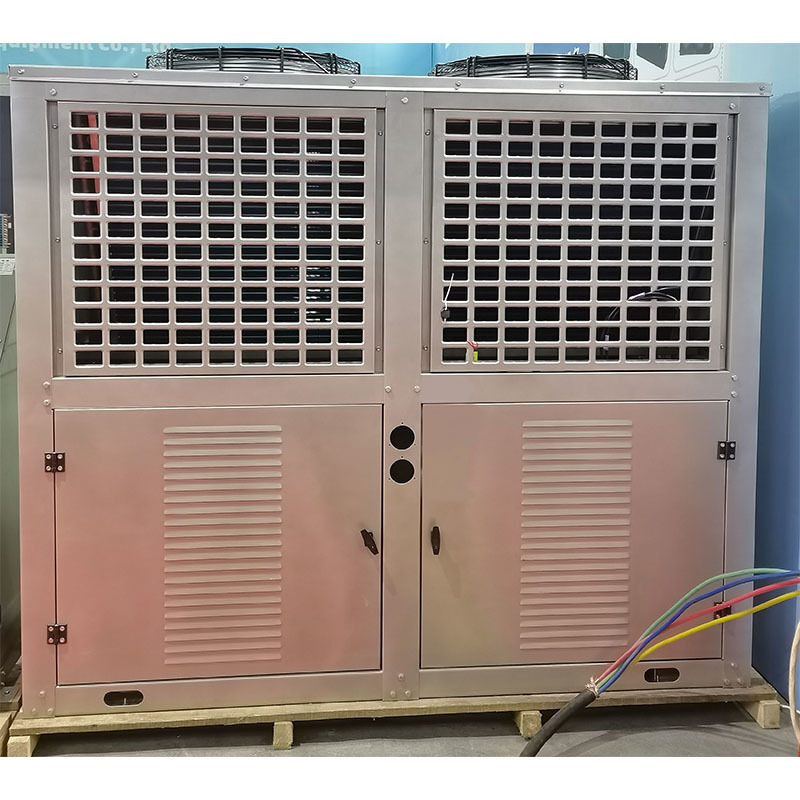

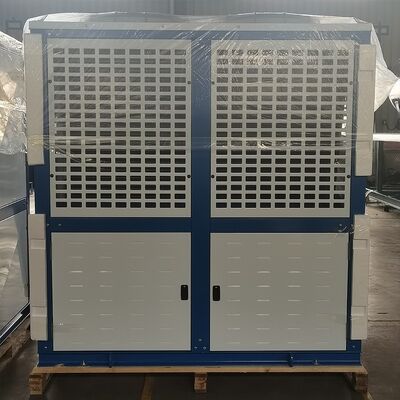

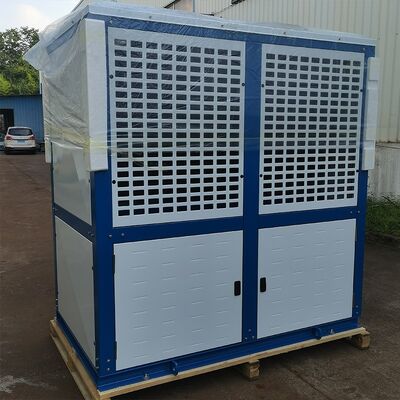

The FNV-130 features an advanced double-layer vertical structure tailored for commercial refrigeration condensing units. The upper V-type heat exchanger delivers a nominal 42.9 kW heat dissipation capacity across a 130 m² heat transfer area, while the elevated base frame provides spacious lower internal clearance to house compressors and refrigeration manifold accessories, significantly minimizing equipment room footprints.

Designed to operate smoothly with R404A, R507A, R134a, R407C, and R22, the FNV-130 utilizes a 4×12 multi-circuit copper tube geometry for uniform fluid distribution and reduced internal pressure drop. Equipped with two φ500 mm axial fans producing a total air volume of 13,000 m³/h at 2×414 W power, it ensures rapid thermal discharge while optimizing energy consumption.

Built with inner-grooved seamless copper tubes mechanically expanded into high-grade aluminum fins, the FNV-130 guarantees superior heat conductivity and structural strength. Every unit undergoes 3.0 MPa pneumatic underwater pressure tightness testing to confirm absolute zero-leak safety. Its electrostatic powder-coated casing stands up against weathering, UV exposure, and outdoor atmospheric corrosion.

Ruifujie is an established refrigeration machinery manufacturer with over two decades of technical expertise. We produce scroll, reciprocating, rotary, semi-hermetic, and screw refrigeration compressors, together with modular cold storage packages, quick-freezing equipment, and commercial ice machines. Supporting global B2B procurement, Ruifujie offers full OEM/ODM manufacturing customization. Our equipment is exported across key international markets including North America, Europe, the Middle East, Russia, and Saudi Arabia, recognized for robust build quality and outstanding cost efficiency.

A1: The angled V-configuration expands the effective air intake surface while directing exhaust airflow vertically upward, preventing hot air recirculation and boosting overall heat exchange performance.

A2: The open lower housing structure allows unhindered 360-degree access to the compressor, suction accumulator, filter drier, and sight glass during routine servicing and pressure checks.

A3: Mechanical tube expansion creates a tight physical bond between the inner-grooved copper tubes and aluminum fin collars, eliminating air gaps and preventing fin loosening caused by thermal expansion and contraction.

A4: In-stock standard units ship within 3 working days, while bulk manufacturing contracts are completed and dispatched within 10 to 15 working days.

A5: All equipment carries a 1-year comprehensive warranty alongside lifetime technical assistance for component selection, system matching, and troubleshooting.

Backed by 20 years of commercial refrigeration manufacturing excellence, Ruifujie provides double-layer air-cooled condensers engineered for compact, high-efficiency condensing unit assemblies. Send us your project parameters—including target cooling load, operating refrigerant, compressor specs, and required order volume—and our technical engineers will deliver an integrated configuration and direct quote within 8 hours.
