| Brand Name: | Ruifujie |
| Model Number: | FNV-180 |
| MOQ: | 1 |
| Price: | Discussed |
| Delivery Time: | 1 Month |
| Payment Terms: | T/T,Western Union |

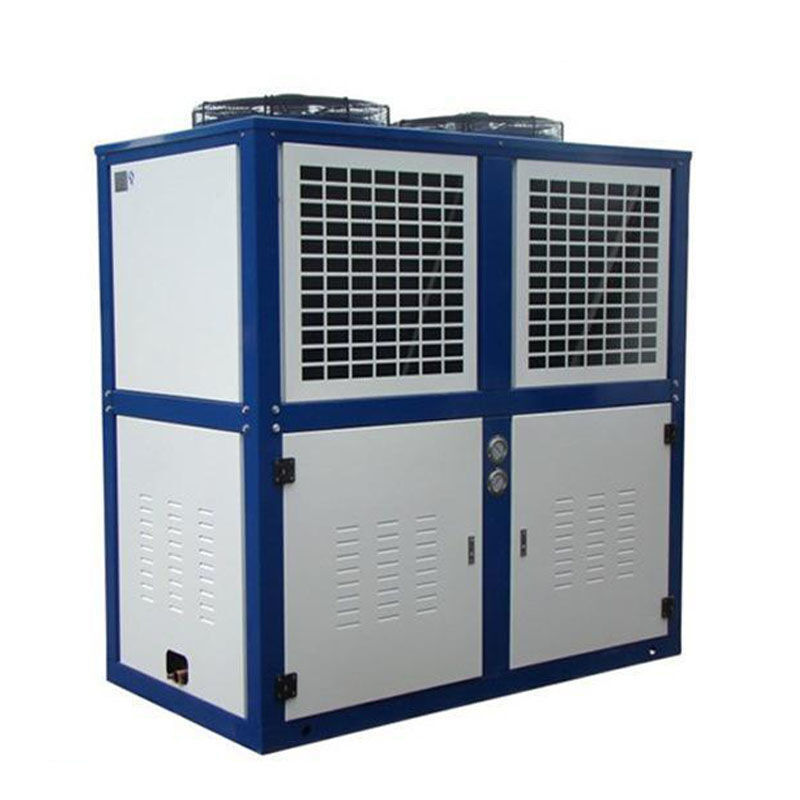

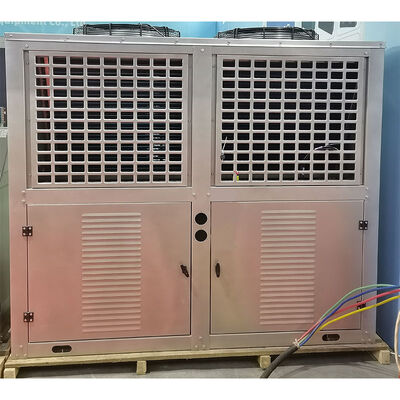

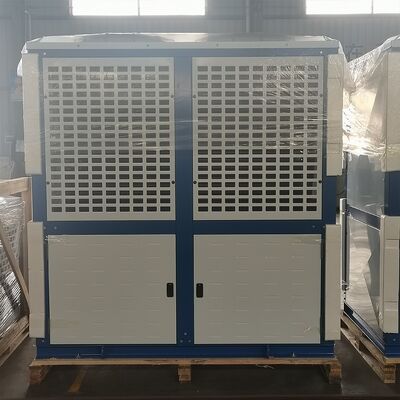

The FNV-180 features an intelligent double-layer frame structure designed specifically for commercial air conditioner condensing units and modular chiller mainframes. The upper V-type heat exchanger delivers a nominal 59.4 kW heat dissipation capacity across a 180 m² heat transfer area, while the spacious lower base provides dedicated internal clearance for mounting compressors and refrigeration accessories, significantly saving installation footprint.
Engineered for efficient thermal management in demanding air conditioning systems, the FNV-180 utilizes a 4×14 multi-circuit copper tube layout paired with two φ550 mm external rotor axial fans. Delivering a total air volume of 16,600 m³/h at 2×600 W motor power, it ensures rapid thermal rejection, lowers compressor discharge pressure, and optimizes overall energy efficiency.
Constructed with inner-grooved seamless copper tubes mechanically expanded into high-grade alloy aluminum fins, the FNV-180 guarantees long operational life and maximum thermal conductivity. Every unit undergoes 3.0 MPa pneumatic underwater pressure tightness testing to ensure absolute leak-free safety. Its heavy-duty steel frame is protected by high-temperature electrostatic powder coating to resist outdoor weather exposure and atmospheric corrosion.
| Parameter | Value |
|---|---|
| Model | FNV-180 |
| Heat Exchange Capacity | 59.4 kW |
| Heat Exchange Area | 180 m² |
| Ring Number | 4x14 |
| Fan Power | 2×600 W |
| Air Volume | 2×8300 m³/h |
| Intake Inlet / Liquid Outlet | 25 / 19 mm |
Ruifujie is a specialized manufacturer and exporter of commercial and industrial refrigeration systems with over two decades of production experience. We specialize in producing scroll, screw, and semi-hermetic compressor units, alongside air-cooled condensers, evaporators, and modular cold storage solutions. Every system is built to international standards, undergoing strict pressure and leak testing before export. Partnering with global distributors and engineering contractors across Europe, the Americas, the Middle East, and Southeast Asia, Ruifujie delivers reliable thermal management systems built for performance and durability.
Backed by over 20 years of manufacturing expertise, Ruifujie provides double-layer air-cooled condensers engineered for compact HVAC and air conditioner unit assemblies. Send us your project parameters—including target cooling load, operating refrigerant, compressor specifications, and order quantity—and our technical team will deliver a tailored proposal and direct quote within 8 hours.
|
|
