| Brand Name: | Ruifujie |
| Model Number: | FNV-200 |
| MOQ: | 1 |
| Price: | Discussed |
| Delivery Time: | 1 Month |
| Payment Terms: | T/T,Western Union |

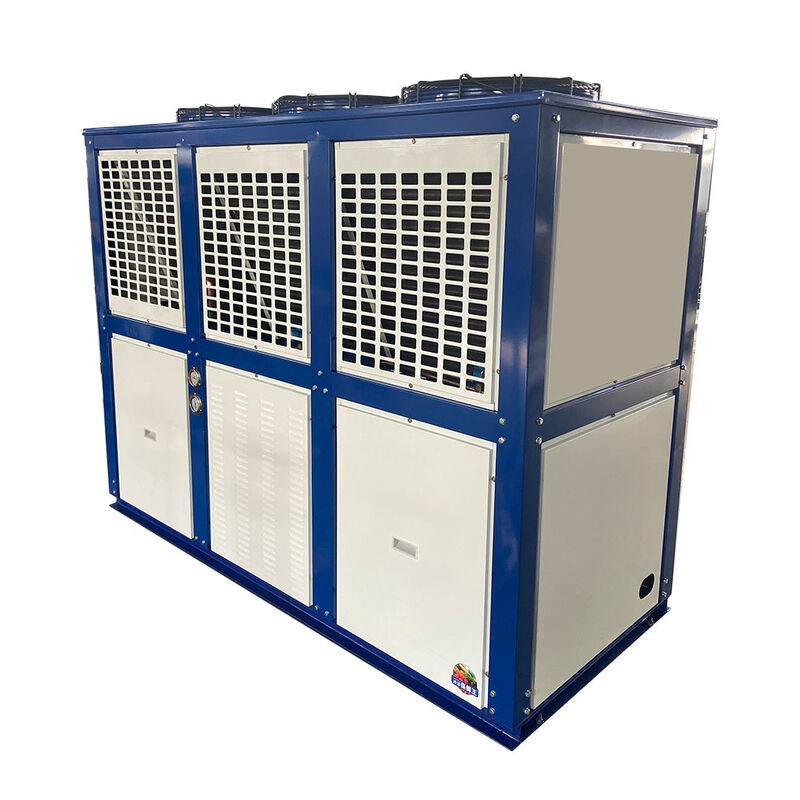

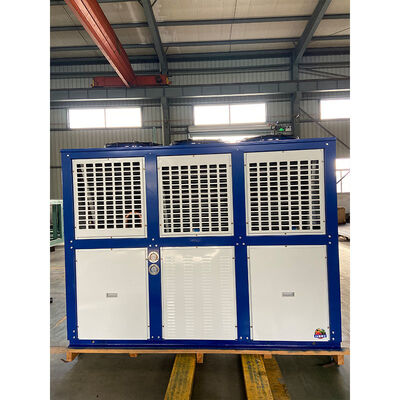

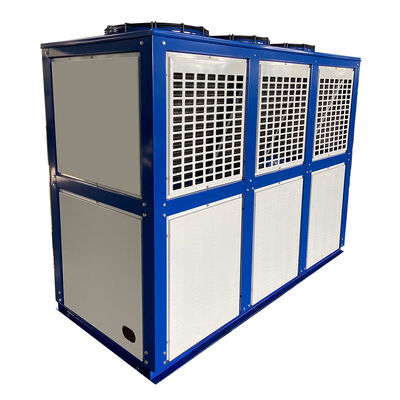

The FNV-200 utilizes a double-layer vertical frame architecture engineered for commercial and industrial refrigeration condensing units. Delivering a nominal 66 kW heat dissipation capacity across a 200 m² heat exchange surface, its V-type upper coil provides high cooling efficiency, while the spacious lower compartment provides dedicated clearance for mounting compressors, receivers, and piping manifolds to optimize machinery room space.
Equipped with three φ500 mm external rotor axial fans, the FNV-200 generates a high-volume airflow of 19,500 m³/h at 3×414 W motor power. Its 4×14 multi-circuit copper tube geometry balances internal refrigerant flow for R404A, R507A, R134a, R407C, and R22 systems, ensuring rapid thermal discharge and steady condensing pressures under heavy operating loads.
Built with inner-grooved seamless copper tubes mechanically expanded into high-grade aluminum fins, the FNV-200 ensures maximum thermal conductivity and structural durability. Every unit undergoes mandatory 3.0 MPa pneumatic underwater pressure tightness testing to guarantee zero refrigerant leakage. The electrostatic powder-coated steel casing provides long-term protection against outdoor weather exposure, UV rays, and atmospheric corrosion.
| Parameter | Value |
|---|---|
| Model | FNV-200 |
| Heat Exchange Capacity | 66 kW |
| Heat Exchange Area | 200 m² |
| Ring Number | 4x14 |
| Fan Power | 3×414 W |
| Air Volume | 3×6500 m³/h |
| Intake Inlet / Liquid Outlet | 28 / 22 mm |
Ruifujie is a specialized manufacturer and exporter of commercial and industrial refrigeration systems with over two decades of production experience. We specialize in producing scroll, screw, and semi-hermetic compressor units, alongside air-cooled condensers, evaporators, and modular cold storage solutions. Every system is built to international standards, undergoing strict pressure and leak testing before export. Partnering with global distributors and engineering contractors across Europe, the Americas, the Middle East, and Southeast Asia, Ruifujie delivers reliable thermal management systems built for performance and durability.
Backed by over 20 years of manufacturing expertise, Ruifujie provides double-layer air-cooled condensers engineered for compact refrigeration and HVAC unit assemblies. Send us your project parameters—including target cooling load, operating refrigerant, compressor specifications, and order quantity—and our technical team will deliver a tailored proposal and direct quote within 8 hours.
|
|
