| Brand Name: | Ruifujie |
| Model Number: | FNV-220 |
| MOQ: | 1 |
| Price: | Discussed |
| Delivery Time: | 1 Month |
| Payment Terms: | T/T,Western Union |

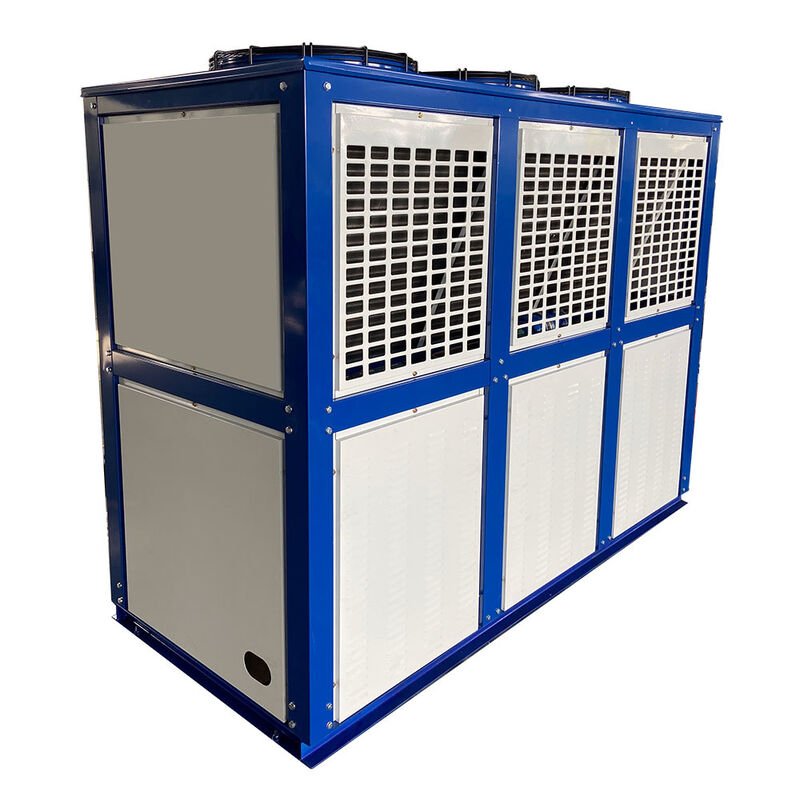

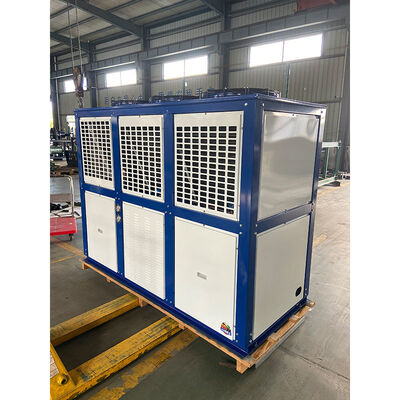

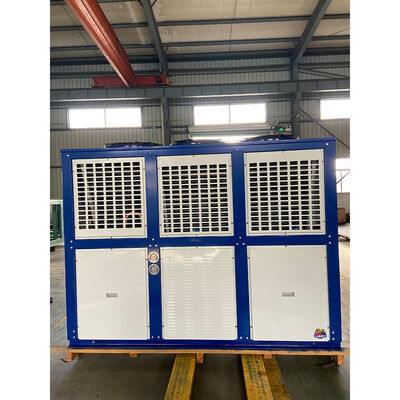

The FNV-220 utilizes an advanced double-layer frame architecture engineered for commercial refrigeration and HVAC condensing units. Delivering a nominal 72.6 kW heat dissipation capacity across a 220 m² heat transfer surface, its V-type upper coil provides high cooling efficiency, while the elevated lower base offers dedicated compartment clearance for mounting compressors, liquid receivers, and piping manifolds to save machinery room space.
Equipped with three φ500 mm external rotor axial fans, the FNV-220 generates a high-volume total airflow of 19,500 m³/h at low motor power. Its 4×16 multi-circuit copper tube geometry optimizes internal fluid distribution for R404A, R507A, R134a, R407C, and R22 refrigerants, maintaining steady condensing pressures and low discharge temperatures under continuous heavy operation.
Manufactured with inner-grooved seamless copper tubes mechanically expanded into high-grade alloy aluminum fins, the FNV-220 guarantees maximum thermal conductivity and structural durability. Every unit undergoes 3.0 MPa pneumatic underwater pressure tightness testing to ensure absolute zero-leak reliability. Its electrostatic powder-coated steel casing effectively withstands outdoor weather exposure, UV rays, and atmospheric corrosion.
| Parameter | Value |
|---|---|
| Model | FNV-220 |
| Heat Exchange Capacity | 72.6 kW |
| Heat Exchange Area | 220 m² |
| Ring Number | 4x16 |
| Fan Power | 3×414 W |
| Air Volume | 3×6500 m³/h |
| Intake Inlet / Liquid Outlet | 28 / 22 mm |
Ruifujie is a specialized manufacturer and exporter of commercial and industrial refrigeration systems with over two decades of production experience. We specialize in producing scroll, screw, and semi-hermetic compressor units, alongside air-cooled condensers, evaporators, and modular cold storage solutions. Every system is built to international standards, undergoing strict pressure and leak testing before export. Partnering with global distributors and engineering contractors across Europe, the Americas, the Middle East, and Southeast Asia, Ruifujie delivers reliable thermal management systems built for performance and durability.
A1: The 4-row by 16-circuit geometry provides balanced internal fluid pathways, reducing refrigerant pressure drop while ensuring thorough phase change and thermal contact across all copper tubes during continuous high-load cooling.
A2: The elongated lower base frame provides broad internal mounting clearance for installing multi-compressor racks or larger liquid receivers, allowing contractors to build compact, self-contained condensing sets.
A3: External rotor fans feature compact integrated motor structures with IP54/IP55 weatherproofing, delivering direct-drive airflow with minimal vibration and high resistance to ambient temperature fluctuations.
A4: Orders are executed under standard FOB Shenzhen or EXW terms and settled in USD.
A5: Payments are accepted via T/T and Western Union.
Backed by over 20 years of manufacturing expertise, Ruifujie provides double-layer air-cooled condensers engineered for compact refrigeration and HVAC unit assemblies. Send us your project parameters—including target cooling load, operating refrigerant, compressor specifications, and order quantity—and our technical team will deliver a tailored proposal and direct quote within 8 hours.
|
|
| Brand Name: | Ruifujie |
| Model Number: | FNV-220 |
| MOQ: | 1 |
| Price: | Discussed |
| Packaging Details: | WOODEN CASE |
| Payment Terms: | T/T,Western Union |
The FNV-220 utilizes an advanced double-layer frame architecture engineered for commercial refrigeration and HVAC condensing units. Delivering a nominal 72.6 kW heat dissipation capacity across a 220 m² heat transfer surface, its V-type upper coil provides high cooling efficiency, while the elevated lower base offers dedicated compartment clearance for mounting compressors, liquid receivers, and piping manifolds to save machinery room space.
Equipped with three φ500 mm external rotor axial fans, the FNV-220 generates a high-volume total airflow of 19,500 m³/h at low motor power. Its 4×16 multi-circuit copper tube geometry optimizes internal fluid distribution for R404A, R507A, R134a, R407C, and R22 refrigerants, maintaining steady condensing pressures and low discharge temperatures under continuous heavy operation.
Manufactured with inner-grooved seamless copper tubes mechanically expanded into high-grade alloy aluminum fins, the FNV-220 guarantees maximum thermal conductivity and structural durability. Every unit undergoes 3.0 MPa pneumatic underwater pressure tightness testing to ensure absolute zero-leak reliability. Its electrostatic powder-coated steel casing effectively withstands outdoor weather exposure, UV rays, and atmospheric corrosion.
| Parameter | Value |
|---|---|
| Model | FNV-220 |
| Heat Exchange Capacity | 72.6 kW |
| Heat Exchange Area | 220 m² |
| Ring Number | 4x16 |
| Fan Power | 3×414 W |
| Air Volume | 3×6500 m³/h |
| Intake Inlet / Liquid Outlet | 28 / 22 mm |
Ruifujie is a specialized manufacturer and exporter of commercial and industrial refrigeration systems with over two decades of production experience. We specialize in producing scroll, screw, and semi-hermetic compressor units, alongside air-cooled condensers, evaporators, and modular cold storage solutions. Every system is built to international standards, undergoing strict pressure and leak testing before export. Partnering with global distributors and engineering contractors across Europe, the Americas, the Middle East, and Southeast Asia, Ruifujie delivers reliable thermal management systems built for performance and durability.
A1: The 4-row by 16-circuit geometry provides balanced internal fluid pathways, reducing refrigerant pressure drop while ensuring thorough phase change and thermal contact across all copper tubes during continuous high-load cooling.
A2: The elongated lower base frame provides broad internal mounting clearance for installing multi-compressor racks or larger liquid receivers, allowing contractors to build compact, self-contained condensing sets.
A3: External rotor fans feature compact integrated motor structures with IP54/IP55 weatherproofing, delivering direct-drive airflow with minimal vibration and high resistance to ambient temperature fluctuations.
A4: Orders are executed under standard FOB Shenzhen or EXW terms and settled in USD.
A5: Payments are accepted via T/T and Western Union.
Backed by over 20 years of manufacturing expertise, Ruifujie provides double-layer air-cooled condensers engineered for compact refrigeration and HVAC unit assemblies. Send us your project parameters—including target cooling load, operating refrigerant, compressor specifications, and order quantity—and our technical team will deliver a tailored proposal and direct quote within 8 hours.
