| Brand Name: | Ruifujie |
| Model Number: | FNV-240 |
| MOQ: | 1 |
| Price: | Discussed |
| Delivery Time: | 1 Month |
| Payment Terms: | T/T,Western Union |

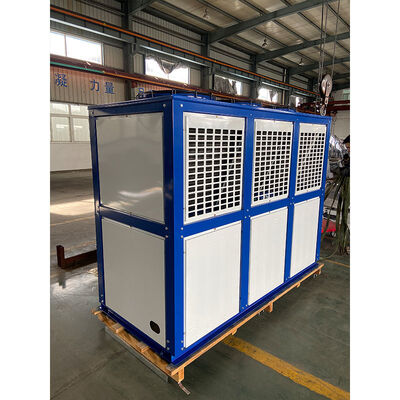

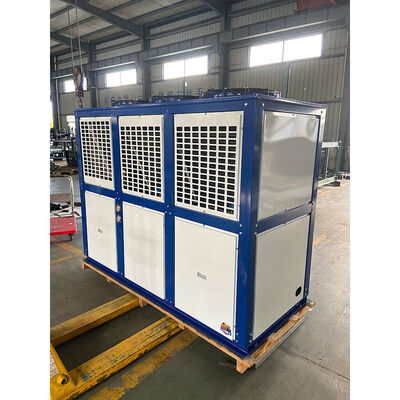

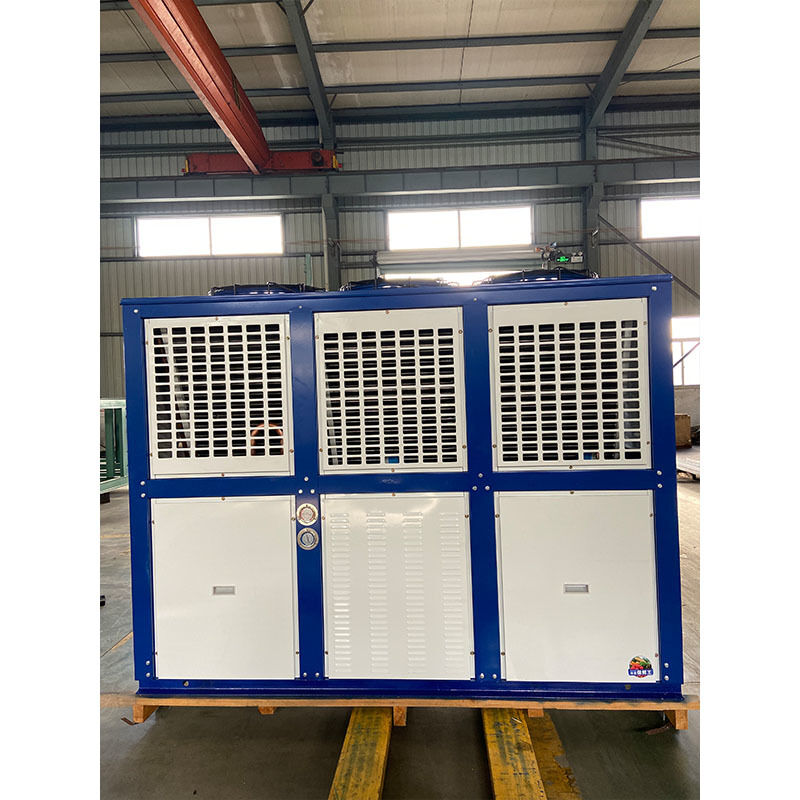

The FNV-240 is built with a double-layer vertical frame architecture tailored for commercial air conditioning condensing units and modular chillers. Delivering a nominal 79.2 kW heat dissipation capacity across a 240 m² heat transfer surface, its upper V-type coil maximizes thermal efficiency, while the spacious lower base provides dedicated internal clearance for mounting compressors, receivers, and piping manifolds to save installation space.
Engineered for demanding commercial HVAC and cooling systems, the FNV-240 features three φ550 mm external rotor axial fans producing a total air volume of 24,900 m³/h at 3×600 W motor power. Its 4×16 multi-circuit copper tube arrangement optimizes refrigerant distribution for R407C, R404A, R134a, R507A, and R22 systems, lowering discharge pressure and extending system service life.
Constructed with inner-grooved seamless copper tubes mechanically expanded into high-grade alloy aluminum fins, the FNV-240 ensures superior thermal conductivity and mechanical strength. Every unit undergoes strict 3.0 MPa pneumatic underwater pressure tightness testing to guarantee zero refrigerant leakage. The heavy-duty steel frame is finished with electrostatic powder coating for resistance against weather exposure and corrosion.
| Parameter | Value |
|---|---|
| Model | FNV-240 |
| Heat Exchange Capacity | 79.2 kW |
| Heat Exchange Area | 240 m² |
| Ring Number | 4x16 |
| Fan Power | 3×600 W |
| Air Volume | 3×8300 m³/h |
| Intake Inlet / Liquid Outlet | 28 / 22 mm |
Ruifujie is a specialized manufacturer and exporter of commercial and industrial refrigeration systems with over two decades of production experience. We specialize in producing scroll, screw, and semi-hermetic compressor units, alongside air-cooled condensers, evaporators, and modular cold storage solutions. Every system is built to international standards, undergoing strict pressure and leak testing before export. Partnering with global distributors and engineering contractors across Europe, the Americas, the Middle East, and Southeast Asia, Ruifujie delivers reliable thermal management systems built for performance and durability.
A1: The three large φ550 mm fans deliver a high air throughput of 24,900 m³/h, rapidly drawing ambient air through the 240 m² coil face to prevent heat stagnation and maintain safe condensing temperatures during peak summer operation.
A2: The lower base frame features heavy-gauge structural steel rails and generous vertical clearance, allowing contractors to fit single or parallel compressor setups, oil separators, and electrical control boxes directly underneath the coil.
A3: The 16 independent parallel circuits divide the total refrigerant vapor flow into balanced streams, reducing gas-side friction and velocity losses while maintaining consistent liquid subcooling.
A4: There is no MOQ requirement for standard in-stock inventory, while bulk production order volumes can be flexibly negotiated.
A5: Ruifujie supports full OEM customization, including custom LOGO placement and multilingual equipment nameplates.
Backed by over 20 years of manufacturing expertise, Ruifujie offers factory-direct pricing on double-layer air-cooled condensers engineered for commercial HVAC and refrigeration unit assemblies. Send us your project parameters—including target cooling load, operating voltage, refrigerant, and estimated order quantity—and our technical team will deliver a comprehensive project solution and formal price quote within 8 hours.
|
|
