| Brand Name: | Ruifujie |
| Model Number: | FNV-260 |
| MOQ: | 1 |
| Price: | Discussed |
| Delivery Time: | 1 Month |
| Payment Terms: | T/T,Western Union |

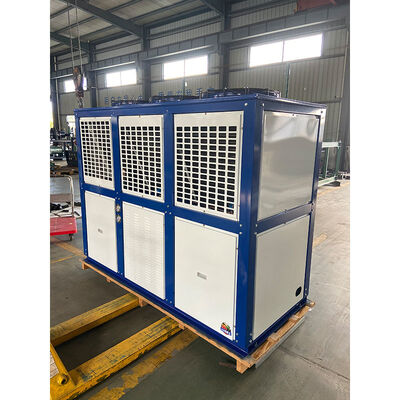

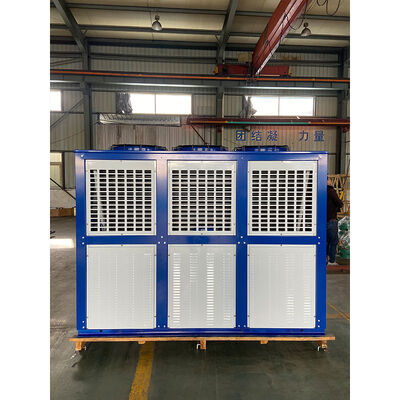

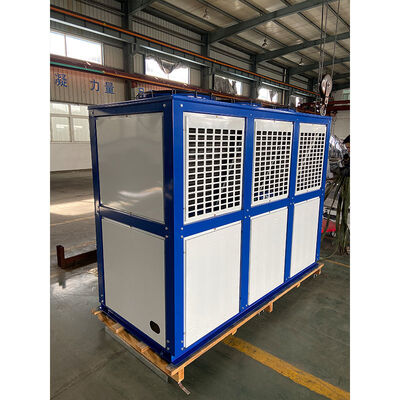

The FNV-260 is an advanced V-type double-layer air-cooled condenser engineered for commercial refrigeration condensing units and multi-compressor racks. Delivering a nominal 85.8 kW heat exchange capacity across a 260 m² surface area, its upper V-shaped coil provides high-efficiency heat rejection, while the elevated lower compartment offers dedicated internal mounting space for compressors and refrigeration manifolds, maximizing machine room floor utilization.
Engineered to prevent system high-pressure trips during summer peak loads, the FNV-260 features three φ550 mm external rotor axial fans that deliver a total air volume of 24,900 m³/h at 3×600 W motor power. Its 4×16 multi-circuit copper tube layout maintains balanced refrigerant velocity and low friction loss for R404A, R507A, R134a, R407C, and R22 systems, lowering operational power consumption.
Constructed with inner-grooved seamless copper tubes mechanically expanded into high-grade alloy corrugated aluminum fins, the FNV-260 achieves high thermal contact and structural durability. Every unit undergoes strict 3.0 MPa pneumatic underwater pressure tightness testing to ensure complete zero-leak protection. Its heavy-duty steel casing is finished with high-temperature electrostatic powder coating for resistance against outdoor weathering, rain, and UV radiation.
| Parameter | Value |
|---|---|
| Model | FNV-260 |
| Heat Exchange Capacity | 85.8 kW |
| Heat Exchange Area | 260 m² |
| Ring Number | 4x16 |
| Fan Power | 3×600 W |
| Air Volume | 3×8300 m³/h |
| Intake Inlet / Liquid Outlet | 28 / 22 mm |
Ruifujie is a specialized manufacturer and exporter of commercial and industrial refrigeration systems with over two decades of production experience. We specialize in producing scroll, screw, and semi-hermetic compressor units, alongside air-cooled condensers, evaporators, and modular cold storage solutions. Every system is built to international standards, undergoing strict pressure and leak testing before export. Partnering with global distributors and engineering contractors across Europe, the Americas, the Middle East, and Southeast Asia, Ruifujie delivers reliable thermal management systems built for performance and durability.
Backed by over 20 years of manufacturing expertise, Ruifujie provides double-layer air-cooled condensers engineered for compact commercial refrigeration and cold storage unit assemblies. Send us your project parameters—including target heat dissipation load, operating voltage, target refrigerant, and order volume—and our technical team will issue a complete technical solution and direct quotation within 8 hours.
|
|
