| Brand Name: | Ruifujie |
| Model Number: | FNV-280 |
| MOQ: | 1 |
| Price: | Discussed |
| Delivery Time: | 1 Month |
| Payment Terms: | T/T,Western Union |

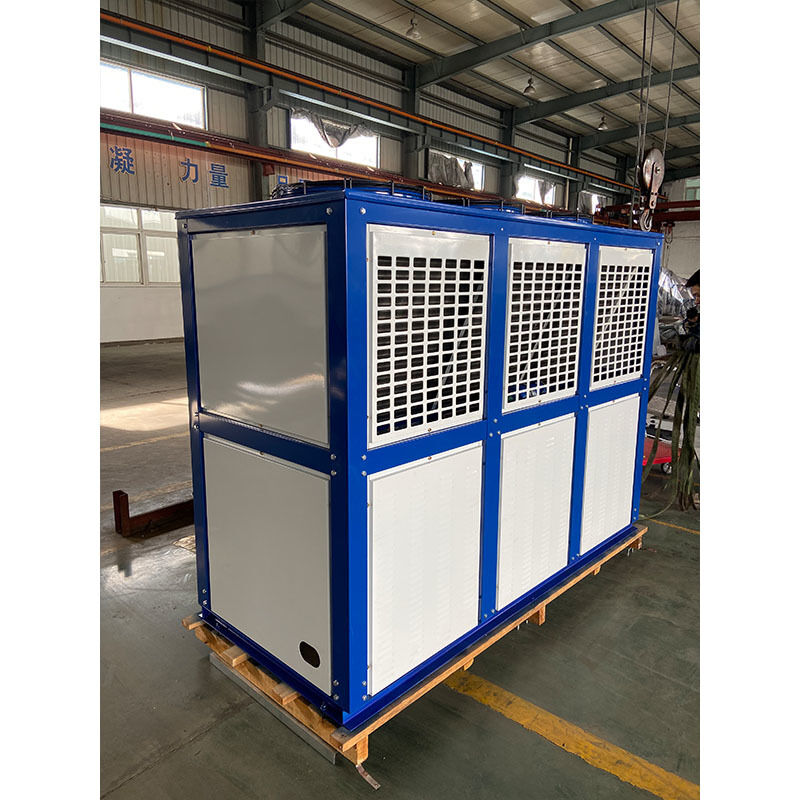

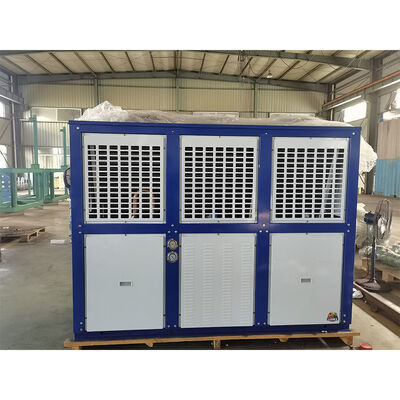

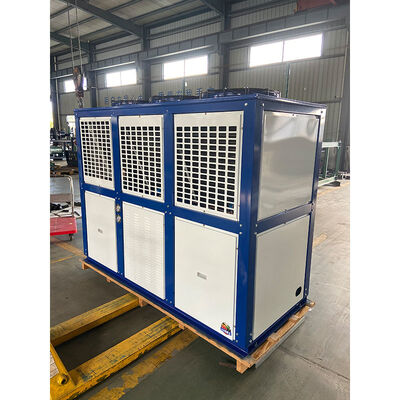

The FNV-280 features an advanced V-type double-layer vertical frame architecture engineered for commercial HVAC chillers, air conditioning mainframes, and industrial cooling racks. Delivering a nominal 92.4 kW heat exchange capacity across an expansive 280 m² heat transfer surface, its upper V-shaped coil maximizes thermal efficiency, while the elevated lower base offers dedicated internal clearance for housing compressors, receivers, and piping manifolds.
To prevent system high-pressure trips during peak outdoor summer ambient temperatures, the FNV-280 utilizes three φ600 mm external rotor axial fans, generating a high total air volume of 29,400 m³/h. Operating at 3×780 W fan motor power, the 4×16 multi-circuit copper tube geometry optimizes refrigerant distribution and heat removal for R407C, R404A, R134a, R507A, and R22 systems.
Constructed with inner-grooved seamless copper tubes mechanically expanded into high-grade alloy corrugated aluminum fins, the FNV-280 ensures outstanding heat conductivity and structural longevity. Every unit undergoes 3.0 MPa pneumatic underwater pressure tightness testing prior to factory dispatch to guarantee zero refrigerant leakage. Its heavy-duty steel frame is finished with electrostatic powder coating to withstand outdoor weather exposure, rain, and UV rays.
| Parameter | Value |
|---|---|
| Model | FNV-280 |
| Heat Exchange Capacity | 92.4 kW |
| Heat Exchange Area | 280 m² |
| Ring Number | 4x16 |
| Fan Power | 3×780 W |
| Air Volume | 3×9800 m³/h |
| Intake Inlet / Liquid Outlet | 35 / 25 mm |
Ruifujie is a specialized manufacturer and exporter of commercial and industrial refrigeration systems with over two decades of production experience. We specialize in producing scroll, screw, and semi-hermetic compressor units, alongside air-cooled condensers, evaporators, and modular cold storage solutions. Every system is built to international standards, undergoing strict pressure and leak testing before export. Partnering with global distributors and engineering contractors across Europe, the Americas, the Middle East, and Southeast Asia, Ruifujie delivers reliable thermal management systems built for performance and durability.
Backed by over 20 years of manufacturing expertise, Ruifujie provides double-layer air-cooled condensers engineered for compact HVAC and commercial refrigeration unit assemblies. Send us your project parameters—including target heat dissipation load, operating voltage, refrigerant choice, and order volume—and our technical engineers will issue a comprehensive project proposal and direct quotation within 8 hours.
|
|
