| Brand Name: | Ruifujie |
| Model Number: | FNV-300 |
| MOQ: | 1 |
| Price: | Discussed |
| Delivery Time: | 1 Month |
| Payment Terms: | T/T,Western Union |

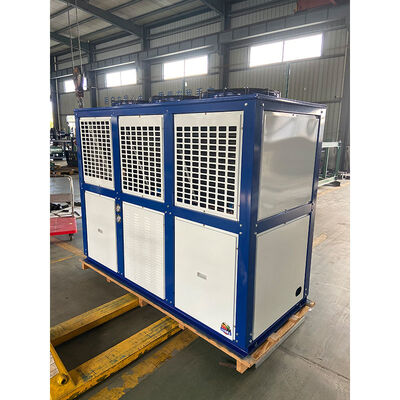

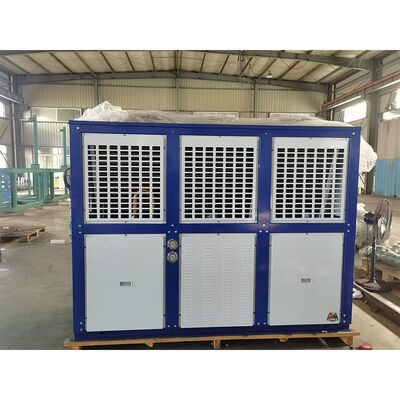

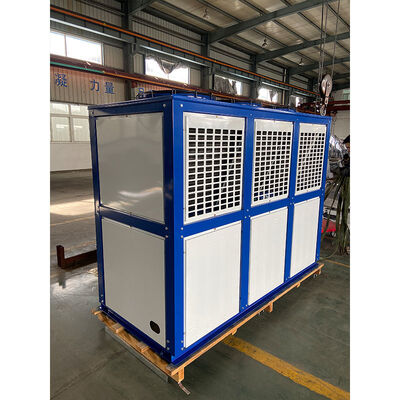

The FNV-300 features an advanced V-type double-layer vertical frame architecture engineered for commercial refrigeration condensing units, central HVAC chillers, and cold room rack systems. Delivering a nominal 99 kW heat exchange capacity across an expansive 300 m² heat dissipation surface, its upper V-shaped coil provides exceptional thermal efficiency, while the spacious lower compartment offers dedicated internal clearance for housing compressors and manifold accessories to save machinery room floor space.
To prevent system high-pressure trips under heavy summer ambient loads, the FNV-300 utilizes three φ600 mm external rotor axial fans, generating a high total air volume of 29,400 m³/h at 3×780 W fan motor power. Its 4×16 multi-circuit copper tube geometry optimizes fluid distribution for R404A, R507A, R134a, R407C, and R22 systems, lowering discharge pressures and energy consumption.
Constructed with inner-grooved seamless copper tubes mechanically expanded into high-grade alloy corrugated aluminum fins, the FNV-300 guarantees maximum heat transfer and mechanical durability. Every unit undergoes strict 3.0 MPa pneumatic underwater pressure tightness testing prior to factory dispatch to ensure zero refrigerant leakage. Its heavy-duty steel frame is finished with electrostatic powder coating to resist outdoor weathering, UV rays, and corrosion.
| Parameter | Value |
|---|---|
| Model | FNV-300 |
| Heat Exchange Capacity | 99 kW |
| Heat Exchange Area | 300 m² |
| Ring Number | 4x16 |
| Fan Power | 3×780 W |
| Air Volume | 3×9800 m³/h |
| Intake Inlet / Liquid Outlet | 35 / 25 mm |
Ruifujie is a specialized manufacturer and exporter of commercial and industrial refrigeration systems with over two decades of production experience. We specialize in producing scroll, screw, and semi-hermetic compressor units, alongside air-cooled condensers, evaporators, and modular cold storage solutions. Every system is built to international standards, undergoing strict pressure and leak testing before export. Partnering with global distributors and engineering contractors across Europe, the Americas, the Middle East, and Southeast Asia, Ruifujie delivers reliable thermal management systems built for performance and durability.
Backed by over 20 years of manufacturing expertise, Ruifujie provides double-layer air-cooled condensers engineered for compact HVAC and commercial refrigeration unit assemblies. Send us your project parameters—including target heat dissipation load, operating voltage, refrigerant choice, and order volume—and our technical engineers will issue a comprehensive project proposal and direct quotation within 8 hours.
|
|
