| Brand Name: | Ruifujie |
| Model Number: | FNV-320 |
| MOQ: | 1 |
| Price: | Discussed |
| Delivery Time: | 1 Month |
| Payment Terms: | T/T,Western Union |

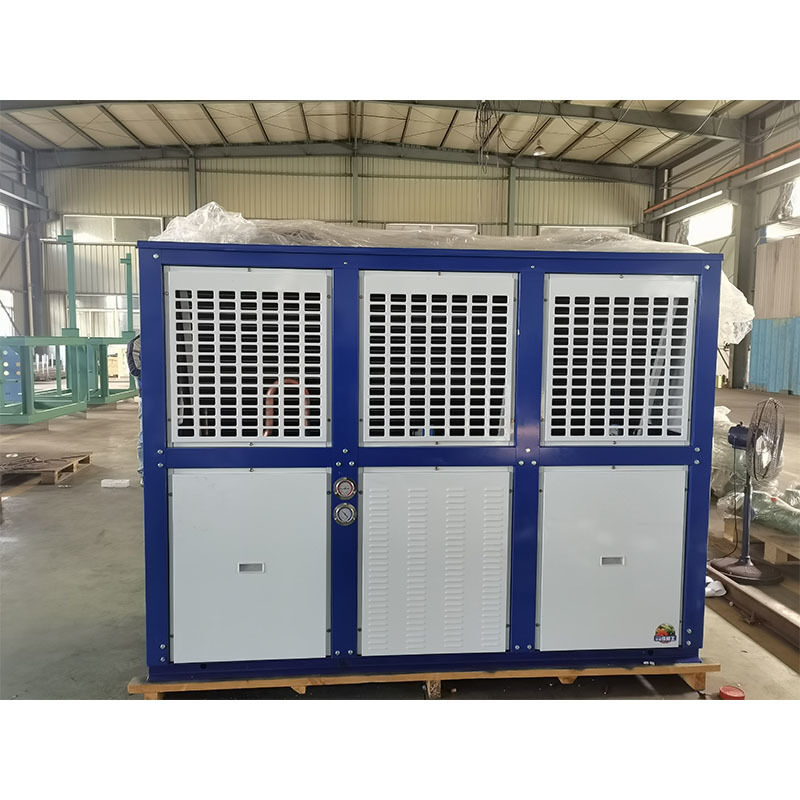

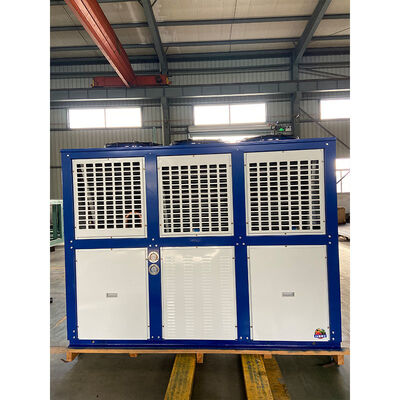

The FNV-320 features an advanced double-layer vertical frame architecture engineered for heavy-duty commercial refrigeration condensing units and multi-compressor racks. Delivering a nominal 105.6 kW heat dissipation capacity across an expansive 320 m² surface area, its upper V-type coil optimizes thermal efficiency, while the elevated lower base offers generous internal clearance for mounting semi-hermetic or scroll compressors, receivers, and piping manifolds to optimize machine room space.
Specifically engineered to maximize thermodynamic heat rejection for R22 refrigerant systems, the FNV-320 utilizes a 4×17 multi-circuit copper tube geometry for low pressure drop and high liquid subcooling. Powered by three φ600 mm external rotor axial fans producing a combined air volume of 29,400 m³/h at 3×780 W motor power, it delivers steady condensing pressures even under high ambient outdoor temperatures.
Manufactured with inner-grooved seamless copper tubing mechanically expanded into high-grade alloy corrugated aluminum fins, the FNV-320 guarantees maximum thermal conductivity and structural rigidity. Every unit undergoes strict 3.0 MPa pneumatic underwater pressure tightness testing to confirm absolute zero-leak security. Its heavy-duty steel casing is finished with electrostatic powder coating for superior resistance against outdoor weather exposure and corrosion.
| Parameter | Value |
|---|---|
| Model | FNV-320 |
| Heat Exchange Capacity | 105.6 kW |
| Heat Exchange Area | 320 m² |
| Ring Number | 4x17 |
| Fan Power | 3×780 W |
| Air Volume | 3×9800 m³/h |
| Intake Inlet / Liquid Outlet | 35 / 25 mm |
Ruifujie is a specialized manufacturer and exporter of commercial and industrial refrigeration systems with over two decades of production experience. We specialize in producing scroll, screw, and semi-hermetic compressor units, alongside air-cooled condensers, evaporators, and modular cold storage solutions. Every system is built to international standards, undergoing strict pressure and leak testing before export. Partnering with global distributors and engineering contractors across Europe, the Americas, the Middle East, and Southeast Asia, Ruifujie delivers reliable thermal management systems built for performance and durability.
The 17 parallel tube circuits divide high-volume R22 discharge gas evenly across the 4-row coil, preventing localized flow resistance and pressure drop while ensuring effective liquid subcooling before entering the expansion valve.

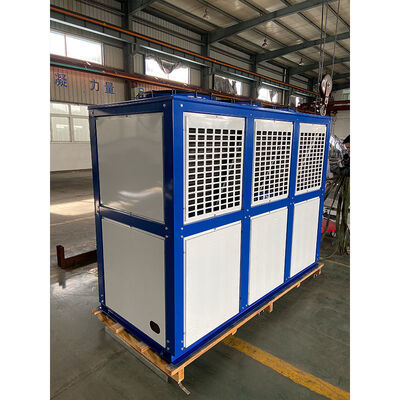

The elevated lower frame provides a 2630 × 1000 mm footprint with generous vertical clearance, enabling engineering contractors to mount open-type semi-hermetic compressor sets, suction accumulators, and electrical boxes directly underneath the coil.
The enlarged copper headers accommodate high mass-flow rates of refrigerant without inducing internal friction, accelerating liquid condensate drainage into the receiver and reducing high discharge pressure risks.
No MOQ for standard in-stock inventory; bulk production order MOQ is negotiable.
Standard in-stock samples ship within 3 working days, while complete batch orders are fulfilled in 10 to 15 working days.
Backed by over 20 years of manufacturing expertise, Ruifujie provides double-layer air-cooled condensers engineered for compact refrigeration and HVAC unit assemblies. Send us your project parameters—including target cooling load, operating voltage, refrigerant choice, and required order volume—and our technical team will deliver a complete technical proposal and direct quotation within 8 hours.
|
|
