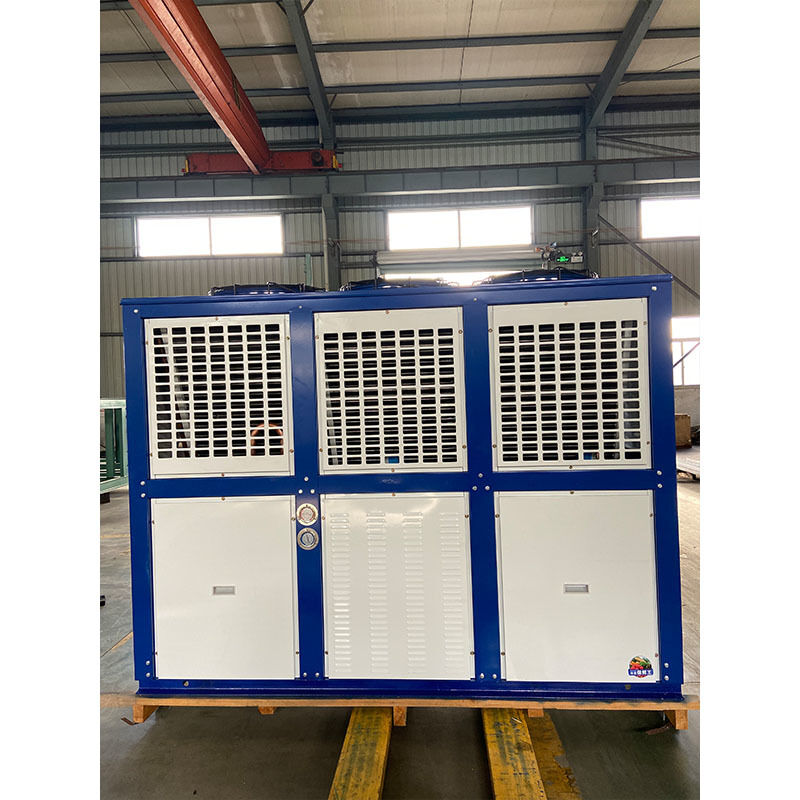

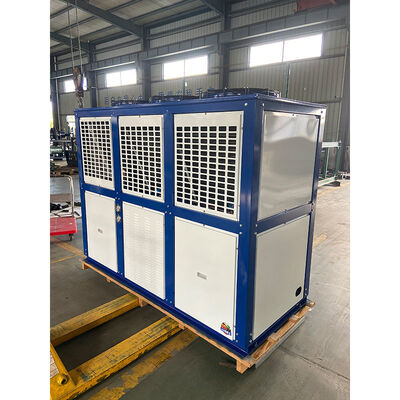

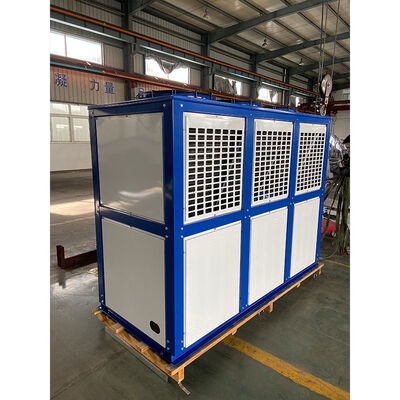

The FNV-350 features an advanced double-layer vertical frame architecture engineered for low-temperature commercial freezers and blast freezer condensing units. Delivering a nominal 115.5 kW heat exchange capacity across an expansive 350 m² heat transfer surface, its upper V-type coil provides superior thermal efficiency, while the spacious lower base offers dedicated internal clearance for mounting heavy compressors, liquid receivers, and manifold accessories to optimize floor space.

Engineered to handle high mass-flow rates in low-temperature freezer systems, the FNV-350 utilizes a 4×18 multi-circuit copper tube arrangement to minimize gas-side friction. Powered by three φ630 mm external rotor axial fans producing a total air volume of 33000 m³/h at 3×800 W power, it ensures rapid thermal rejection and steady liquid subcooling.

Built with inner-grooved seamless copper tubes mechanically expanded into high-grade alloy corrugated aluminum fins, the FNV-350 guarantees maximum heat conductivity and structural rigidity. Every unit undergoes strict 3.0 MPa pneumatic underwater pressure tightness testing to confirm absolute zero-leak safety. Its heavy-duty steel casing is finished with high-temperature electrostatic powder coating for long-term resistance against outdoor weathering and corrosion.

Ruifujie is a specialized manufacturer and exporter of commercial and industrial refrigeration systems with over two decades of production experience. We specialize in producing scroll, screw, and semi-hermetic compressor units, alongside air-cooled condensers, evaporators, and modular cold storage solutions. Every system is built to international standards, undergoing strict pressure and leak testing before export. Partnering with global distributors and engineering contractors across Europe, the Americas, the Middle East, and Southeast Asia, Ruifujie delivers reliable thermal management systems built for performance and durability.

The V-type configuration maximizes fin surface area within a compact machine frame width, drawing cool ambient air from both sides and discharging heat straight upward, preventing thermal stagnation around high-duty freezer compressors.

The enlarged header connections accommodate heavy mass-flow refrigerant vapor without causing high backpressure, accelerating condensate drainage into the receiver and maintaining stable suction/discharge ratios.

The elevated lower housing provides a spacious 2800 × 1000 mm footprint with heavy structural steel channels, enabling engineering contractors to mount semi-hermetic or scroll parallel compressor sets directly underneath the condenser.

Sample units are charged upfront, and the sample fee is refunded once the subsequent bulk order meets the required volume.

Orders are executed under standard FOB Shenzhen or EXW terms and settled in USD.

Backed by over 20 years of manufacturing expertise, Ruifujie provides double-layer air-cooled condensers engineered for heavy-duty freezer rooms and commercial refrigeration unit assemblies. Send us your project parameters—including target heat dissipation load, operating voltage, target refrigerant, and order volume—and our technical engineers will issue a comprehensive technical proposal and direct quotation within 8 hours.
