| Brand Name: | Ruifujie |
| Model Number: | FNU-32 |
| MOQ: | 1 |
| Price: | Discussed |
| Delivery Time: | 1 Month |
| Payment Terms: | T/T,Western Union |

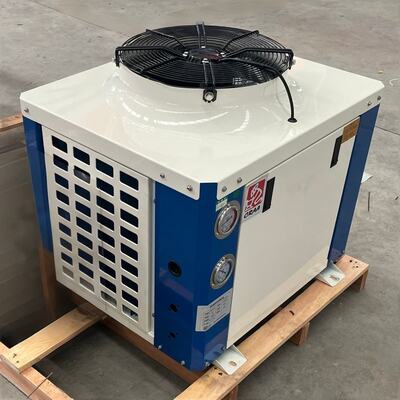

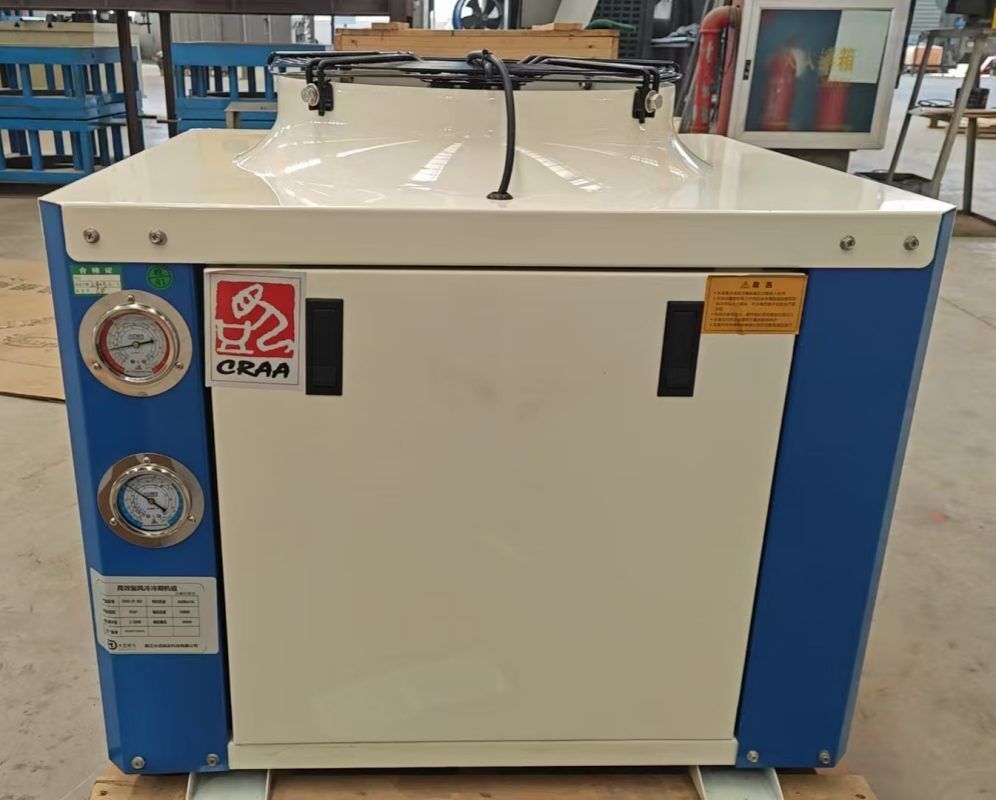

The FNU-32 is a compact U-shaped box-type air-cooled condenser engineered specifically for commercial refrigeration and air conditioning installations. Its slim, enclosed cabinet architecture maximizes the windward heat exchange surface within a compact 720 × 620 × 700 mm footprint, allowing near-wall mounting without requiring dedicated equipment room floor space. Delivering a nominal 10.6 kW heat dissipation capacity across a 32 m² heat transfer surface, it provides efficient cooling for small cold rooms and commercial chillers.
Equipped with a single 400 mm external rotor fan motor operating at 180 W, the FNU-32 produces a total air volume of 3,400 m³/h. The top air discharge configuration directs exhaust airflow vertically upward to prevent thermal recirculation while keeping operational sound levels low, making the unit well-suited for installation near noise-sensitive residential or commercial environments. The fan motor features IP55 waterproof protection and Class F insulation for reliable outdoor durability.
Constructed with seamless copper tubes mechanically expanded into high-grade hydrophilic or plain aluminum fins, the coil assembly delivers rapid thermal conductivity and extended operational service life. Every unit undergoes 3.0 MPa pneumatic underwater pressure tightness testing prior to dispatch to prevent refrigerant leaks under continuous high operating pressures. Its heavy-duty steel casing is finished with electrostatic powder coating to withstand outdoor weathering and atmospheric corrosion.
| Parameter | Value |
|---|---|
| Model | FNU-32 |
| Heat Exchange Capacity | 10.6 kW |
| Heat Exchange Area | 32 m² |
| Fan Power | 180 W |
| Air Volume | 3400 m³/h |
| Intake Inlet / Liquid Outlet | 19 / 12mm |
Ruifujie is a specialized manufacturer and exporter of commercial and industrial refrigeration systems with over two decades of production experience. Our advanced facility integrates precise heat exchanger manufacturing, compressor unit assembly, and automated testing lines. We specialize in producing scroll, semi-hermetic, screw, and reciprocating compressor units, alongside air-cooled condensers, evaporators, and modular cold storage solutions. Every system is built to international standards, undergoing strict pressure and leak testing before export. Partnering with global distributors and engineering contractors across Europe, the Americas, the Middle East, and Southeast Asia, Ruifujie delivers reliable thermal management systems built for performance and durability.
Backed by over 20 years of manufacturing expertise, Ruifujie provides compact U-shaped air-cooled condensers engineered for space-restricted HVAC and commercial refrigeration unit assemblies. Send us your project parameters—including required heat dissipation load, operating voltage, target refrigerant, and order volume—and our technical team will deliver a comprehensive proposal and direct quotation within 8 hours.
|
|
