| Brand Name: | Ruifujie |
| Model Number: | FNU-50 |
| MOQ: | 1 |
| Price: | Discussed |
| Delivery Time: | 1 Month |
| Payment Terms: | T/T,Western Union |

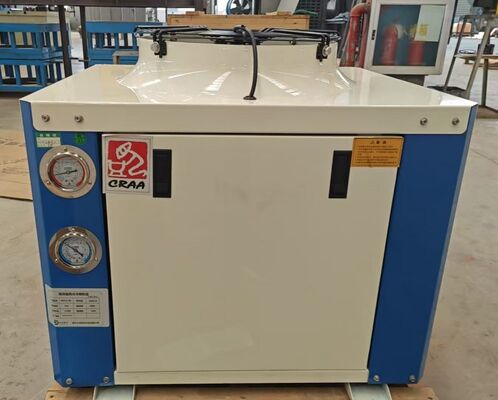

The FNU-50 (Single-Fan Version) utilizes a compact U-shaped box-type cabinet engineered specifically for heat pump air conditioner mainframes and commercial refrigeration systems. Delivering a nominal 16.6 kW heat exchange capacity across a 50 m² heat transfer surface, its space-saving enclosure enables near-wall outdoor mounting without occupying dedicated equipment room floor space.

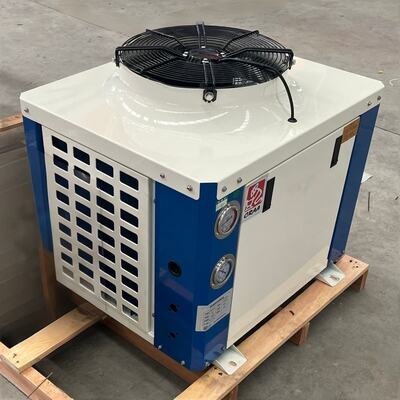

Powered by a single 450 mm external rotor axial fan motor operating at 250 W, the unit generates a total air volume of 4,800 m³/h. The top-discharge layout directs exhaust airflow vertically upward to prevent heat recirculation and avoid lateral wind obstruction, while low-vibration motor engineering ensures quiet operation in noise-sensitive locations. The fan motor is built with IP55 waterproof protection and Class F insulation.
Constructed with inner-grooved seamless copper tubing mechanically expanded into high-grade hydrophilic or plain aluminum fins, the coil assembly delivers high thermal conductivity and structural durability. Every unit undergoes mandatory 3.0 MPa pneumatic underwater pressure tightness testing prior to dispatch to guarantee complete leak-free safety. Its electrostatic powder-coated steel frame resists outdoor weather exposure, UV rays, and corrosion.
| Parameter | Value |
|---|---|
| Model | FNU-50 |
| Heat Exchange Capacity | 16.6 kW |
| Heat Exchange Area | 50 m² |
| Fan Power | 250 W |
| Air Volume | 4800 m³/h |
| Intake Inlet / Liquid Outlet | 19 / 12mm |
Ruifujie is a specialized manufacturer and exporter of commercial and industrial refrigeration systems with over two decades of production experience. Our advanced facility integrates precise heat exchanger manufacturing, compressor unit assembly, and automated testing lines. We specialize in producing scroll, semi-hermetic, screw, and reciprocating compressor units, alongside air-cooled condensers, evaporators, and modular cold storage solutions. Every system is built to international standards, undergoing strict pressure and leak testing before export. Partnering with global distributors and engineering contractors across Europe, the Americas, the Middle East, and Southeast Asia, Ruifujie delivers reliable thermal management systems built for performance and durability.
Backed by over 20 years of manufacturing expertise, Ruifujie provides compact U-shaped air-cooled condensers engineered for space-restricted heat pumps and commercial refrigeration unit assemblies. Send us your project parameters—including required heat dissipation load, operating voltage, target refrigerant, and order volume—and our technical team will deliver a comprehensive proposal and direct quotation within 8 hours.
|
|
