FNU-50 16.6KW Dual-Fan Commercial Roof Top Condenser for HVAC System
FNU-50 16.6KW Dual-Fan Commercial Roof Top Condenser for HVAC System
Place of Origin:China
Brand Name:Ruifujie
Model Number:FNU-50
Minimum Order Quantity:1
Price:Discussed
Standard Packaging:WOODEN CASE
Delivery Time:1 Month
Payment Terms:T/T,Western Union
Supply Ability:100PC
Product Details
Highlight:
16.6KW commercial roof top condenser
,dual-fan HVAC condenser
,air cooled condenser with warranty
Packing:
Woodcase Packing
Warranty:
1 Year
Refrigerant:
R134a, R404A, R507A, R407C
Heat Exchange Area:
50㎡
MOQ:
1Sets
Application:
Air Conditioner,Cold Room,Freezer, HVAC System
Fan Power:
2x129W
Heat Exchange Capacity:
16.6KW
Product Description
Detailed Specifications & Features
FNU-50 16.6KW Dual-Fan Commercial Roof Top Condenser for HVAC System
Product Advantages
Compact U-Shaped Footprint
The FNU-50 is a specialized U-shaped roof top condenser engineered for commercial refrigeration units, cold room setups, and building HVAC mainframes. Delivering a nominal 16.6 kW heat dissipation capacity across a 50 m² heat exchange surface, its space-saving 1060 × 650 × 800 mm box cabinet allows direct installation on outdoor roofs or elevated platforms without taking up internal machinery space.
Low Noise Dual-Fan Design
Designed to overcome thermal stagnation in restricted installation areas, this roof top condenser optimizes air movement through two 350 mm external rotor axial fan motors. Generating a total air volume of 4,600 m³/h at 2×129 W motor power, the top-discharge vertical air stream prevents hot exhaust air recirculation while maintaining quiet operation suitable for sound-sensitive commercial environments.
Weatherproof Structural Build
Constructed with inner-grooved seamless copper tubing mechanically expanded into high-grade hydrophilic or plain aluminum fins, the roof top condenser withstands intense solar heat, heavy precipitation, and atmospheric oxidation. Every unit undergoes strict 3.0 MPa pneumatic underwater pressure tightness testing to ensure complete leak-free security. The powder-coated steel housing provides long-term structural durability under all outdoor climate conditions.

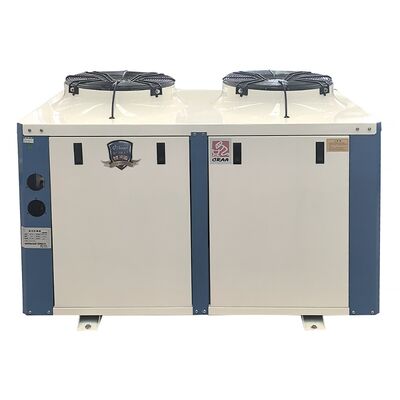

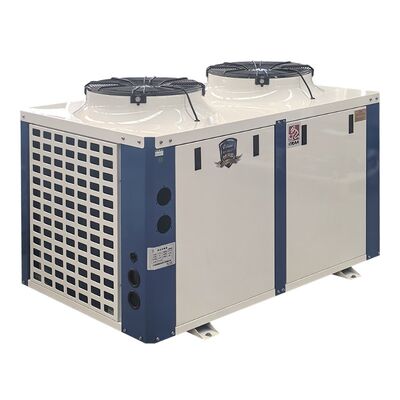

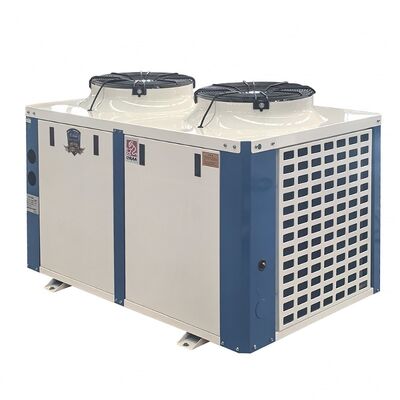

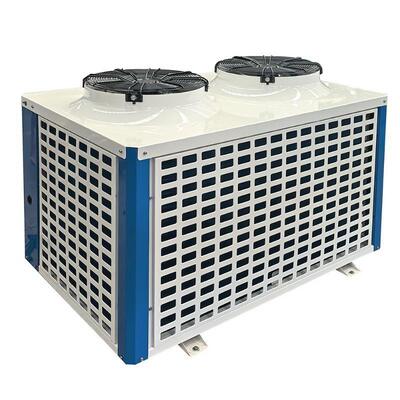

Product Images
Technical Specifications
| Parameter | Value |
|---|---|
| Model | FNU-50 |
| Heat Exchange Capacity | 16.6 kW |
| Heat Exchange Area | 50 m² |
| Fan Power | 2x129 W |
| Air Volume | 4600 m³/h |
| Intake Inlet / Liquid Outlet | 19 / 12mm |
Company Profile
Headquartered in a modernized production base, Ruifujie brings over 20 years of manufacturing excellence to the global cooling industry. We engineer an extensive line of scroll, reciprocating, rotary, semi-hermetic, and screw refrigeration compressors, alongside complete cold storage rooms, quick-freezing systems, and industrial ice makers. Tailored for B2B distributors and contractors worldwide, Ruifujie delivers end-to-end OEM/ODM customization. Our products are exported to major international markets across Europe, North America, the Middle East, and Asia, earning high acclaim for competitive factory pricing, robust durability, and reliable technical backing.
Packaging and Shipping
Frequently Asked Questions
Q1: How does the dual-fan arrangement enhance heat rejection stability compared to single-fan models?
The dual fan configuration distributes airflow evenly across the entire 50 m² U-shaped coil face, delivering consistent heat rejection across both sides of the heat exchanger while maintaining lower individual fan motor noise.
Q2: Can commercial compressors be mounted directly inside the FNU-50 cabinet frame?
Yes, the U-shaped cabinet housing features heavy-duty base mounting channels compatible with major commercial compressor brands including Bitzer, Dorin, and Frascold.
Q3: How does the top-discharge layout protect the unit against outdoor wind interference?
Exhaust air is blown vertically upward from the top grille, preventing strong horizontal crosswinds from blocking the fan draft and ensuring steady condensing pressures.
Q4: What OEM options are supported?
Supports OEM customization, including logos and nameplates.
Q5: What is the MOQ for commercial procurement?
No MOQ for standard in-stock inventory; bulk production order MOQ is negotiable.
Custom Configuration Service
With more than 20 years of specialized manufacturing experience, Ruifujie builds heavy-duty roof top condenser units engineered for demanding commercial cooling applications. Our engineering team provides flexible customization options, including specialized coil coatings, custom motor voltages, and precise structural fitting for various compressor racks. Please send us your project requirements—including cooling load, voltage, refrigerant, and order quantity—and we will deliver a tailored technical configuration and quote within 8 hours.
