FNU-80 Heavy Duty Top Air Outlet Refrigeration R407c Heat Pump Condenser

Name: FNU-80 Heavy Duty Top Air Outlet Refrigeration R407c Heat Pump Condenser
Brand: Shenzhen Ruifujie Technology Co., Ltd.
SKU: FNU-80
Price: 1.00 USD
Availability: InStock

Brand Name:	Ruifujie
Model Number:	FNU-80
MOQ:	1
Price:	Discussed
Delivery Time:	1 Month
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Fan Power:

2x250W

Packing:

Woodcase Packing

MOQ:

1Sets

Refrigerant:

R134a, R404A, R507A, R407C

Heat Exchange Capacity:

26.4KW

Heat Exchange Area:

80㎡

Application:

Air Conditioner,Cold Room,Freezer, HVAC System

Warranty:

1 Year

Packaging Details:

WOODEN CASE

Supply Ability:

100PC

Highlight:

FNU-80 R407c heat pump condenser

heavy duty air cooled condenser

top air outlet refrigeration condenser

Product Description

FNU-80 Heavy Duty Top Air Outlet Refrigeration R407c Heat Pump Condenser

Product Advantages

Compact U-Shaped Frame for Heat Pump Systems

The FNU-80 is a high-performance R407c heat pump condenser designed for commercial heating, air conditioning, and industrial refrigeration equipment. Delivering a nominal 26.4 kW heat exchange capacity across an 80 m² surface area, its compact box cabinet enables space-saving outdoor installation against walls or on equipment pads without requiring dedicated machinery room floor space.

Dual-Fan Top Discharge & Thermal Efficiency

Heat pump systems installed in tight outdoor locations often experience thermal short-circuiting and excessive operational noise. This dual-fan R407c heat pump condenser eliminates heat accumulation by utilizing two φ450 mm external rotor axial fans that deliver a total air volume of 9,600 m³/h at 2×250 W motor power. Its top-discharge vertical air configuration exhausts warm air upward, ensuring stable condensing pressures while keeping sound levels low.

Durable Construction & Certified Pressure Integrity

Manufactured with inner-grooved seamless copper tubes mechanically expanded into high-grade aluminum fins, the R407c heat pump condenser achieves fast heat rejection and long-term mechanical strength under demanding thermal cycles. Every unit undergoes strict 3.0 MPa pneumatic underwater pressure tightness testing to guarantee zero refrigerant leakage. Its electrostatic powder-coated steel housing provides robust protection against weather exposure, UV rays, and atmospheric oxidation.

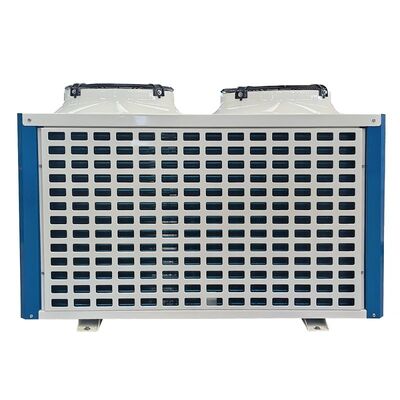

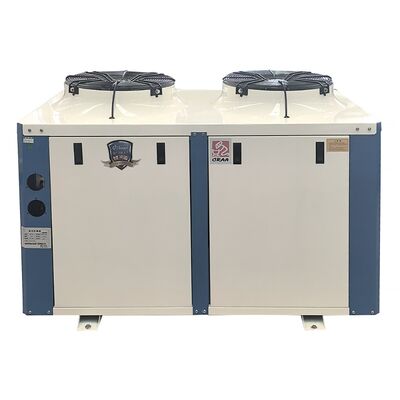

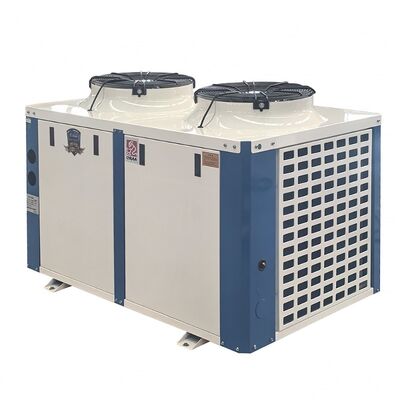

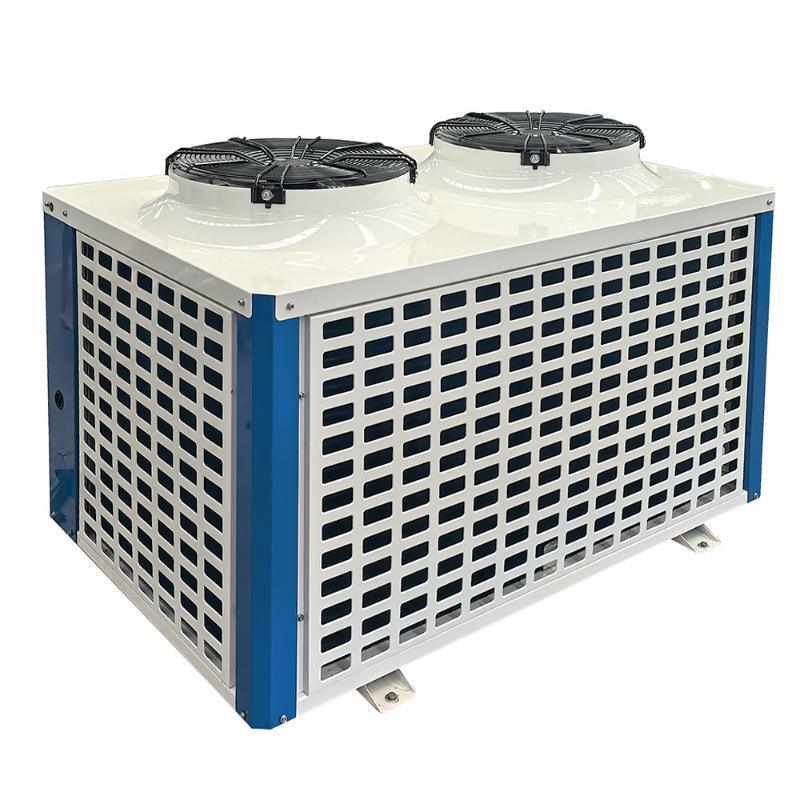

Product Images

Technical Specifications

Parameter	Value
Model	FNU-80
Heat Exchange Capacity	26.4 kW
Heat Exchange Area	80 m²
Fan Power	2x250 W
Air Volume	2x4800 m³/h
Intake Inlet / Liquid Outlet	22 / 16mm

Company Profile

Ruifujie brings over two decades of technical expertise to the manufacture and supply of high-grade commercial cooling equipment. Our modern facility produces scroll, reciprocating, rotary, screw, and semi-hermetic compressor units, along with air-cooled condensers, evaporators, and modular cold storage systems. Built for global B2B buyers, Ruifujie offers full OEM/ODM customization services backed by strict quality testing. Our products are exported across Europe, the Americas, the Middle East, and Asia, earning strong client satisfaction through reliable cooling performance and competitive factory value.

Packaging and Shipping

Frequently Asked Questions

Q1: How does the dual 450 mm fan motor setup optimize heat rejection for 26.4 kW systems?

A1: The two φ450 mm axial fan motors distribute airflow uniformly across the 80 m² U-shaped coil, delivering 9,600 m³/h air volume to maintain stable condensing pressures and prevent localized overheating.

Q2: Can commercial compressor units be installed directly inside the FNU-80 cabinet base?

A2: Yes, the U-shaped cabinet features reinforced internal mounting channels compatible with Bitzer, Dorin, Frascold, and other major commercial compressor brands.

Q3: Why is top air discharge advantageous for outdoor heat pump installations?

A3: Top discharge blows warm exhaust air vertically upward, preventing horizontal recirculation toward nearby walls or adjacent HVAC equipment, ensuring reliable heat dissipation in tight spaces.

Q4: What is Ruifujie's standard warranty coverage across all refrigeration products?

A4: All products across our entire catalog are backed by a standard 1-year comprehensive warranty.

Q5: What project parameters are required to receive a technical quote, and how fast is response time?

A5: Detailed quotations are issued within 8 hours upon receiving project specifications (cooling capacity, voltage, refrigerant, and operating conditions).

Engineering Project Quotation

Backed by over 20 years of manufacturing experience, Ruifujie delivers custom-engineered R407c heat pump condenser solutions tailored for commercial HVAC and refrigeration contractors. We provide full technical selection support, custom voltage options, and optimized coil circuiting for engineering projects. Please send us your project details—including target cooling capacity, operating voltage, refrigerant choice, and order volume—and our engineering team will issue a complete project proposal and direct quotation within 8 hours.
