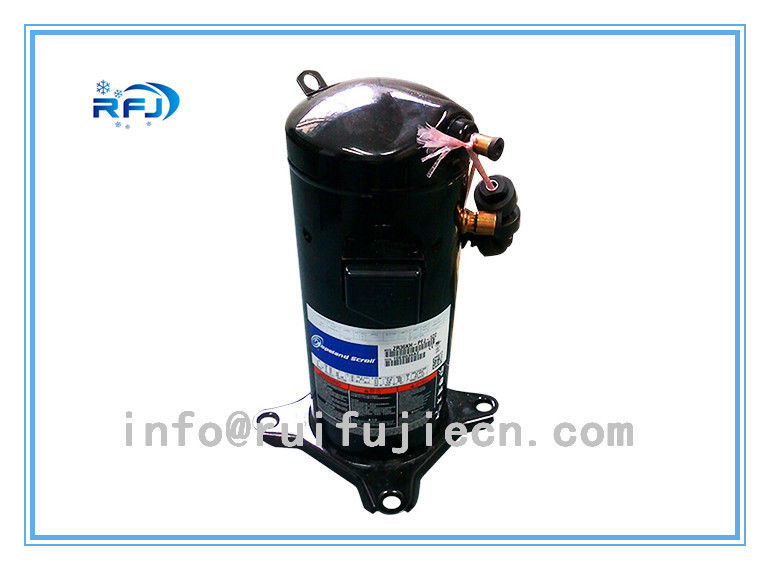

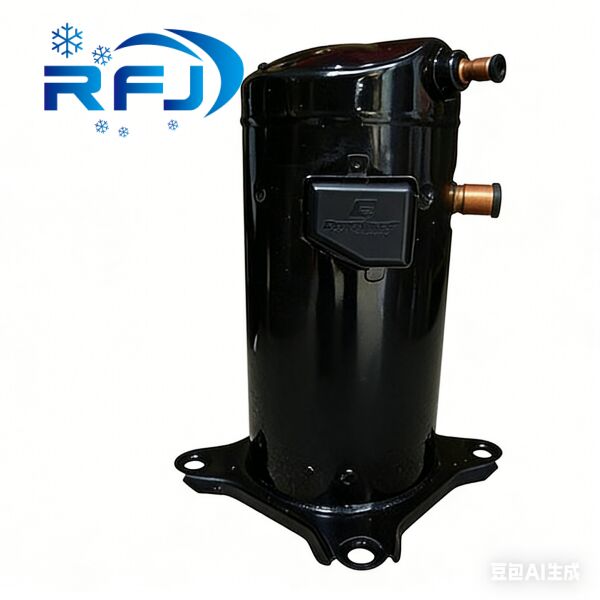

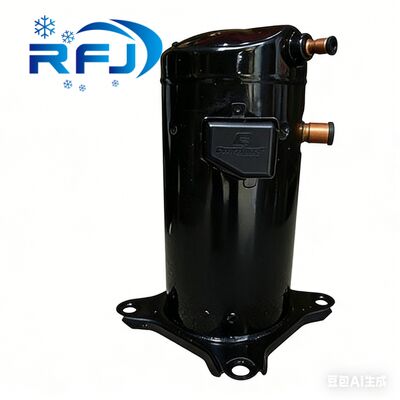

2.33HP Refrigeration Scroll Compressor ZR28K3-PFJ-522

Name: 2.33HP Refrigeration Scroll Compressor ZR28K3-PFJ-522
Brand: Shenzhen Ruifujie Technology Co., Ltd.
SKU: ZR28K3-PFJ-522
Price: 4,000.00 USD
Availability: InStock

Model Number:	ZR28K3-PFJ-522
MOQ:	1pcs
Price:	discussed
Delivery Time:	7-10 working days after receiving payment
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/UL

Piston Type:

Scroll

Power Source:

AC Power

Drive Mode:

Electric

Horse Power:

2.33HP

Configuration:

Stationary

Temperature:

Med/High Temperature

Mute:

Yes

Voltage:

220V

Weight:

27.3KG

Packaging Details:

Wooden case or 12 units in one pallet

Supply Ability:

5,000pcs per month

Highlight:

a c compressor

commercial refrigeration compressor

Product Description

2.33HP Refrigeration Scroll air conditionary Compressor R22 ZR28K3-PFJ-522 R22

ZR Compressor features:

Power: 1.5-15 HP
Med/High Temperature
Superior efficiency
Outstanding reliablity
Fewer moving parts
Very low noise/gas pulsation.

Description:

1. Models have : ZR16M3-TWD-522,ZR19M3-TWD-522,ZR47KC-TFD,ZR94KC-TFD,ZR125KC-TFD, ZR160KC-TFD,ZR61KC-TFD,ZR108KC-TFD,ZR144KC-TFD,ZR72KC-TFD ....

2. The are scroll compressors, can be used for air conditioning and refrigeration.

3. We have models made in China,Thailand and Belguim.

4. 12 units packing with one pallet.

With reliable performance, superior efficiency, quiet operation, and diagnostic capability, Emerson Climate Technologies offers the most advanced scroll technology available to support your commercial air-conditioning needs. With the widest R-410A selection available, the Scroll™ compressor offering ranges from 2–40 HP in singles and up to 80 HP in tandems.

Scroll Compressor 2–7 HP

Designed to power high-efficiency air conditioners with its improved scroll set and motor for higher reliability, lower noise, and compact frame;
Comes with Enhanced Vapor Injection (EVI) technology for increased heating capacity;
Allows for the best overall applied cost for high-efficiency systems.

Scroll Compressor 7–15 HP

Designed for superior R-410A efficiency and performance
Features Advanced Scroll Temperature Protection (ASTP) to guard the compressor from the scroll overheating
Light, compact design with smaller suction fittings for applied cost saving
R-410A and R-22/R-407C models in 7–15 HP (tandems up to 30 HP)

Scroll Compressor 20–40 HP

R-410A and R-22/R-407C models in 20–40 HP (tandems up to 80 HP)
Optimized for large rooftop and chiller applications
Designed to provide highest R-410A efficiency in this capacity range
Qualified for use in trio applications

We can supply more ZR models as follow:

(50HZ,R22)
Model No.	Horse power	Displacement	ARI Working conditions 7.2/54.4℃		N.W	Height	Connection size (Inch)		Oil injection
	HP	M³/h	Cooling capacity	input power	kg	mm	exhaust pipe (Inch)	Suction pipe (Inch)	Oil injection
			W	W			inner diameter	inner diameter	L
ZR34KH-PFJ	2.83	8.03	8204	2520	29	406	1/2	3/4	1.24
ZR36KH-PFJ	3	8.61	8878	2730	29	406	1/2	3/4	1.24
ZR47K3-PFJ	3.92	11.02	11427	3510	32	436	1/2	3/4	1.24
ZR34KH-TFD	2.83	8.03	8204	2480	28	406	1/2	3/4	1.24
ZR36KH-TFD	3	8.61	8878	2680	29	406	1/2	3/4	1.24
ZR47KC-TFD	3.92	11.16	11427	3480	30	436	1/2	3/4	1.36
ZR57KC-TFD	4.75	13.42	13654	4160	39	436	1/2	7/8	1.95
ZR61KC-TFD	5.08	14.37	14562	4430	36	457	1/2	7/8	1.95
ZR72KC-TFD	6	17.06	17609	5270	40	457	1/2	7/8	1.77
ZR81KC-TFD	6.75	19.17	19924	5810	40	462	3/4	7/8	1.77

compressors - air conDitioning (cont' D)
hBp compressor – three phase
Model NO.	Cooling Capacity (rating point 7.2)	nominal hp	Displ. cc/rev	nom current	Weight
Model NO.	Cooling Capacity (rating point 7.2)	nominal hp	Displ. cc/rev	FLa	(Kg)
ZR22K3PFJ522	5240	1.83	30.7	9.6	26
ZR28K3PFJ522	6970	2.33	39.2	12.9	27.3
ZR28K3EPFJ522	6970	2.33	39.2	12.9	27.3
ZR34K3PFJ522	8260	2.83	46.1	13.6	29.5
ZR34K3EPFJ522	8260	2.83	46.1	13.6	29.5
ZR36K3PFJ522	8850	3	49.5	16.4	29.5
ZR40K3PFJ522	9620	3.33	54.19	17.1	32
ZR42K3PFJ522	10140	3.5	56.8	17.1	30
ZR47K3PFJ522	11500	3.9	64.1	19.3	32.6
ZR68KCPFJ522	16800	5.75	93	28.2	43.5
ZR28K3TFD522	6970	2.33	39.2	5	26
ZR28K3ETFD522	6970	2.33	39.2	5	26
ZR36K3TFD522	8850	3	49.5	5.7	29.5
ZR40K3TFD522	9260	3.33	51.2	6.4	32
ZR47KCTFD522	11400	3.9	63.2	7.2	32.6
ZR47KCETFD522	11400	3.9	63.2	7.2	32.6
ZR48KCTFD522	11500	4.1	67.2	7.5	38
ZR48KCETFD522	11500	4.1	67.2	7.5	38
ZR54KCTFD522	13000	4.5	73.2	8.2	35.5
ZR57KCTFD522	13660	4.75	76.9	8.2	36
ZR57KCETFD522	13660	4.75	76	8.2	36
ZR61KCTFD522	14700	5	82.4	10	35.9
ZR61KCETFD522	14700	5	82.4	10	35.9
ZR68KCTFD522	16500	5.75	93	10	38.2
ZR72KCTFD522	17800	6	98	10	38.2
ZR72KCETFD522	17800	6	98	10	38.2
ZR81KCTFD522	19800	6.75	110.6	12	40
ZR81KCETFD522	19800	6.75	110.6	12	40
ZR94KCTFD522	23000	8	127.2	16.2	59
ZR94KCTFD523	23200	8	127.2	16.2	58.2
ZR94KCETFD523	23200	8	127.2	16.2	58.2
ZR108KCTFD522	26670	9	147.5	17.3	64
ZR108KCETFD523	26670	9	147.5	17.3	64
ZR108KCTFD523	26900	9	144.5	17.3	62.7
ZR125KCTFD522	30660	10	171.4	19.2	64
ZR125KCETFD523	31000	10	165.6	19.2	62.7
ZR125KCTFD523	31000	10	165.6	19.2	62.7
ZR144KCTFD522	34700	12	191.7	19.6	62.7
ZR144KCETFD523	34700	12	191.7	19.6	62.7
ZR144KCTFD523	34700	12	191.7	19.6	62.7
ZR16M3TWD551	37700	13	204.3	25	103.1
ZR16M3ETWD551	37700	13	204.3	17.3	103
ZR19M3TWD551	45900	15	241.9	23.8	112.1
ZR19M3ETWD551	45900	15	241.9	23.8	119

Phase	Model	Horse Power/HP	Displacement (m3/h)	ARI 7.2/54.4°C		Weight/Kg	Height /mm
Phase	Model	Horse Power/HP	Displacement (m3/h)	Cooling (W)	Input (W)	Weight/Kg	Height /mm
1 Phase	ZR16K3-PFJ	1.33	3.97	4010	1320	25.9	370.4
	ZR18K3-PFJ	1.5	4.37	4400	1440	25.9	370.4
	ZR20K3-PFJ	1.69	4.76	4890	1600	25.9	370.4
	ZR22K3-PFJ	1.83	5.34	5330	1730	25.9	382.8
	ZR24K3-PFJ	2	5.92	5920	1870	26.3	382.8
	ZR26K3-PFJ	2.17	6.27	6330	2000	25.9	382.8
	ZR28K3-PFJ	2.33	6.83	6910	2150	27.2	382.8
	ZR30K3-PFJ	2.5	7.3	7380	2290	28.6	405.5
	ZR32K3-PFJ	2.67	7.55	7760	2410	28.1	405.5
	ZR34K3-PFJ	2.83	8.02	8200	2520	29.5	405.5
	ZR36K3-PFJ	3	8.61	8790	2700	29.5	405.5
	ZR40K3-PFJ	3.33	9.43	9670	2970	29.9	419.3
	ZR42K3-PFJ	3.5	9.94	10100	3120	29.9	419.3
	ZR47K3-PFJ	3.92	11.16	11500	3530	30.4	436.6
3 Phase	ZR22K3-TFD	1.83	5.34	5330	1650	25.9	382.8
	ZR24K3-TFD	2	5.92	5920	1840	25.9	382.8
	ZR26K3-TFD	2.17	6.27	6330	1960	25.9	382.8
	ZR28K3-TFD	2.33	6.83	6910	2150	26.3	405.5
	ZR30K3-TFD	2.5	7.3	7380	2290	26.3	405.5
	ZR32K3-TFD	2.67	7.55	7760	2410	26.3	405.5
	ZR34K3-TFD	2.83	8.02	8200	2500	28.6	405.5
	ZR36K3-TFD	3	8.61	8790	2680	27.2	405.5
	ZR40K3-TFD	3.33	9.43	9670	2950	28.6	419.3
	2ZR42K3-TFD	3.5	9.94	10100	3090	28.6	419.3
	ZR45KC-TFD	3.75	10.73	11000	3380	28.6	436.3
	ZR46KC-TFD	3.83	10.95	11100	3390	34.9	456.9
	ZR47KC-TFD	3.92	11.16	11500	3500	28.6	436.3
	ZR49KC-TFD	4.08	11.45	11700	3600	35.4	456.9
	ZR54KC-TFD	4.5	12.73	12900	4030	35.4	456.9
	ZR57KC-TFD	4.75	13.42	13700	4160	35.4	456.9
	ZR61KC-TFD	5.08	14.34	14600	4430	35.8	456.9
	ZR68KC-TFD	5.75	16.18	16400	4970	38.1	456.9
	ZR72KC-TFD	6	17.05	17400	5250	38.1	456.9
	ZR81KC-TFD	6.75	19.2	19690	5830	40.9	462.4
	ZR84KC-TFD	7	19.75	20330	6140	56.7	495.3
	ZR94KC-TFD	8	22.14	22940	7000	58	495.3
	ZR108KC-TFD	9	25.15	26250	7830	72.6	533.4
	ZR125KC-TFD	10	28.77	30470	9060	78	533.4
	ZR90K3-TWD	7.5	20.9	21540	6620	91	542
	ZR11M3-TWD	9	24.9	25840	7805	91	542
	ZR12M3-TWD	10	28.8	29890	8955	92	542
	ZR16M3-TWD	13	35.6	37330	11175	98	557
	ZR19M3-TWD	15	42.1	45170	13400	112	596

Tags:

Products Details

Home Products

Refrigeration Scroll Compressor

2.33HP Refrigeration Scroll Compressor ZR28K3-PFJ-522

All Category

2.33HP Refrigeration Scroll Compressor ZR28K3-PFJ-522

Model Number:	ZR28K3-PFJ-522
MOQ:	1pcs
Price:	discussed
Packaging Details:	Wooden case or 12 units in one pallet
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/UL

Model Number:

ZR28K3-PFJ-522

Piston Type:

Scroll

Power Source:

AC Power

Drive Mode:

Electric

Horse Power:

2.33HP

Configuration:

Stationary

Temperature:

Med/High Temperature

Mute:

Yes

Voltage:

220V

Weight:

27.3KG

Minimum Order Quantity:

1pcs

Price:

discussed

Packaging Details:

Wooden case or 12 units in one pallet

Delivery Time:

7-10 working days after receiving payment

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

5,000pcs per month

Highlight:

a c compressor

commercial refrigeration compressor

Product Description

2.33HP Refrigeration Scroll air conditionary Compressor R22 ZR28K3-PFJ-522 R22

ZR Compressor features:

Power: 1.5-15 HP
Med/High Temperature
Superior efficiency
Outstanding reliablity
Fewer moving parts
Very low noise/gas pulsation.

Description:

1. Models have : ZR16M3-TWD-522,ZR19M3-TWD-522,ZR47KC-TFD,ZR94KC-TFD,ZR125KC-TFD, ZR160KC-TFD,ZR61KC-TFD,ZR108KC-TFD,ZR144KC-TFD,ZR72KC-TFD ....

2. The are scroll compressors, can be used for air conditioning and refrigeration.

3. We have models made in China,Thailand and Belguim.

4. 12 units packing with one pallet.

Scroll Compressor 2–7 HP

Designed to power high-efficiency air conditioners with its improved scroll set and motor for higher reliability, lower noise, and compact frame;
Comes with Enhanced Vapor Injection (EVI) technology for increased heating capacity;
Allows for the best overall applied cost for high-efficiency systems.

Scroll Compressor 7–15 HP

Designed for superior R-410A efficiency and performance
Features Advanced Scroll Temperature Protection (ASTP) to guard the compressor from the scroll overheating
Light, compact design with smaller suction fittings for applied cost saving
R-410A and R-22/R-407C models in 7–15 HP (tandems up to 30 HP)

Scroll Compressor 20–40 HP

R-410A and R-22/R-407C models in 20–40 HP (tandems up to 80 HP)
Optimized for large rooftop and chiller applications
Designed to provide highest R-410A efficiency in this capacity range
Qualified for use in trio applications

We can supply more ZR models as follow:

(50HZ,R22)
Model No.	Horse power	Displacement	ARI Working conditions 7.2/54.4℃		N.W	Height	Connection size (Inch)		Oil injection
	HP	M³/h	Cooling capacity	input power	kg	mm	exhaust pipe (Inch)	Suction pipe (Inch)	Oil injection
			W	W			inner diameter	inner diameter	L
ZR34KH-PFJ	2.83	8.03	8204	2520	29	406	1/2	3/4	1.24
ZR36KH-PFJ	3	8.61	8878	2730	29	406	1/2	3/4	1.24
ZR47K3-PFJ	3.92	11.02	11427	3510	32	436	1/2	3/4	1.24
ZR34KH-TFD	2.83	8.03	8204	2480	28	406	1/2	3/4	1.24
ZR36KH-TFD	3	8.61	8878	2680	29	406	1/2	3/4	1.24
ZR47KC-TFD	3.92	11.16	11427	3480	30	436	1/2	3/4	1.36
ZR57KC-TFD	4.75	13.42	13654	4160	39	436	1/2	7/8	1.95
ZR61KC-TFD	5.08	14.37	14562	4430	36	457	1/2	7/8	1.95
ZR72KC-TFD	6	17.06	17609	5270	40	457	1/2	7/8	1.77
ZR81KC-TFD	6.75	19.17	19924	5810	40	462	3/4	7/8	1.77

compressors - air conDitioning (cont' D)
hBp compressor – three phase
Model NO.	Cooling Capacity (rating point 7.2)	nominal hp	Displ. cc/rev	nom current	Weight
Model NO.	Cooling Capacity (rating point 7.2)	nominal hp	Displ. cc/rev	FLa	(Kg)
ZR22K3PFJ522	5240	1.83	30.7	9.6	26
ZR28K3PFJ522	6970	2.33	39.2	12.9	27.3
ZR28K3EPFJ522	6970	2.33	39.2	12.9	27.3
ZR34K3PFJ522	8260	2.83	46.1	13.6	29.5
ZR34K3EPFJ522	8260	2.83	46.1	13.6	29.5
ZR36K3PFJ522	8850	3	49.5	16.4	29.5
ZR40K3PFJ522	9620	3.33	54.19	17.1	32
ZR42K3PFJ522	10140	3.5	56.8	17.1	30
ZR47K3PFJ522	11500	3.9	64.1	19.3	32.6
ZR68KCPFJ522	16800	5.75	93	28.2	43.5
ZR28K3TFD522	6970	2.33	39.2	5	26
ZR28K3ETFD522	6970	2.33	39.2	5	26
ZR36K3TFD522	8850	3	49.5	5.7	29.5
ZR40K3TFD522	9260	3.33	51.2	6.4	32
ZR47KCTFD522	11400	3.9	63.2	7.2	32.6
ZR47KCETFD522	11400	3.9	63.2	7.2	32.6
ZR48KCTFD522	11500	4.1	67.2	7.5	38
ZR48KCETFD522	11500	4.1	67.2	7.5	38
ZR54KCTFD522	13000	4.5	73.2	8.2	35.5
ZR57KCTFD522	13660	4.75	76.9	8.2	36
ZR57KCETFD522	13660	4.75	76	8.2	36
ZR61KCTFD522	14700	5	82.4	10	35.9
ZR61KCETFD522	14700	5	82.4	10	35.9
ZR68KCTFD522	16500	5.75	93	10	38.2
ZR72KCTFD522	17800	6	98	10	38.2
ZR72KCETFD522	17800	6	98	10	38.2
ZR81KCTFD522	19800	6.75	110.6	12	40
ZR81KCETFD522	19800	6.75	110.6	12	40
ZR94KCTFD522	23000	8	127.2	16.2	59
ZR94KCTFD523	23200	8	127.2	16.2	58.2
ZR94KCETFD523	23200	8	127.2	16.2	58.2
ZR108KCTFD522	26670	9	147.5	17.3	64
ZR108KCETFD523	26670	9	147.5	17.3	64
ZR108KCTFD523	26900	9	144.5	17.3	62.7
ZR125KCTFD522	30660	10	171.4	19.2	64
ZR125KCETFD523	31000	10	165.6	19.2	62.7
ZR125KCTFD523	31000	10	165.6	19.2	62.7
ZR144KCTFD522	34700	12	191.7	19.6	62.7
ZR144KCETFD523	34700	12	191.7	19.6	62.7
ZR144KCTFD523	34700	12	191.7	19.6	62.7
ZR16M3TWD551	37700	13	204.3	25	103.1
ZR16M3ETWD551	37700	13	204.3	17.3	103
ZR19M3TWD551	45900	15	241.9	23.8	112.1
ZR19M3ETWD551	45900	15	241.9	23.8	119

Phase	Model	Horse Power/HP	Displacement (m3/h)	ARI 7.2/54.4°C		Weight/Kg	Height /mm
Phase	Model	Horse Power/HP	Displacement (m3/h)	Cooling (W)	Input (W)	Weight/Kg	Height /mm
1 Phase	ZR16K3-PFJ	1.33	3.97	4010	1320	25.9	370.4
	ZR18K3-PFJ	1.5	4.37	4400	1440	25.9	370.4
	ZR20K3-PFJ	1.69	4.76	4890	1600	25.9	370.4
	ZR22K3-PFJ	1.83	5.34	5330	1730	25.9	382.8
	ZR24K3-PFJ	2	5.92	5920	1870	26.3	382.8
	ZR26K3-PFJ	2.17	6.27	6330	2000	25.9	382.8
	ZR28K3-PFJ	2.33	6.83	6910	2150	27.2	382.8
	ZR30K3-PFJ	2.5	7.3	7380	2290	28.6	405.5
	ZR32K3-PFJ	2.67	7.55	7760	2410	28.1	405.5
	ZR34K3-PFJ	2.83	8.02	8200	2520	29.5	405.5
	ZR36K3-PFJ	3	8.61	8790	2700	29.5	405.5
	ZR40K3-PFJ	3.33	9.43	9670	2970	29.9	419.3
	ZR42K3-PFJ	3.5	9.94	10100	3120	29.9	419.3
	ZR47K3-PFJ	3.92	11.16	11500	3530	30.4	436.6
3 Phase	ZR22K3-TFD	1.83	5.34	5330	1650	25.9	382.8
	ZR24K3-TFD	2	5.92	5920	1840	25.9	382.8
	ZR26K3-TFD	2.17	6.27	6330	1960	25.9	382.8
	ZR28K3-TFD	2.33	6.83	6910	2150	26.3	405.5
	ZR30K3-TFD	2.5	7.3	7380	2290	26.3	405.5
	ZR32K3-TFD	2.67	7.55	7760	2410	26.3	405.5
	ZR34K3-TFD	2.83	8.02	8200	2500	28.6	405.5
	ZR36K3-TFD	3	8.61	8790	2680	27.2	405.5
	ZR40K3-TFD	3.33	9.43	9670	2950	28.6	419.3
	2ZR42K3-TFD	3.5	9.94	10100	3090	28.6	419.3
	ZR45KC-TFD	3.75	10.73	11000	3380	28.6	436.3
	ZR46KC-TFD	3.83	10.95	11100	3390	34.9	456.9
	ZR47KC-TFD	3.92	11.16	11500	3500	28.6	436.3
	ZR49KC-TFD	4.08	11.45	11700	3600	35.4	456.9
	ZR54KC-TFD	4.5	12.73	12900	4030	35.4	456.9
	ZR57KC-TFD	4.75	13.42	13700	4160	35.4	456.9
	ZR61KC-TFD	5.08	14.34	14600	4430	35.8	456.9
	ZR68KC-TFD	5.75	16.18	16400	4970	38.1	456.9
	ZR72KC-TFD	6	17.05	17400	5250	38.1	456.9
	ZR81KC-TFD	6.75	19.2	19690	5830	40.9	462.4
	ZR84KC-TFD	7	19.75	20330	6140	56.7	495.3
	ZR94KC-TFD	8	22.14	22940	7000	58	495.3
	ZR108KC-TFD	9	25.15	26250	7830	72.6	533.4
	ZR125KC-TFD	10	28.77	30470	9060	78	533.4
	ZR90K3-TWD	7.5	20.9	21540	6620	91	542
	ZR11M3-TWD	9	24.9	25840	7805	91	542
	ZR12M3-TWD	10	28.8	29890	8955	92	542
	ZR16M3-TWD	13	35.6	37330	11175	98	557
	ZR19M3-TWD	15	42.1	45170	13400	112	596

Tags:

Shenzhen Ruifujie Technology Co., Ltd.

Refrigeration Evaporator

DJ/Low Temperature Evaporator

Refrigeration Condensing Units

Screw Type Condensing Units

Air-Cooled Condensing Units

Water-Cooled Condensing Units

Refrigeration Scroll Compressor

Semi Hermetic Refrigeration Compressor

Carlyle Compressor

Scroll Compressor

Piston Compressor

Screw Type Compressor

Hitachi Scroll Compressor

Embraco Aspera Compressor

AC Rotary Compressor

Air Cooled Condenser

Refrigeration Parts

Industrial Cold Room

Flake Ice Machine

Block Ice Machine

Refrigeration Evaporator

DJ/Low Temperature Evaporator

Refrigeration Condensing Units

Screw Type Condensing Units

Air-Cooled Condensing Units

Water-Cooled Condensing Units

Refrigeration Scroll Compressor

Semi Hermetic Refrigeration Compressor

Carlyle Compressor

Scroll Compressor

Piston Compressor

Screw Type Compressor

Hitachi Scroll Compressor

Embraco Aspera Compressor

AC Rotary Compressor

Air Cooled Condenser

Refrigeration Parts

Industrial Cold Room

Flake Ice Machine

Block Ice Machine

products details

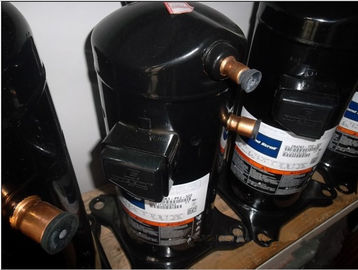

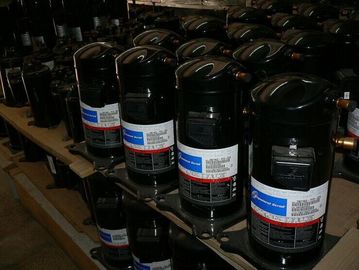

2.33HP Refrigeration Scroll Compressor ZR28K3-PFJ-522

a c compressor

commercial refrigeration compressor

Products Details

Refrigeration Evaporator

DJ/Low Temperature Evaporator

Refrigeration Condensing Units

Screw Type Condensing Units

Air-Cooled Condensing Units

Water-Cooled Condensing Units

Refrigeration Scroll Compressor

Semi Hermetic Refrigeration Compressor

Carlyle Compressor

Scroll Compressor

Piston Compressor

Screw Type Compressor

Hitachi Scroll Compressor

Embraco Aspera Compressor

AC Rotary Compressor

Air Cooled Condenser

Refrigeration Parts

Industrial Cold Room

Flake Ice Machine

Block Ice Machine

2.33HP Refrigeration Scroll Compressor ZR28K3-PFJ-522

a c compressor

commercial refrigeration compressor
