Product Details:
Payment & Shipping Terms:
|
Piston Type: | Scroll | Power Source: | AC Power |
---|---|---|---|
Drive Mode: | Electric | Horse Power: | 3HP |
Configuration: | Stationary | Temperature: | Med/High Temperature |
Mute: | Yes | Voltage: | 380V |
Weight: | 29KG | Oil Injection: | 1.24L |
Highlight: | copeland ac compressor,commercial refrigeration compressor |

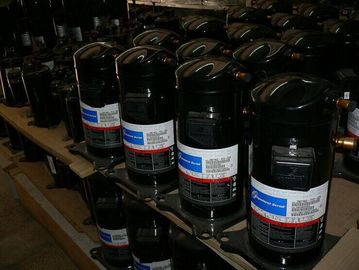

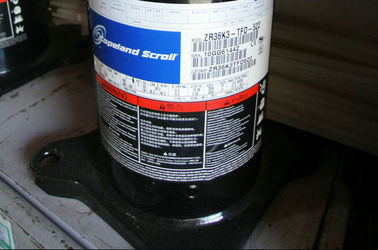

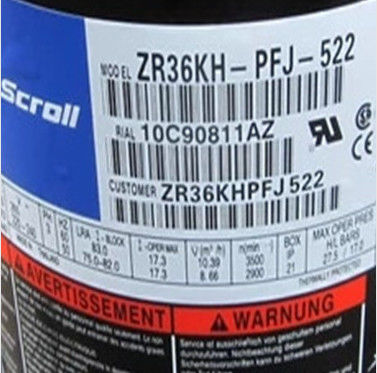

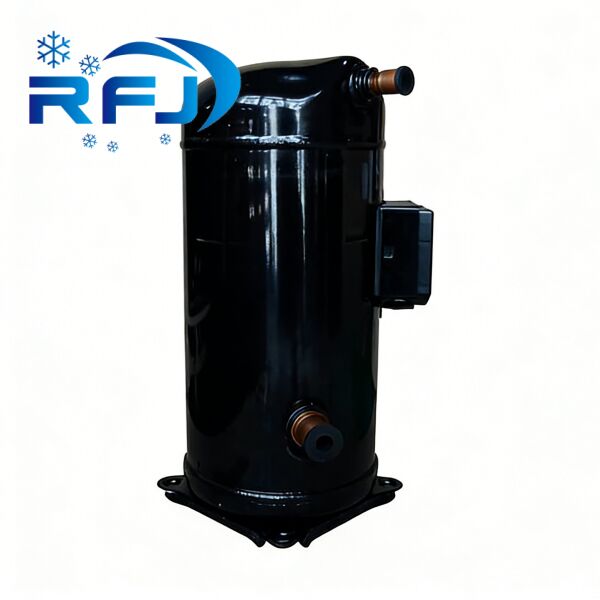

Copeland Refrigeration Scroll air conditionary Compressor R22 ZR36KH-TFD-522 R22 3HP 380V
Description:
1. Models have : ZR16M3-TWD-522,ZR19M3-TWD-522,ZR47KC-TFD,ZR94KC-TFD,ZR125KC-TFD, ZR160KC-TFD,ZR61KC-TFD,ZR108KC-TFD,ZR144KC-TFD,ZR72KC-TFD ....
2. The are Copeland scroll compressors, can be used for air conditioning and refrigeration.
3. We have models made in China,Thailand and Belguim.
4. 12 units packing with one pallet.
With reliable performance, superior efficiency, quiet operation, and diagnostic capability, Emerson Climate Technologies offers the most advanced scroll technology available to support your commercial air-conditioning needs. With the widest R-410A selection available, the Copeland Scroll™ compressor offering ranges from 2–40 HP in singles and up to 80 HP in tandems.
Copeland Scroll Compressor 2–7 HP
Copeland Scroll Compressor 7–15 HP
Copeland Scroll Compressor 20–40 HP
We can supply more ZR models as follow:
(50HZ,R22) | |||||||||
Model No. | Horse power | Displacement | ARI Working conditions 7.2/54.4℃ | N.W | Height | Connection size (Inch) |
Oil injection | ||
HP | M³/h | Cooling capacity | input power | kg | mm | exhaust pipe (Inch) |
Suction pipe (Inch) |
||
W | W | inner diameter | inner diameter | L | |||||
ZR34KH-PFJ | 2.83 | 8.03 | 8204 | 2520 | 29 | 406 | 1/2 | 3/4 | 1.24 |
ZR36KH-PFJ | 3 | 8.61 | 8878 | 2730 | 29 | 406 | 1/2 | 3/4 | 1.24 |
ZR47K3-PFJ | 3.92 | 11.02 | 11427 | 3510 | 32 | 436 | 1/2 | 3/4 | 1.24 |
ZR34KH-TFD | 2.83 | 8.03 | 8204 | 2480 | 28 | 406 | 1/2 | 3/4 | 1.24 |
ZR36KH-TFD | 3 | 8.61 | 8878 | 2680 | 29 | 406 | 1/2 | 3/4 | 1.24 |
ZR47KC-TFD | 3.92 | 11.16 | 11427 | 3480 | 30 | 436 | 1/2 | 3/4 | 1.36 |
ZR57KC-TFD | 4.75 | 13.42 | 13654 | 4160 | 39 | 436 | 1/2 | 7/8 | 1.95 |
ZR61KC-TFD | 5.08 | 14.37 | 14562 | 4430 | 36 | 457 | 1/2 | 7/8 | 1.95 |
ZR72KC-TFD | 6 | 17.06 | 17609 | 5270 | 40 | 457 | 1/2 | 7/8 | 1.77 |
ZR81KC-TFD | 6.75 | 19.17 | 19924 | 5810 | 40 | 462 | 3/4 | 7/8 | 1.77 |
