Product Details:
Payment & Shipping Terms:
|
| Product Name: | MT100/MTZ100 | Type: | Condensing Unit |
|---|---|---|---|
| Cooling Method: | Direct Cooling | Application: | Refrigeration |
| Brand: | Global | Cool Type: | Air-cooled |
| Structural Form: | Horizontal | Color: | Blue |
| Lubricated: | Lubricated | ||
| High Light: | ac condenser unit,air cooled condensing unit |
||

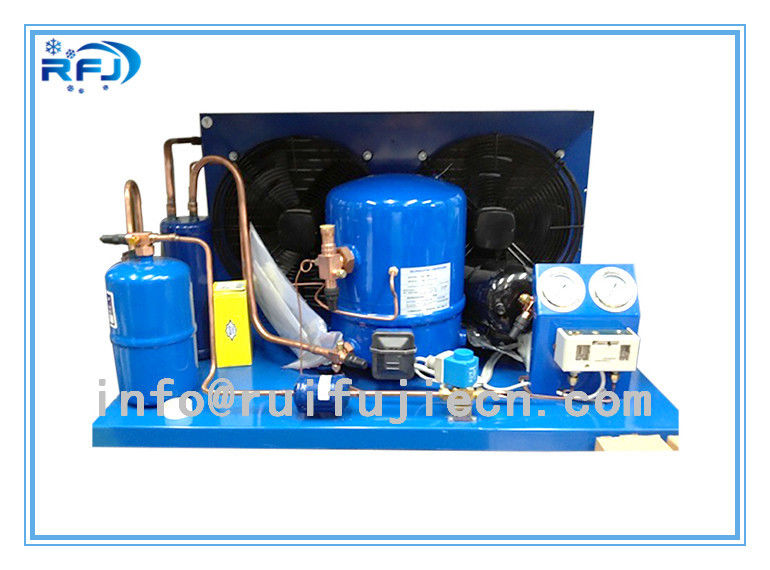

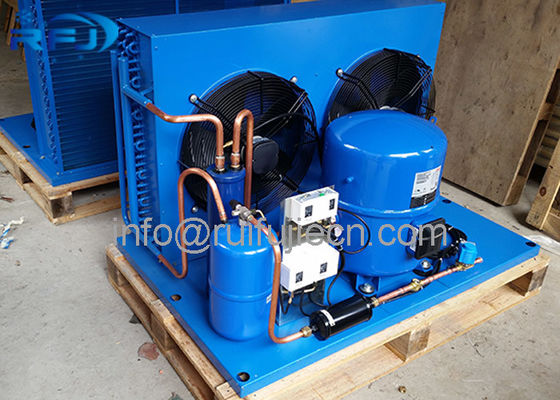

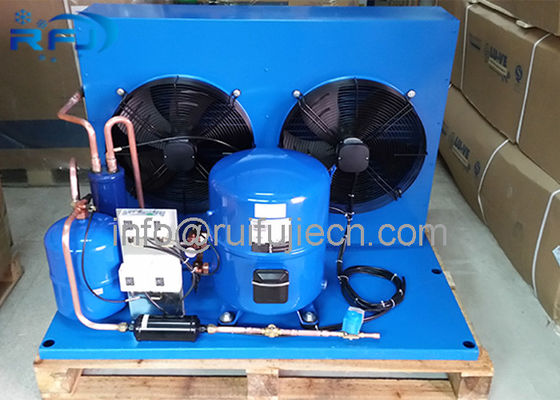

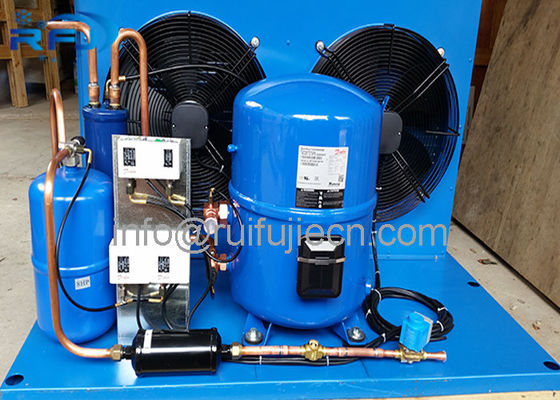

Maneurop Hermetic Compressor Condensing Unit
All Condensing Units are equipped with the compressors of Brand, Copeland Brand or Maneurope Brand
1.air cooled compressor condensing refrigeration equipment
2. good quality, reliable operation
HERMETIC CONDENSING UNIT
RANGE OF APPLICATION
1.refrigeration industry,cold room project
2.Agriculture,food, restaurant,chemical industry
3.We offer customized design and services
The Condensing Units are prefabricated, monoblock type, factory tested and easy to mount on Cold Room’s wall. The built-in electronic control panel with the microprocessor allows for manual setting of the desired temperature. It has the following components:
*An On-Off button for switching the unit on and off
*An On-Off Lighting button
*Three buttons for Temperature Setting
*A Manual Defrosting button
*A Digital Display showing the current room temperature.
All Condensing Units can be equipped with different kinds of refrigerants according to the clients' requirements.
| model | nominal | refrigerating | specifications of connecting tube | dimension(mm) | installation size(mm) | |||||
| HP | w | return gas(mm) | outlet(mm) | A | B | C | a | b | ||
| MT28/FH22H | 2.5 | 4700 | 12 | 10 | 870 | 650 | 570 | 820 | 420 | |
| MT36/FH33H | 3 | 6010 | 16 | 10 | 920 | 700 | 570 | 880 | 470 | |
| MT50/FH37.5H | 4 | 7400 | 22 | 12 | 920 | 700 | 570 | 880 | 470 | |
| MT64/FH49H | 5 | 9780 | 22 | 12 | 1020 | 700 | 670 | 980 | 460 | |
| MT80/FH70H | 6.7 | 12380 | 28 | 16 | 1220 | 850 | 1080 | 1180 | 610 | |
| MT100/FH80H | 8 | 14340 | 28 | 16 | 1220 | 850 | 1080 | 1180 | 610 | |
| MT125/FH100H | 10 | 19190 | 28 | 16 | 1440 | 850 | 1280 | 1400 | 610 | |
| MT160/FH130H | 13 | 24090 | 28 | 16 | 1220 | 850 | 1080 | 1180 | 610 | |
| MT28/FH18M | 2.5 | 2730 | 12 | 10 | 640 | 545 | 520 | 590 | 315 | |
| MT36/FH22M | 3 | 3560 | 16 | 10 | 870 | 650 | 570 | 820 | 420 | |
| MT50/FH33M | 4 | 4280 | 22 | 12 | 920 | 700 | 570 | 880 | 470 | |
| MT64/FH42M | 5 | 5690 | 22 | 12 | 1020 | 700 | 670 | 980 | 460 | |
| MT80/FH55M | 6.7 | 7330 | 28 | 16 | 1220 | 850 | 770 | 1180 | 610 | |
| MT100/FH70M | 8 | 8210 | 28 | 16 | 1220 | 850 | 1080 | 1180 | 610 | |
| MT125/FH80M | 10 | 11450 | 28 | 16 | 1440 | 850 | 1280 | 1400 | 610 | |
| MT160/FH115M | 13 | 14460 | 28 | 16 | 1440 | 850 | 1280 | 1400 | 680 | |
| model | nominal | refrigerating | specifications of connecting tube | cooling water consumption m3/h | dimension(mm) | installation size(mm) | ||||
| HP | w | return gas(mm) | outlet(mm) | A | B | C | a | b | ||
| MT36/WN03M | 3 | 4330 | 16 | 10 | 1.3 | 810 | 300 | 600 | 600 | 250 |
| MT50/WN05M | 4 | 5210 | 22 | 12 | 1.6 | 1010 | 350 | 720 | 780 | 300 |
| MT64/WN05M | 5 | 6740 | 22 | 12 | 2 | 1010 | 350 | 720 | 850 | 300 |
| MT80/WN08M | 6.7 | 8580 | 28 | 16 | 2.6 | 1080 | 350 | 720 | 890 | 300 |
| MT100/WN10M | 8 | 10210 | 28 | 16 | 3.2 | 1120 | 350 | 800 | 890 | 300 |
| MT125/WN10M | 10 | 13710 | 28 | 16 | 4 | 1120 | 350 | 800 | 990 | 300 |
| MT160/WN15M | 13 | 17300 | 28 | 16 | 5.2 | 1220 | 400 | 800 | 780 | 350 |
| MT36/WN05H | 3 | 6980 | 16 | 10 | 1.4 | 1010 | 350 | 720 | 780 | 300 |
| MT40/WN05H | 3.5 | 7570 | 22 | 12 | 1.6 | 1010 | 350 | 720 | 780 | 300 |
| MT50/WN06H | 4 | 8680 | 22 | 12 | 2 | 1010 | 350 | 720 | 850 | 300 |
| MT64/WN08H | 5 | 11320 | 22 | 12 | 2.6 | 1080 | 350 | 720 | 890 | 300 |
| MT80/WN10H | 6.7 | 14250 | 28 | 16 | 3 | 1120 | 350 | 800 | 890 | 300 |
| MT100/WN10H | 8 | 17120 | 28 | 16 | 3.2 | 1120 | 350 | 800 | 890 | 300 |
| MT125/WN15H | 10 | 22510 | 28 | 16 | 4.9 | 1220 | 400 | 800 | 990 | 350 |
| MT160/WN15H | 13 | 28250 | 28 | 16 | 5.2 | 1220 | 400 | 800 | 990 | 350 |
